IC693PBM200 Communication Modules Series 90-30 GE Fanuc

Product Overview

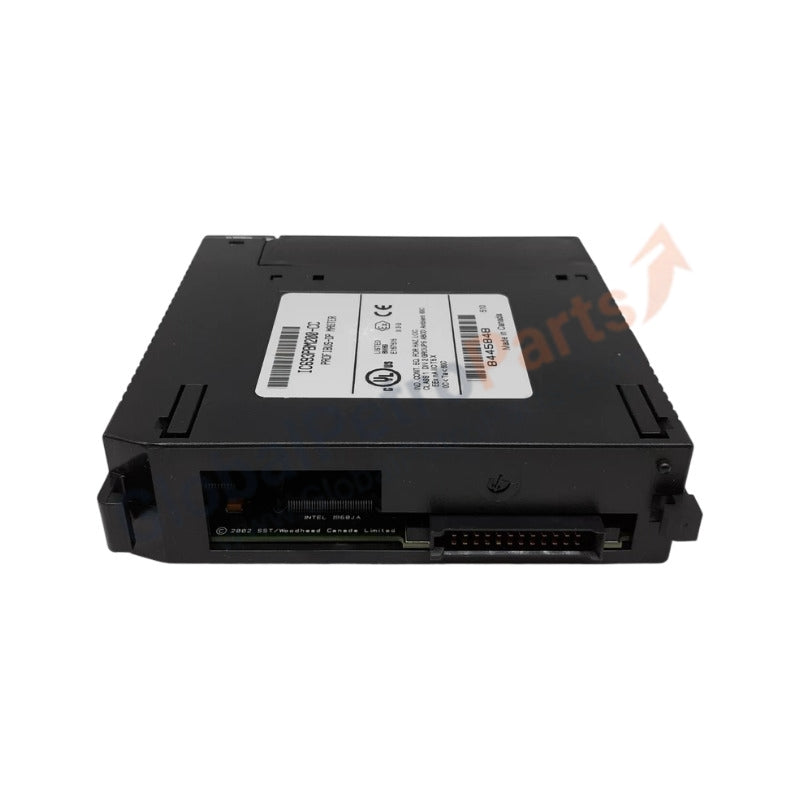

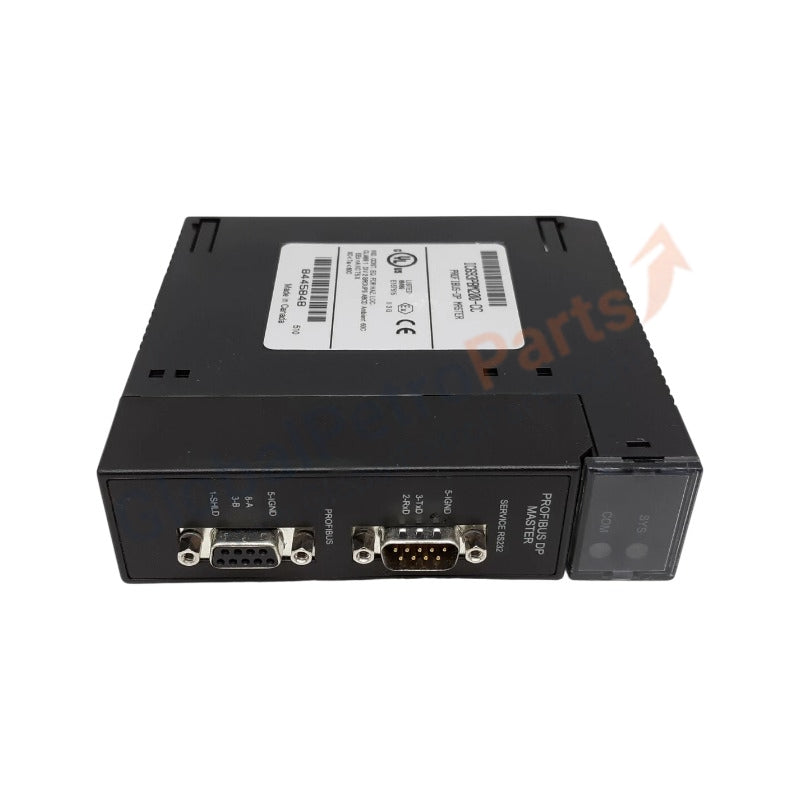

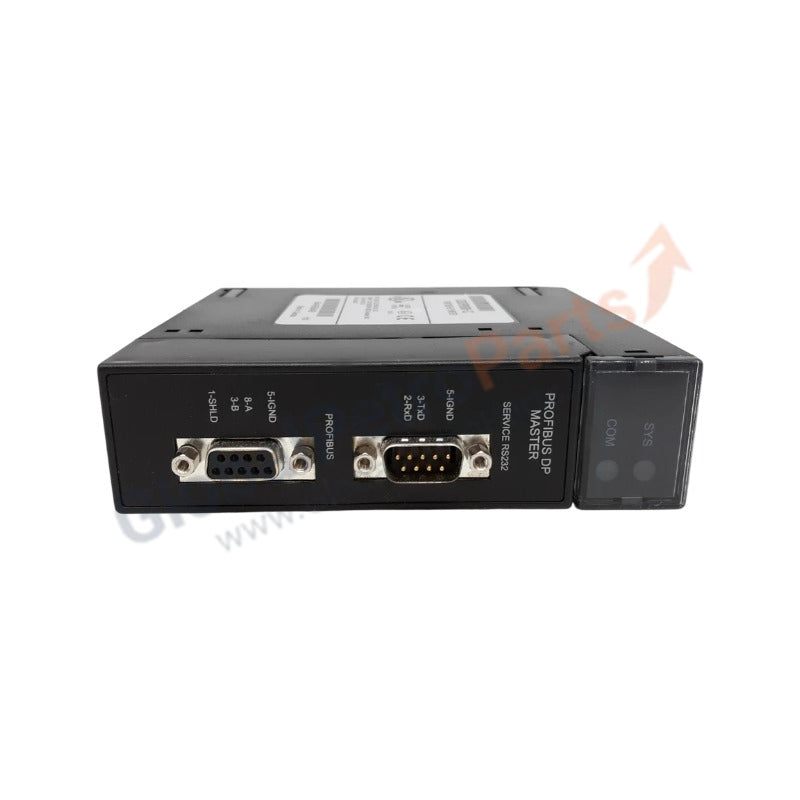

Configured for high-speed master subsystem operations in Series 90-30 architectures, the GE Fanuc IC693PBM200 (IC693PBM200 Profibus Master Module) provides direct physical/electrical execution. The hardware establishes deterministic cyclic data exchange between the host controller backplane and distributed remote slave nodes.

Hardware Specifications

Profinet and EtherNet/IP Deterministic Networks

The module interfaces with the Series 90-30 backplane to sustain rapid I/O density scaling options across localized and remote expansion drops. It enforces strict network execution profiles by mapping slave data memories directly to the controller CPU registers, maintaining low transmission latencies at communication velocities up to 12 Mbps. Firmware flash compatibility protocols guarantee structured diagnostics synchronizations, maintaining stable network links alongside concurrent Profinet and EtherNet/IP deterministic networks connected across the wider industrial facility framework.

Frequently Asked Questions

Q: Can the IC693PBM200 module be hot-swapped or replaced while the backplane rack is energized?

A: No. Complete electrical isolation of the Series 90-30 backplane is required prior to insertion or removal. Executing physical extraction with power applied can result in communication velocity configuration corruption, hardware bus disruption, or runtime faults within the primary CPU module.

Q: How is the node address and network configuration retained on this module?

A: The operational configuration, slave mapping matrices, and node assignments are downloaded directly from the programming software via the controller backplane and stored inside the module's non-volatile flash memory, eliminating the need for onboard hardware DIP switches.

Field Installation Guidelines

• Insert the module into any standard I/O slot of a Series 90-30 baseplate rack, ensuring the top and bottom structural hooks fully engage the alignment slots.
• Use a standard Profibus-approved shielded twisted-pair cable and a 9-pin sub-D connector with an integrated termination resistor switch.
• Enable the termination resistor switch exclusively on the physically first and last nodes of the segment to maintain signal integrity and avoid reflections.
• Route all communication cabling in separate wire ducts away from high-current AC power wiring and motor drive assemblies to eliminate electromagnetic interference.
