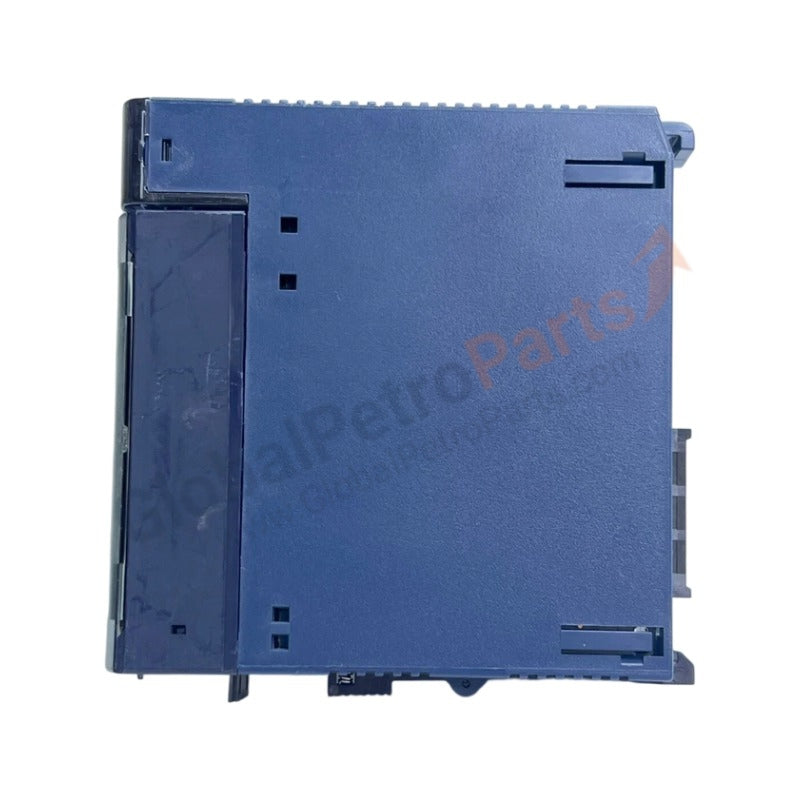

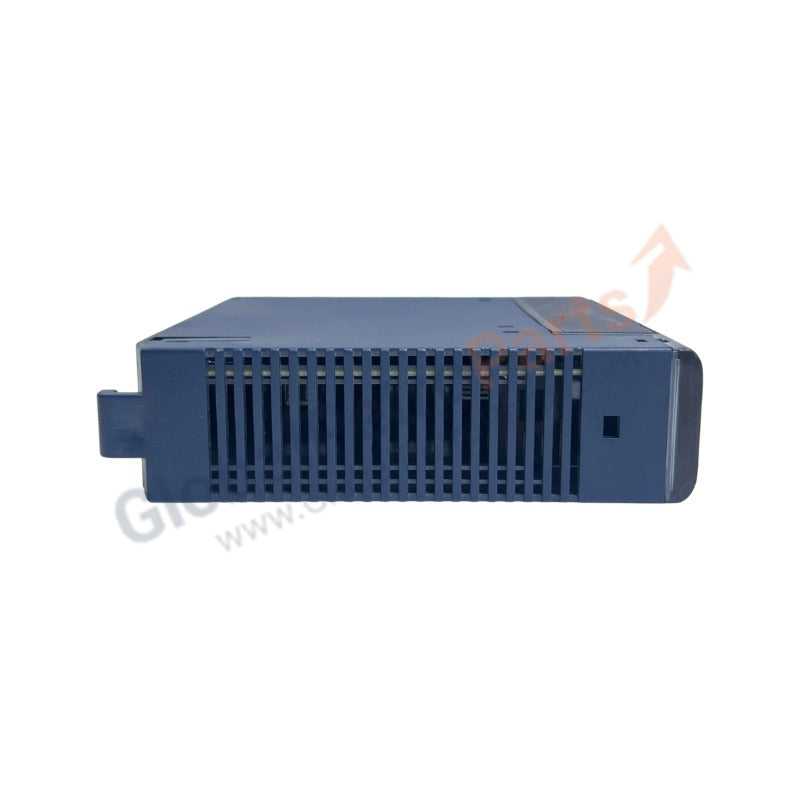

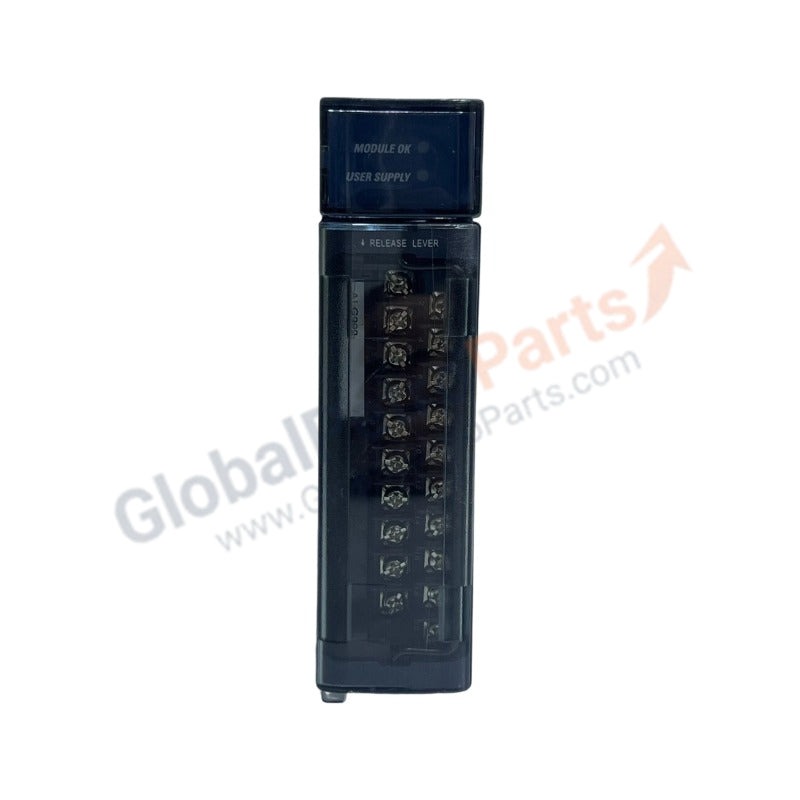

IC694ALG392 Analog Output Modules PACSystems RX3i GE Fanuc

Product Overview

The GE Fanuc IC694ALG392, also cataloged as the IC694ALG392 Analog Output Module, serves as the primary IC694ALG392 Analog Output Module utilized to execute multi-channel current and voltage signal generation across PACSystems RX3i platforms. The hardware processes digital data words from the central controller backplane into analog waveforms to modulate field positioners, actuators, and speed drives.

Hardware Specifications

Backplane Bus Communication Velocity and Density Scaling

The internal hardware registers map directly to the system rack controller, optimizing data update speeds via standard backplane communication paths. This interface ensures low latency during full-scale output transitions, synchronizing digital-to-analog command execution cycles with central memory loops. The module maintains firmware flash compatibility with legacy and current RX3i controllers, supporting I/O density scaling across expanded automation chassis using Profinet and EtherNet/IP deterministic networks without processing degradation.

Frequently Asked Questions

Q: Does this analog output module support hot-swap insertion and removal?

A: No. Complete rack power isolation or dedicated bus isolation is required before removing or inserting the hardware. Removing this unit while the backplane is active can interrupt internal bus communications and induce unexpected diagnostic errors in the central controller assembly.

Q: How is the choice between current and voltage output modes configured?

A: Channel modes are defined via the configuration software platform. Field wiring must match the specified software setting by landing conductors on the dedicated voltage or current terminals of the high-density front connector assembly.

Field Installation Guidelines

• Secure the module into the universal backplane slot, verifying that the top and bottom chassis latches snap fully into the retention rail.
• Route all low-voltage analog output wires in dedicated, grounded metal conduits separated from high-voltage AC or motor drive cabling blocks.
• Terminate all signal cable shields at a single point, preferably on the central enclosure ground bar, to minimize high-frequency noise insertion on the 4-20 mA output loops.
• Wire an external 24 VDC power supply to the designated terminal pins to feed the internal digital-to-analog converter sub-layers.
