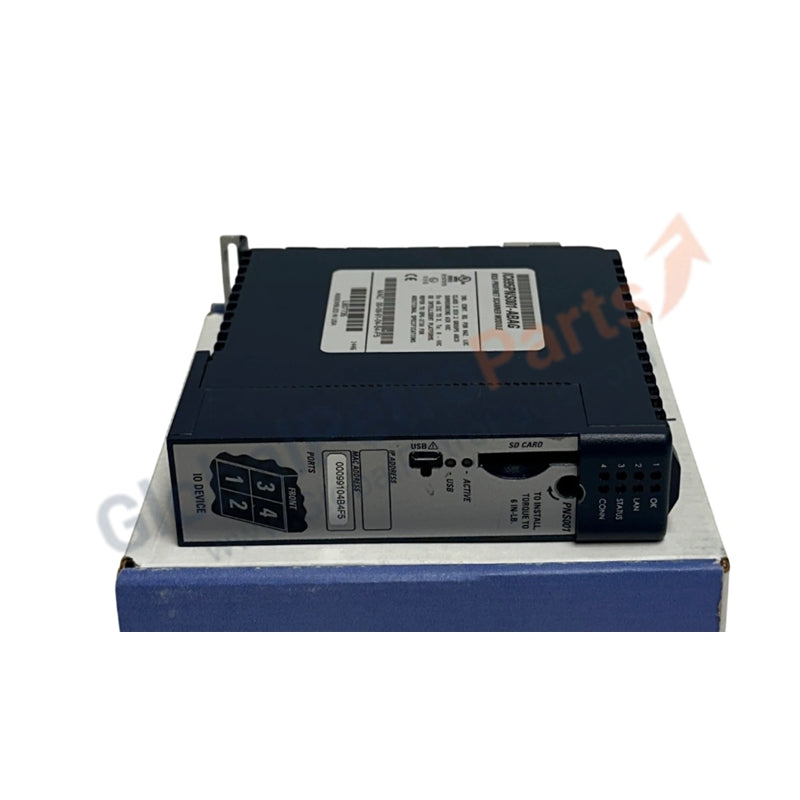

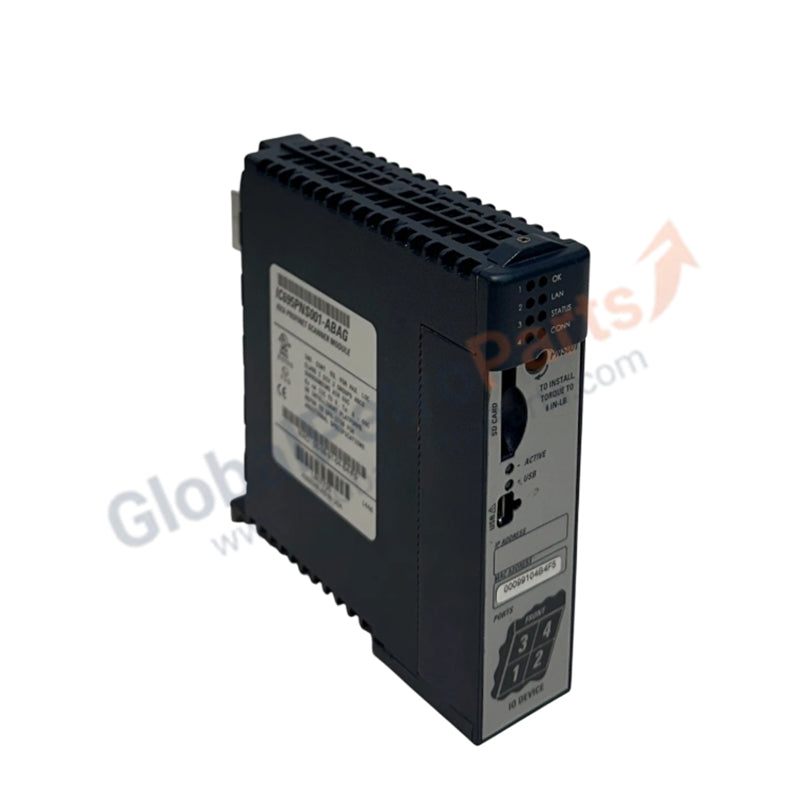

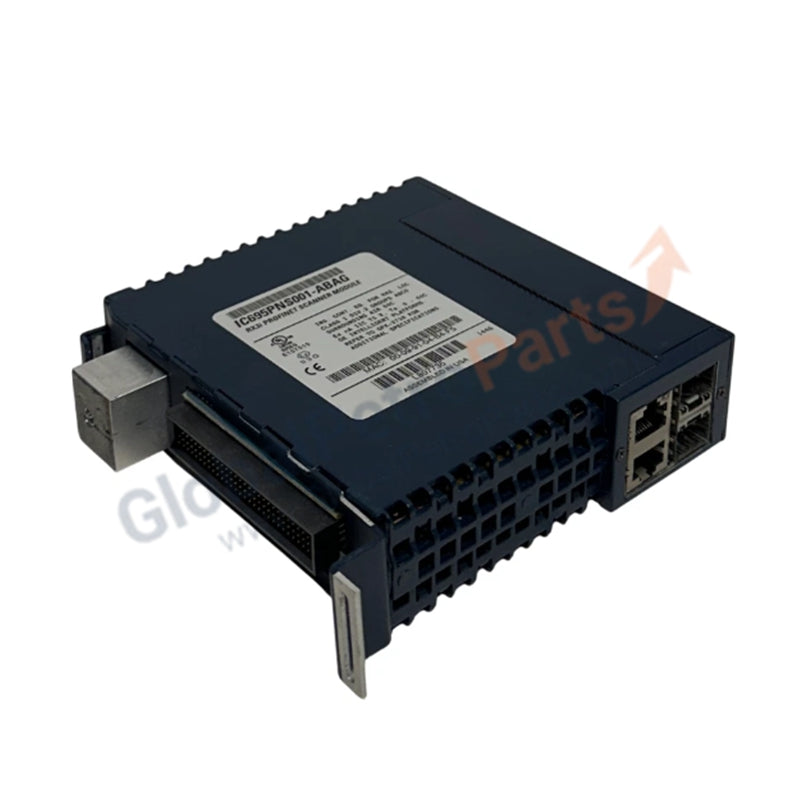

IC695PNS001 | GE Fanuc PACSystems RX3i 4-Port PROFINET Scanner Interface Module

Module Overview

The IC695PNS001 is a high-performance PROFINET scanner module designed to expand the distributed I/O capabilities of the PACSystems RX3i platform. This single-slot module acts as a remote head in an RX3i Universal Backplane, allowing a centralized RX3i CPU (acting as the PROFINET Controller) to manage I/O modules across a high-speed Ethernet network. Featuring a built-in four-port Ethernet switch, the IC695PNS001 supports flexible networking architectures and simplifies the integration of remote racks without the need for external industrial switches.

Detailed Technical Specifications

The IC695PNS001 draws significant power from the backplane to manage high-speed data translation between the PROFINET protocol and the RX3i I/O bus.

• Module Type: PROFINET Scanner (Remote I/O Head)

• Backplane Support: RX3i Universal Backplane (IC695 series)

• Ethernet Ports: Four (4) 10/100/1000 Mbps Switched Ports (RJ-45)

• Network Topologies: Linear, Star, Daisy-chain, and Redundant Media (MRP)

• Configuration Port: One (1) Micro USB port for local firmware/setup

• Internal Power Draw (5V): 1.1 Amperes at +5 VDC

• Internal Power Draw (3.3V): 1.2 Amperes at +3.3 VDC

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Maximum Sub-slots: Supports a full rack of discrete, analog, and specialty modules

• Module Width: Single-slot occupancy

• Status Indicators: LEDs for Power, Module OK, Port Link/Activity, and System Faults

Networking and Redundancy Capabilities

The IC695PNS001 is engineered for high-availability environments. Its four switched ports allow for easy implementation of the Media Redundancy Protocol (MRP), creating a "ring" topology that prevents system downtime in the event of a single cable failure. The module utilizes the PROFINET I/O standard to provide deterministic communication with the host controller, ensuring that remote I/O data is updated with the same precision as local rack data.

Installation and Configuration

This scanner module must be installed in a Universal Backplane and requires a local Power Supply (such as the IC695PWR400). Configuration is handled within Proficy Machine Edition, where the user defines the I/O modules residing in the scanner's rack. The Micro USB port on the front faceplate provides a convenient point for technical personnel to perform firmware updates or initial IP address assignments without requiring a network connection.

Technical FAQ

Can the IC695PNS001 function as a standalone PLC?

No. The IC695PNS001 is a "Scanner" (Slave/Device), not a "Controller" (Master). It requires a PROFINET Controller module, such as the IC695PNC001 or a CPE330 CPU, located in a separate master rack to manage its logic and data.

What is the purpose of the 4-port switch if I only have one network cable?

The integrated switch allows for "Daisy Chaining" to the next remote rack or connecting local HMI devices directly to the scanner's rack without adding external network hardware, significantly reducing installation costs.

Does this module support fiber optic connections?

The IC695PNS001 features standard RJ-45 copper ports. For fiber optic requirements, an external media converter or a SFP-based PROFINET module would be necessary.
