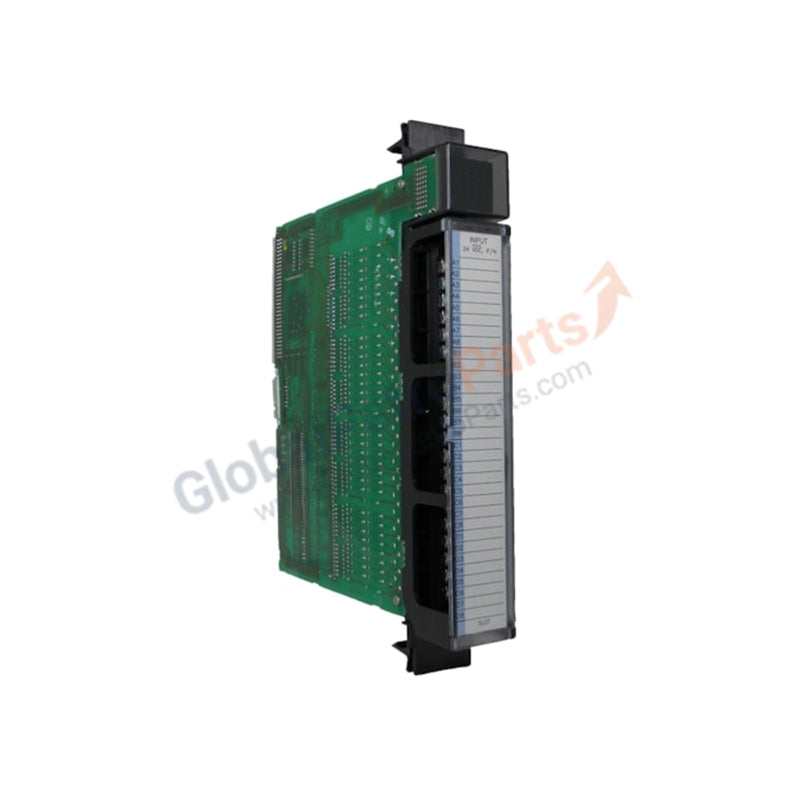

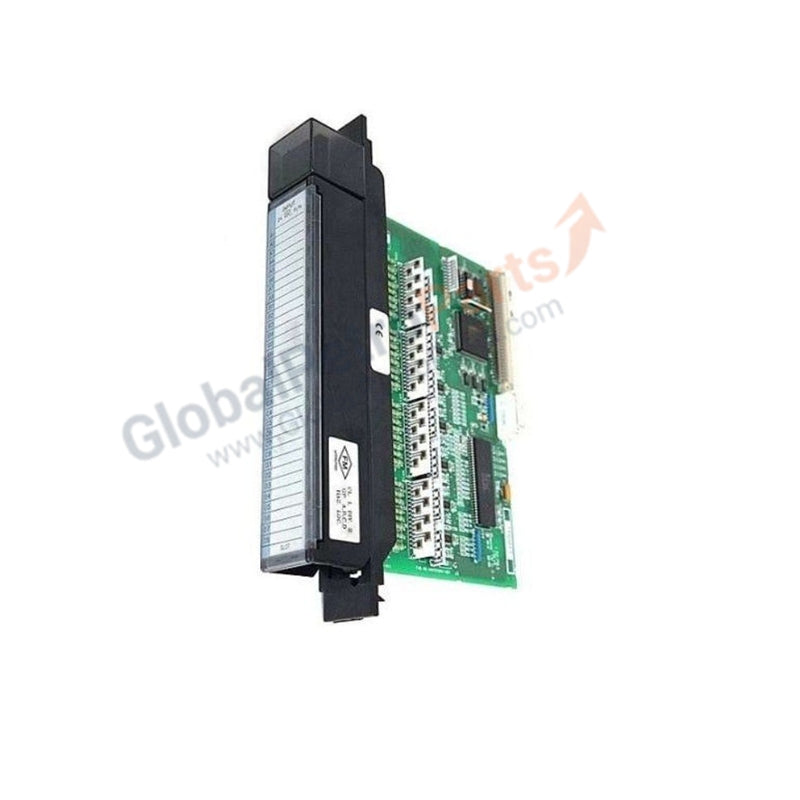

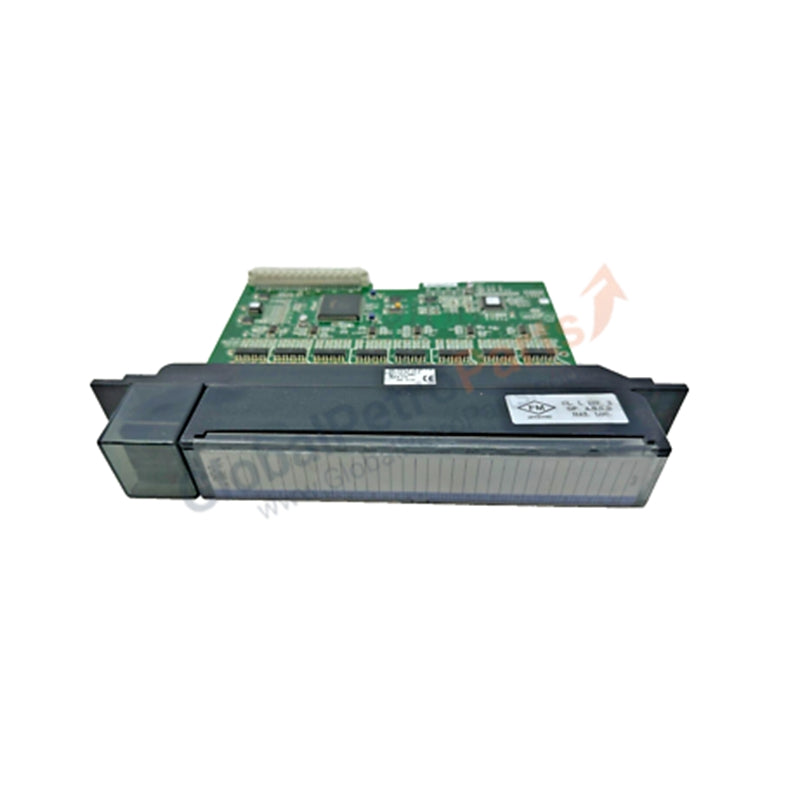

IC697MDL653 | GE Fanuc | 24VDC Discrete Input Module

Product Description

Overview

The GE Fanuc IC697MDL653 is a 32-point discrete input module designed for the Series 90-70 PLC platform. It provides reliable DC input signal acquisition for industrial control systems requiring high channel density, flexible logic configuration, and robust electrical isolation.

As part of the legacy but widely deployed Series 90-70 family, the IC697MDL653 is commonly used in process control, power generation, and heavy industrial automation environments where long-term system stability and compatibility are critical.

Functional Description

The IC697MDL653 accepts 24 VDC discrete input signals from field devices such as pushbuttons, limit switches, proximity sensors, and relay contacts. The module supports both positive and negative logic wiring and offers selectable input filtering to accommodate fast or noisy signals.

Each input channel is electrically isolated to protect the PLC backplane from field-side faults and electrical noise, ensuring stable operation in harsh industrial environments.

Technical Specifications
