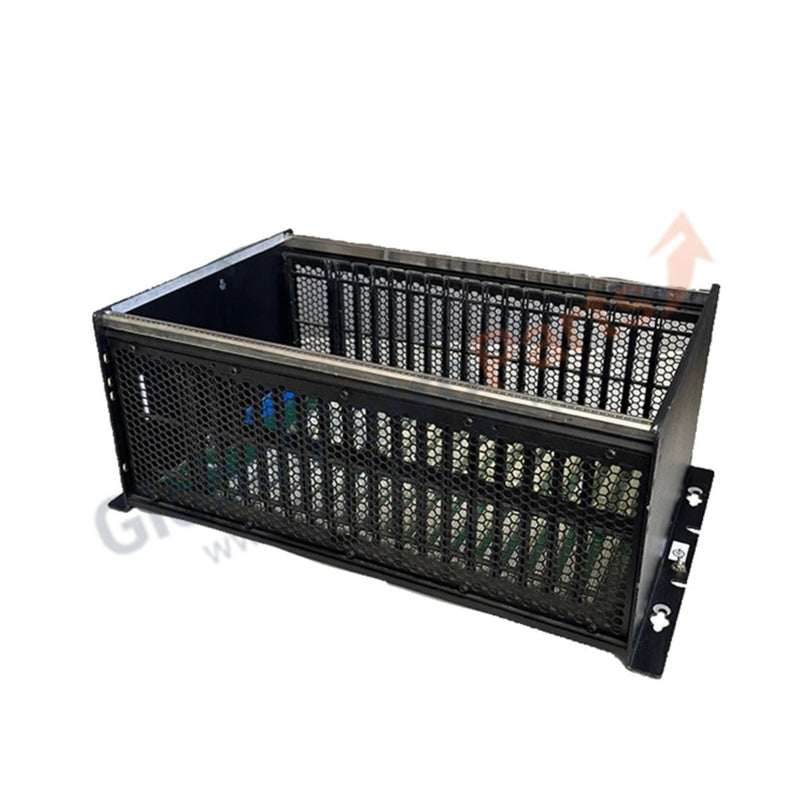

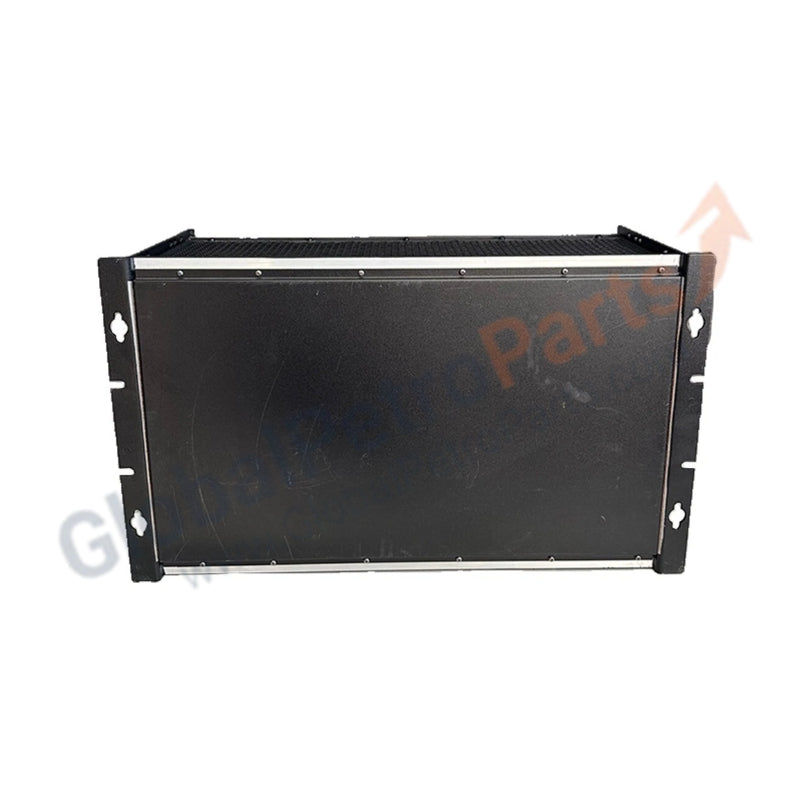

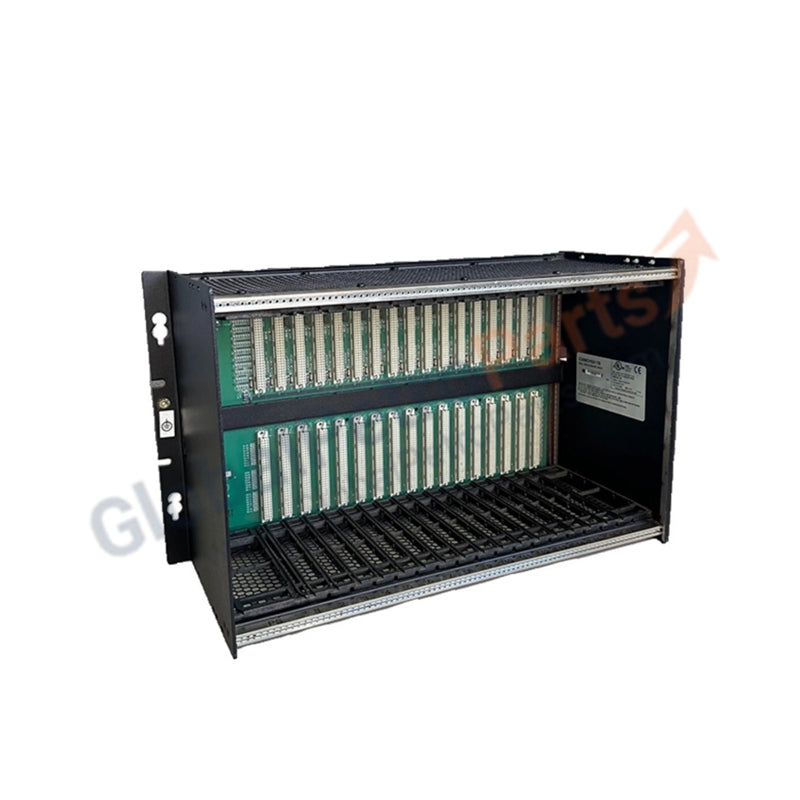

IC698CHS017 | GE Fanuc PACSystems RX7i 17-Slot I/O Rack Chassis

Product Overview

The GE Fanuc IC698CHS017 provides the high-performance foundation for large-scale PACSystems RX7i automation deployments. This 17-slot chassis utilizes a rugged VME-based backplane to facilitate high-speed communication between the RX7i CPU and various specialized I/O modules. Designed for maximum density, it accommodates complex configurations that require extensive processing power and significant point counts. We supply this chassis in 100% Brand New condition, ensuring pristine gold-plated backplane connectors and structural perfection for your most critical control infrastructure.

Technical Specifications

Engineering Advantages

• Ultra-High Current Capacity: The backplane supports a massive 60 Amps at 5 VDC. This robust power distribution allows engineers to populate all 17 slots with power-hungry modules, such as high-speed communication coprocessors and advanced motion control cards, without risking voltage sag or backplane overheating.

• Optimized VME Architecture: The RX7i system leverages the proven VME64 standard through the IC698CHS017 chassis. This architecture ensures deterministic data transfer and facilitates the use of high-bandwidth third-party VME modules, providing a flexible platform for specialized industrial applications.

• Enhanced Thermal Versatility: While the chassis supports natural convection, it also accommodates an optional fan assembly. This flexibility allows for safe installation in high-temperature environments or tightly packed control cabinets where active airflow is necessary to maintain component longevity.

• Structural Durability: The heavy-duty rear-mount design minimizes mechanical vibration. Secure mounting points ensure the backplane remains aligned even in high-impact industrial settings, preventing intermittent connection failures that often plague lower-quality chassis.

FAQs

• How do I manage the power requirements for a fully loaded 17-slot rack?

  You must utilize a compatible RX7i power supply, such as a 350-Watt module. Ensure the total current draw of your CPU and I/O modules does not exceed the 60A limit at 5V or the 4A limit at 12V to maintain backplane stability.

• Is the fan assembly required for standard operation?

  No, the fan assembly is optional. However, if your cabinet ambient temperature exceeds standard limits or you install high-heat modules in consecutive slots, we strongly recommend the fan unit to prevent localized hotspots.

• Can I use Series 90-70 modules in this RX7i chassis?

  Many Series 90-70 modules are physically compatible with the RX7i backplane. However, you must verify software support within your PACSystems configuration tool (Proficy Machine Edition) to ensure the RX7i CPU recognizes the legacy module's ID.

• Does this unit come in original packaging?

  Yes. We provide the IC698CHS017 as 100% Brand New in its original factory packaging. This guarantees that the backplane pins have never been subjected to insertion wear, ensuring the highest reliability and electrical conductivity for your system.
