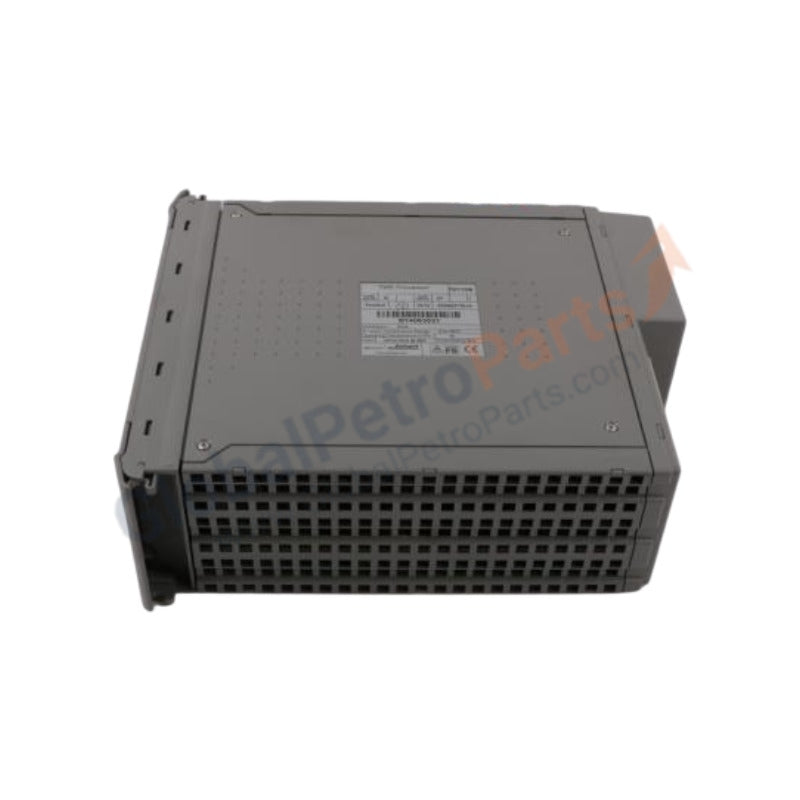

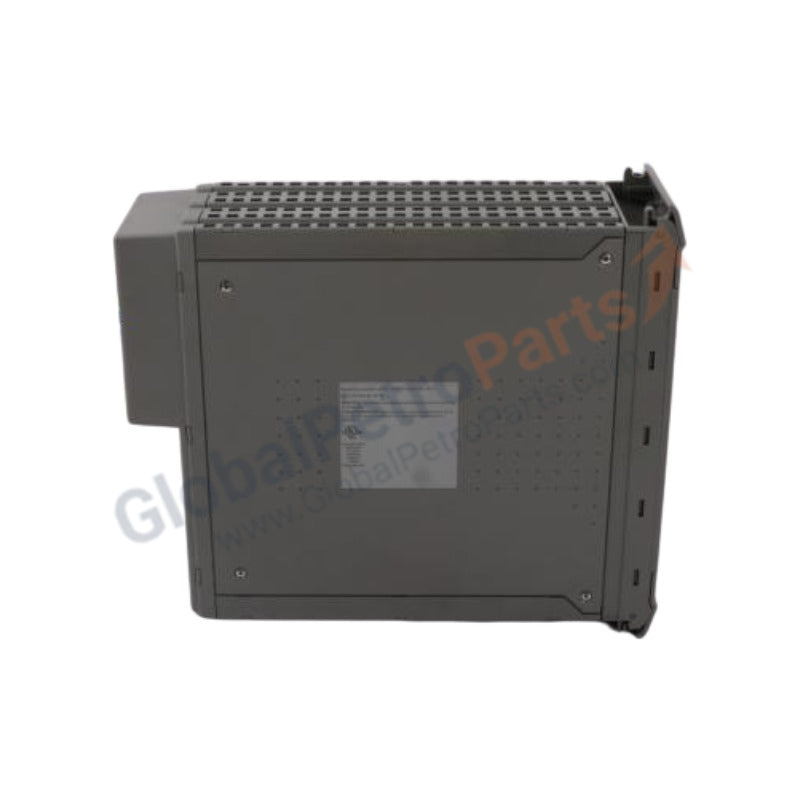

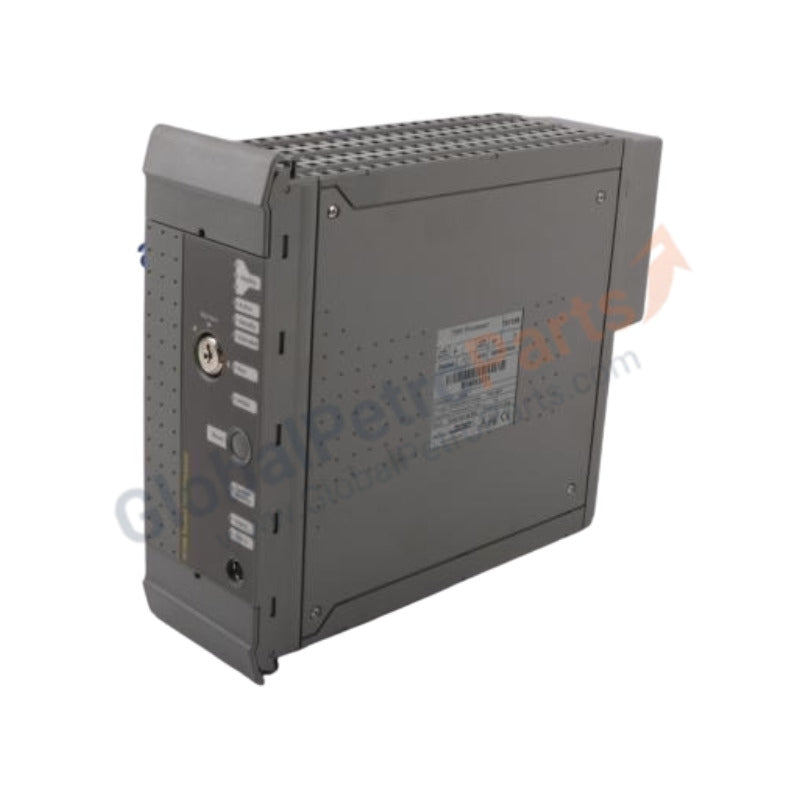

ICS Triplex T8110 Trusted TMR Main Processor Module

Product Overview

The ICS Triplex T8110 (including the T8110B revision) constitutes the core computational brain of the Trusted™ Triple Modular Redundancy (TMR) system. This processor executes high-speed safety logic while managing synchronized communication across the entire controller backplane. By employing a hardware-implemented 2-out-of-3 (2oo3) voting architecture, the T8110 ensures that no single hardware failure disrupts the process or compromises plant safety. We supply this module as 100% brand new and original, providing the essential reliability required for Safety Integrity Level 3 (SIL3) applications in oil and gas, power generation, and chemical processing.

Technical Specifications

Engineering Advantages

• Execute Fail-Safe Logic Simultaneously: The T8110 utilizes three independent processing paths that operate in parallel. The module votes on every instruction at the hardware level, identifying and masking transient faults instantly without halting the control application.

• Eliminate Unplanned Downtime: Integrated hot-standby capabilities allow the T8110 to coordinate with a redundant partner module. This ensures that the system remains online during maintenance or hardware upgrades, maintaining continuous protection for critical assets.

• Master High-Speed Safety Loops: The processor delivers deterministic scan times, ensuring that Emergency Shutdown (ESD) or Fire and Gas (F&G) logic executes within milliseconds. This rapid response time proves critical in preventing catastrophic equipment damage during process upsets.

• Harden Against Electrical Interference: Built for the "noisy" electrical environments of heavy industry, the T8110 features superior electromagnetic compatibility (EMC). It maintains stable operation even when situated near high-frequency drives and heavy switching gear.

FAQs

• What is the difference between the T8110 and the T8110B?

  The T8110B is a later hardware revision that offers improved component longevity and refined diagnostic features while remaining fully backward compatible with the standard T8110 within the Trusted framework.

• Does this processor require specific licensing for SIL3 operation?

  While the hardware is SIL3 certified, your specific safety integrity level depends on the complete system configuration and the logic developed in the Trusted Workbench environment.

• How does the T8110 handle a "First Out" event during a trip?

  The processor interfaces with the Sequence of Events (SOE) data from I/O modules, allowing it to record the exact millisecond a signal changed state. This provides engineers with the precise data needed to identify the root cause of a shutdown.

• Can I replace a T8111 with a T8110 module?

  The T8110 and T8111 belong to the same processor family but may have different memory or performance profiles. Always verify your specific system project files and rack loading before attempting a model substitution.

• Is this unit factory-original?

  Yes. We guarantee this T8110 is 100% brand new, original, and factory-sealed. It has never been commissioned, ensuring zero wear on internal components and connectors.
