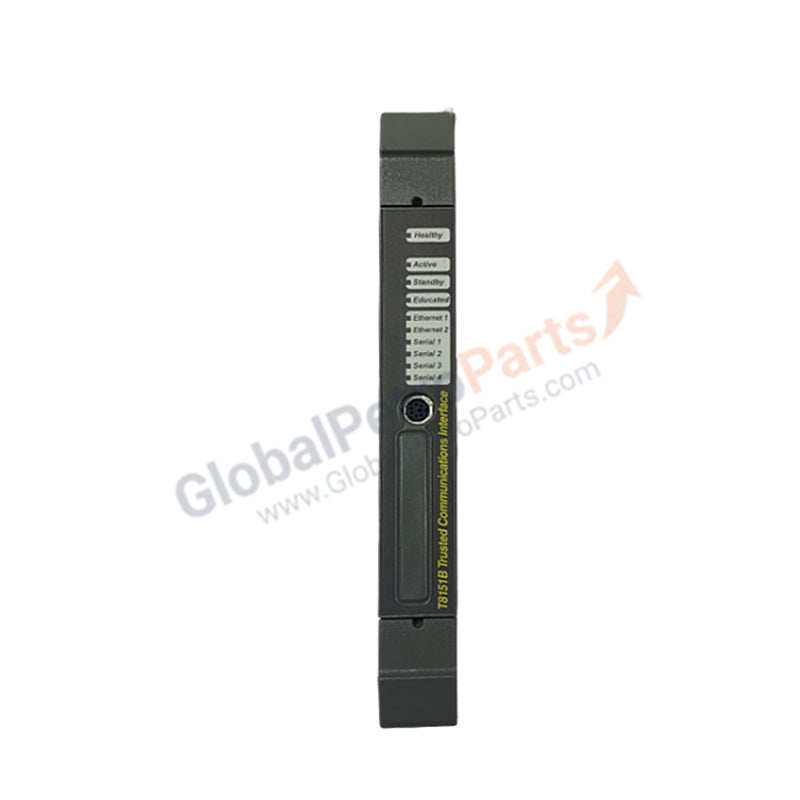

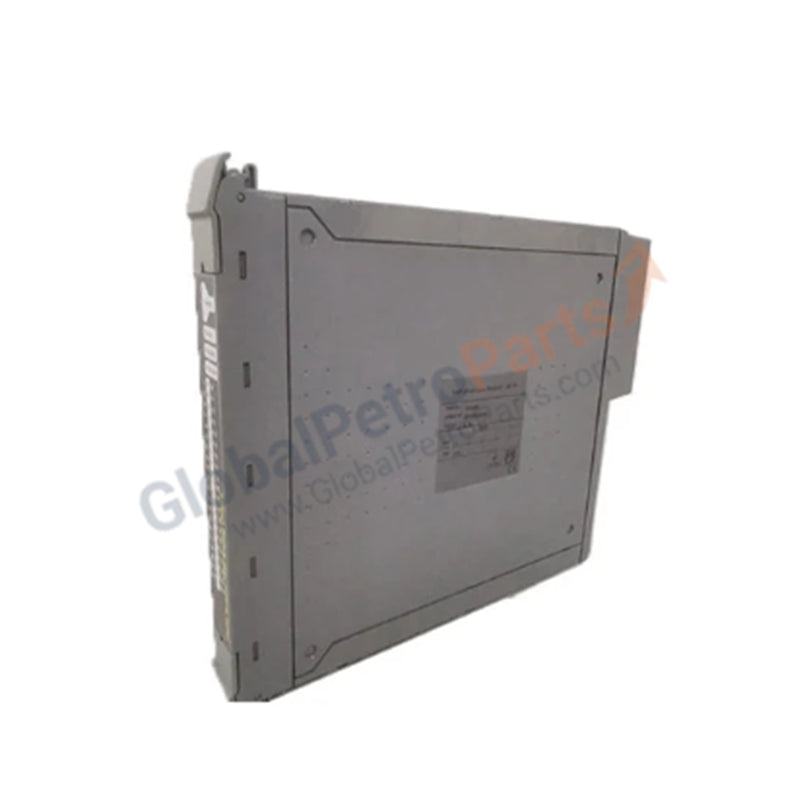

ICS Triplex T8151B Trusted Series Communications Interface Module

Product Description

The ICS Triplex T8151B Communications Interface Module is a versatile networking component designed for Trusted Series systems. It provides multiple serial and Ethernet ports, supports a wide range of industrial communication protocols, and includes advanced diagnostics for event logging. Built for safety-critical environments, the T8151B ensures reliable data exchange and seamless integration across distributed control architectures.

Technical Specifications

• Manufacturer: ICS Triplex

• Model: T8151B

• Product Type: Communications Interface Module

• Fusing: Internal, not user serviceable

• Ports:

• 2 × rear serial ports (RS-232/422/485)

• 2 × rear serial ports (RS-422/485)

• 2 × Ethernet ports (10/100BaseT)

• 1 × diagnostics serial port (RS-232)

• Baud Rates: 1200 to 115200 baud

• Supported Protocols:

• Modbus RTU

• Open Modbus TCP

• Trusted Peer-to-Peer

• Trusted Enhanced Peer-to-Peer

• ICS2000

• CP2000

• SOE Buffer Capacity: 4000 events

• Operating Temperature Range: 0 °C to +60 °C (32 °F to 140 °F)

• Storage Temperature Range: –25 °C to +70 °C (–13 °F to 158 °F)

• Relative Humidity: 10%–95%, non-condensing (operating and storage)

• Dimensions:

• Height: 266 mm (10.5 in)

• Width: 31 mm (1.2 in)

• Depth: 303 mm (12.0 in)

• Weight: 1.13 kg (2.49 lbs)

Key Features

• Multiple serial and Ethernet interfaces for flexible connectivity.

• Wide protocol support for integration across diverse platforms.

• Event buffer with 4000-entry capacity for sequence-of-events logging.

• Diagnostic port for system monitoring and troubleshooting.

• Rugged design suitable for safety-critical environments.

Application Scenarios

• Distributed control systems requiring multi-protocol communication.

• Safety instrumented systems in oil and gas, chemical, and power industries.

• Industrial automation networks with peer-to-peer Trusted Series integration.

FAQ

Q: What communication protocols are supported by the T8151B?  A: Modbus RTU, Open Modbus TCP, Trusted Peer-to-Peer, Trusted Enhanced Peer-to-Peer, ICS2000, and CP2000.

Q: How many Ethernet ports are available?  A: Two Ethernet ports supporting 10/100BaseT.

Q: What is the SOE buffer capacity?  A: The module can store up to 4000 events.

Q: Is the fusing user-replaceable?  A: No, the fusing is internal and not serviceable by the user.
