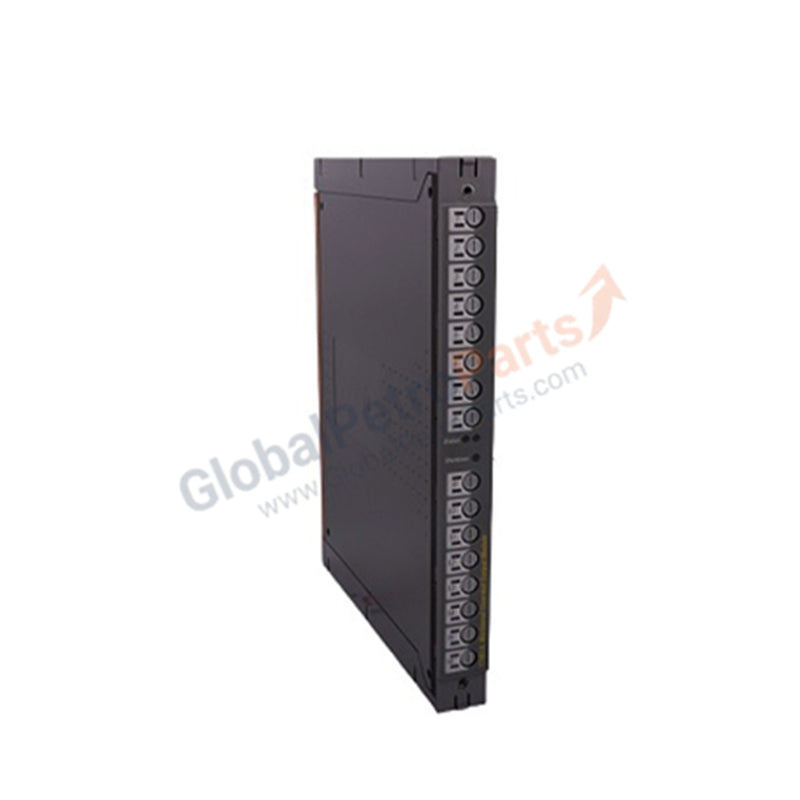

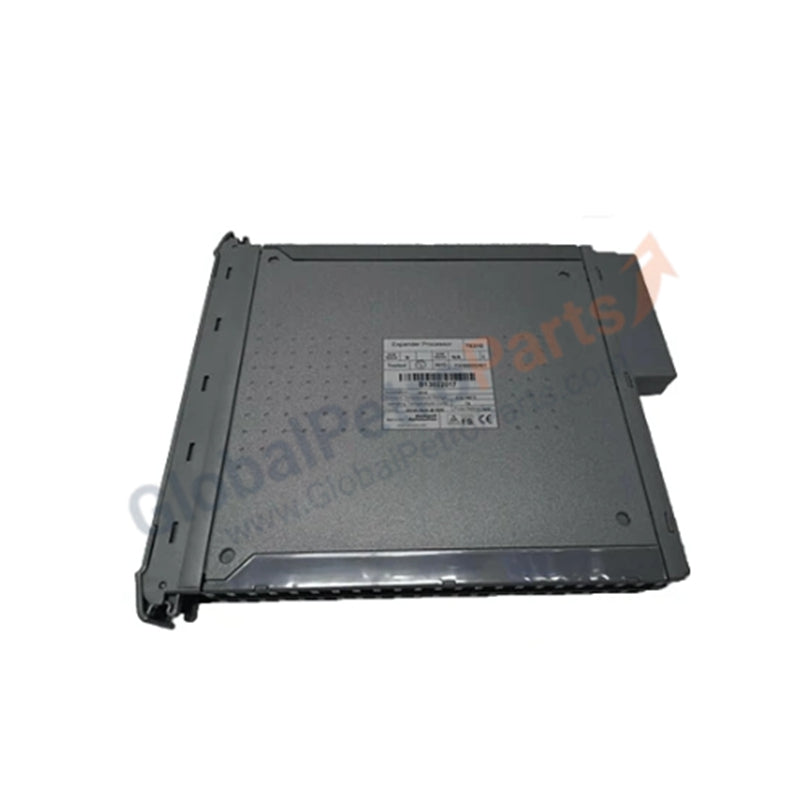

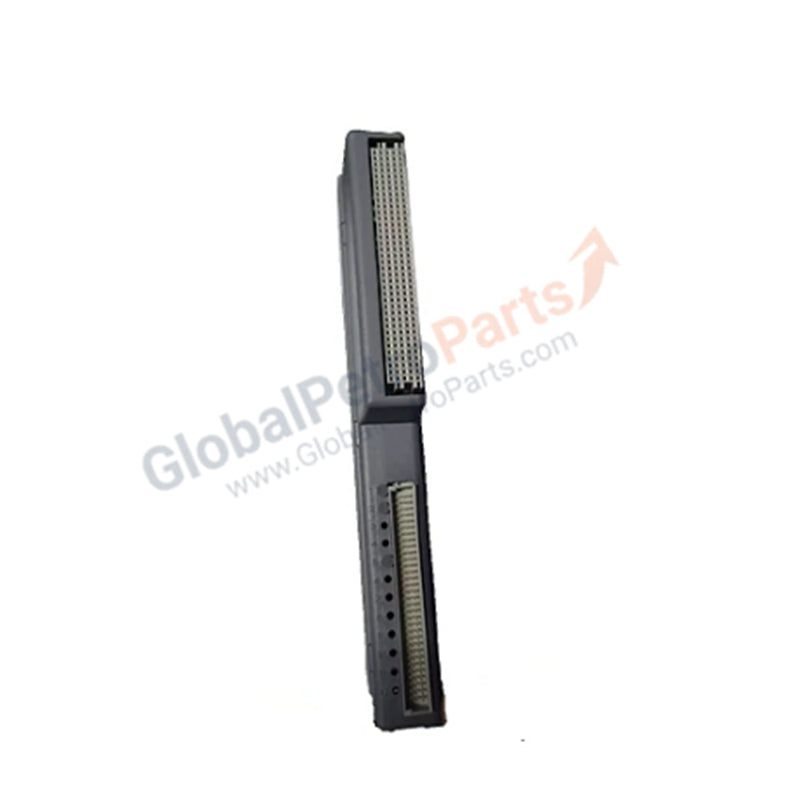

ICS Triplex T8310 | Expander Processor | Trusted Series Module

Product Description

The ICS Triplex T8310 Expander Processor is a critical module designed for use in the Trusted Series expander chassis. Positioned in the two leftmost processor slots, it provides the communication interface between the expander and controller chassis. Built on fault-tolerant HIFT Triple Modular Redundancy (TMR) architecture, the T8310 ensures high availability and reliable data transfer in safety-critical applications.

Technical Specifications

• Manufacturer: ICS Triplex

• Model: T8310

• Product Type: Expander Processor Module

• Architecture: HIFT TMR (fault-tolerant)

• Data Transfer Rate: 250 Mbps

• Diagnostics: Comprehensive fault detection and reporting

• Standby Support: Automatic and manual repair strategies with standby module configuration

• Connection Interfaces:

• TC-301 hot link cable

• T8312 expander interface adapter

• Power Supply: Dual redundant +24 VDC from expander chassis backplane

• LED Indicators:

• Health: Three LEDs (green = healthy, red = fault)

• Active/Standby: Green indicates active; steady green indicates standby

• TxRx: Three LEDs (green = receive, red = transmit, amber = both, off = failure)

• Weight: 1.33 kg (2.93 lbs)

Key Features

• Fault-tolerant processor design with TMR architecture.

• High-speed communication at 250 Mbps.

• Redundant power supply for continuous operation.

• LED diagnostics for real-time status monitoring.

• Supports both automatic and manual repair strategies.

Application Scenarios

• Safety-critical control systems requiring expander-to-controller communication.

• Industrial automation environments with redundant architectures.

• Power generation, chemical, and oil & gas facilities where fault tolerance is essential.

FAQ

Q: Where is the T8310 installed in the chassis?  A: It resides in the two leftmost processor slots of the expander chassis.

Q: How does the module connect to the controller?  A: Via TC-301 hot link cable and T8312 expander interface adapter.

Q: What redundancy features are included?  A: Dual redundant +24 VDC power feeds and standby module support.

Q: How are faults detected?  A: Through comprehensive diagnostics and LED indicators for health, activity, and communication.
