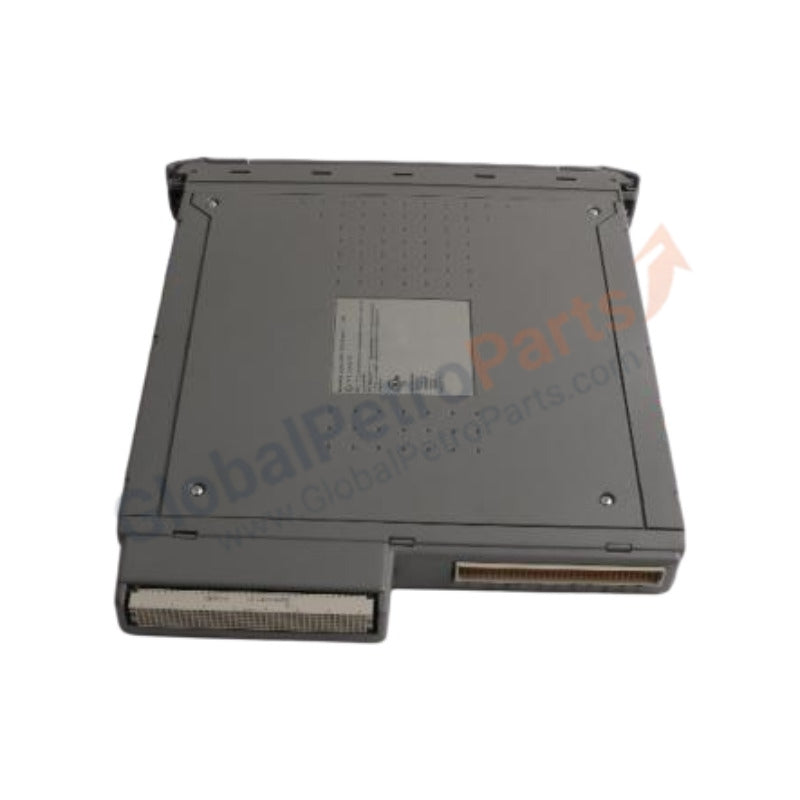

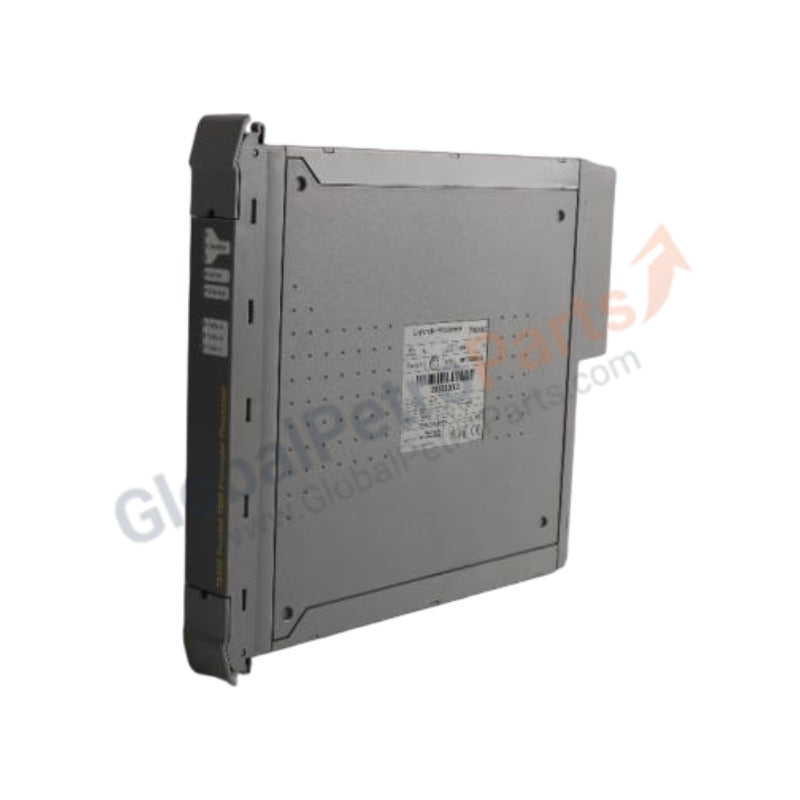

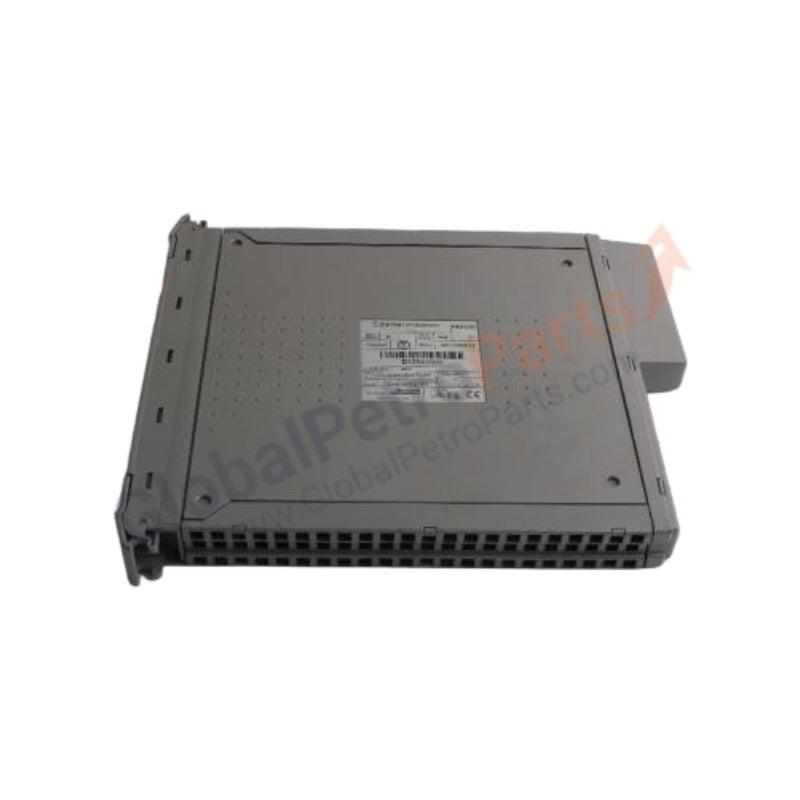

ICS Triplex T8310C Trusted TMR Expander Processor Module

Product Overview

The ICS Triplex T8310C functions as the intelligent management interface for the Trusted™ Triple Modular Redundancy (TMR) Expander Chassis. It facilitates high-speed, fault-tolerant communication between remote I/O segments and the main controller chassis. By managing the Expander Bus logic, the T8310C ensures that distributed data reaches the central processors with absolute integrity and minimal latency. The "C" version indicates that this module features conformal coating, providing essential resistance against corrosive atmospheres. We supply this unit as 100% brand new and original, ensuring your distributed safety architecture remains robust and reliable.

Technical Specifications

Engineering Advantages

• Execute High-Speed Bus Synchronization: The T8310C manages the complex timing required to synchronize remote expander racks with the main controller. It prevents data skew and ensures that the TMR voting logic receives input samples from across the facility simultaneously.

• Resist Chemical and Atmospheric Corrosion: The specialized conformal coating protects the internal circuitry from hydrogen sulfide (H2S), humidity, and salt spray. This makes the T8310C the standard choice for offshore production platforms and hazardous chemical processing zones.

• Isolate Localized Bus Faults: Integrated diagnostics allow the T8310C to identify and isolate faults within a specific expander rack. This prevents a local hardware failure or cable issue from compromising the communication integrity of the remaining system racks.

• Streamline Distributed Maintenance: The module supports hot-swapping within the expander chassis. Maintenance teams replace the T8310C without powering down the expander rack, allowing the system to maintain its safety functions through the redundant partner module.

FAQs

• What is the primary difference between the T8310 and the T8310C?

  The T8310C includes a protective conformal coating on the PCB, whereas the standard T8310 does not. Both modules are functionally identical and interchangeable, but the "C" version offers significantly better longevity in high-humidity or corrosive environments.

• Does the T8310C require a dedicated slot in the expander chassis?

  Yes, the T8310C must reside in the designated Expander Processor slots (typically the leftmost slots) of the T8300 Expander Chassis to properly manage the backplane and communication bus.

• How does the T8310C handle communication loss with the main rack?

  The module monitors the link heartbeat constantly. If communication fails, the T8310C executes pre-defined "Fail-Safe" or "Hold Last State" logic for the local expander rack, as configured in your Trusted Workbench project.

• Is this unit factory-original or surplus?

  We guarantee this T8310C is 100% brand new, original factory stock. It arrives in its original sealed packaging, ensuring the conformal coating and electronic components are in pristine condition for immediate deployment.
