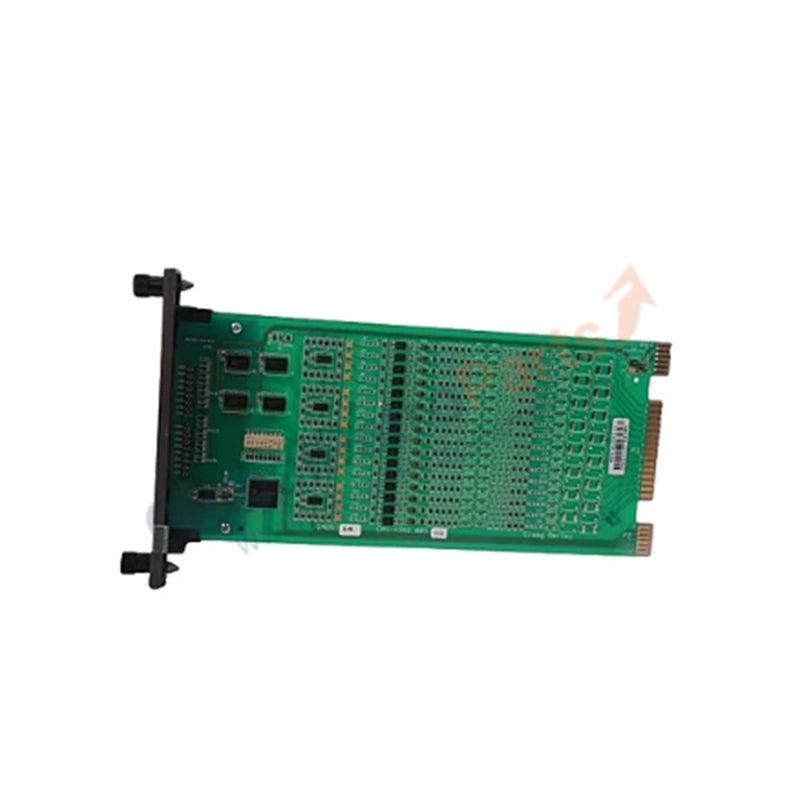

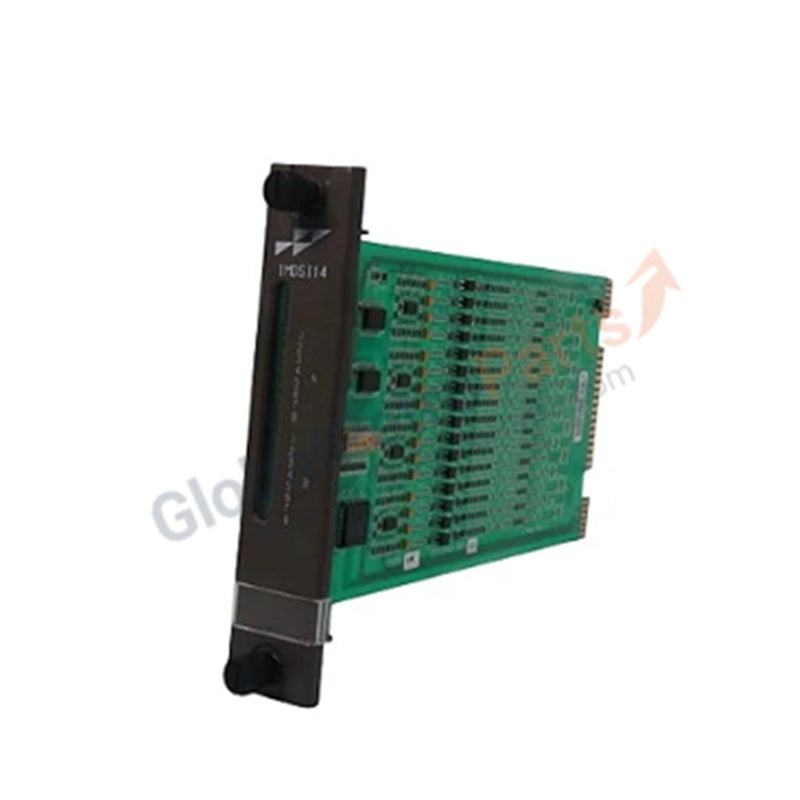

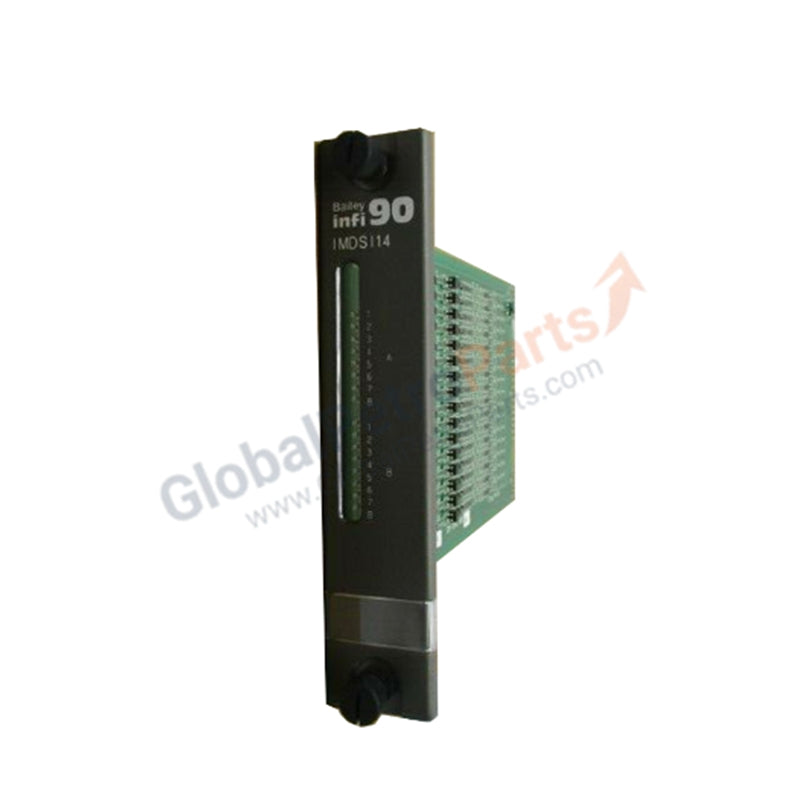

IMDSI14 | ABB Bailey 16-Point Digital Input Module | Slave Input Unit

Product Description

The ABB Bailey IMDSI14 Digital Slave Input Module is a high-performance unit designed to provide reliable digital input functionality for ABB’s Infi 90 and Net 90 control systems. With 16 dedicated input channels, this module ensures accurate signal acquisition and seamless integration into industrial automation environments.

Technical Specifications

• Manufacturer: ABB Bailey

• Model: IMDSI14

• Product Code / Order No.: IMDSI14

• Product Type: Digital Slave Input Module

• Number of Channels: 16 digital inputs

• Voltage Rating: 48 VDC

• Dimensions:

• Height: 7.0 in (17.8 cm)

• Width: 12.5 in (31.8 cm)

• Depth: 1.5 in (3.8 cm)

• Weight: 0.2 kg (8.0 oz)

• Compatibility: ABB Bailey Infi 90 and Net 90 systems

• Construction: Compact rack-mounted design for efficient space utilization

Application Scenarios

• Integration into ABB Bailey Infi 90 and Net 90 distributed control systems

• Industrial automation requiring multiple digital input channels

• Machine control environments with high reliability demands

• Process monitoring systems where precise digital signal acquisition is critical

FAQ

Q: How many input channels does the IMDSI14 provide?  A: The module supports 16 digital input channels.

Q: What voltage level is supported?  A: The IMDSI14 is designed for 48 VDC digital input signals.

Q: Is this module compatible with ABB Bailey Infi 90 systems?  A: Yes, it is specifically designed for ABB Bailey Infi 90 and Net 90 systems.

Q: What is the weight of the module?  A: The unit weighs approximately 0.2 kg (8.0 oz).
