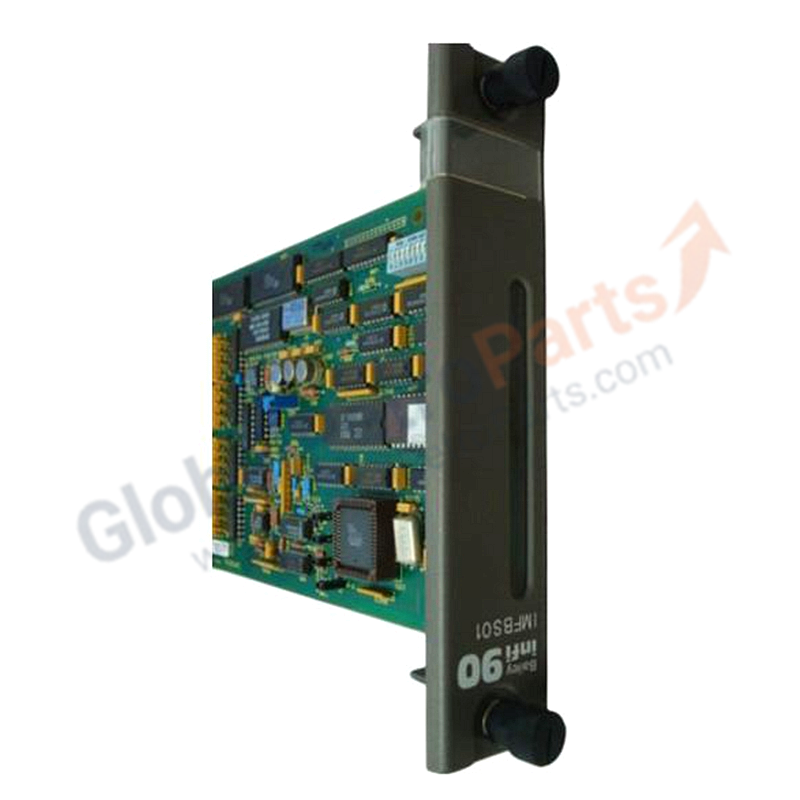

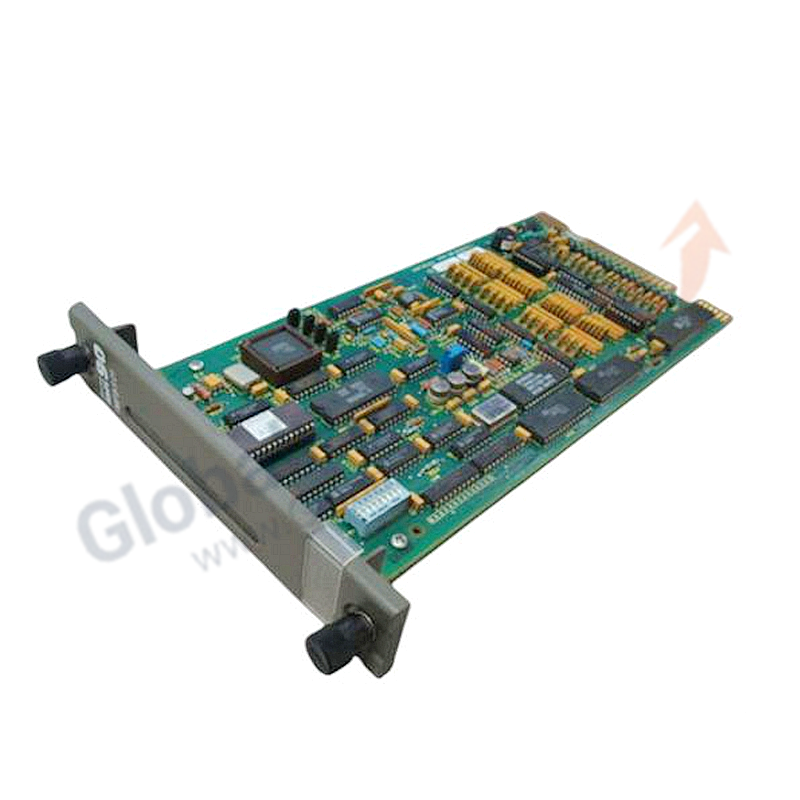

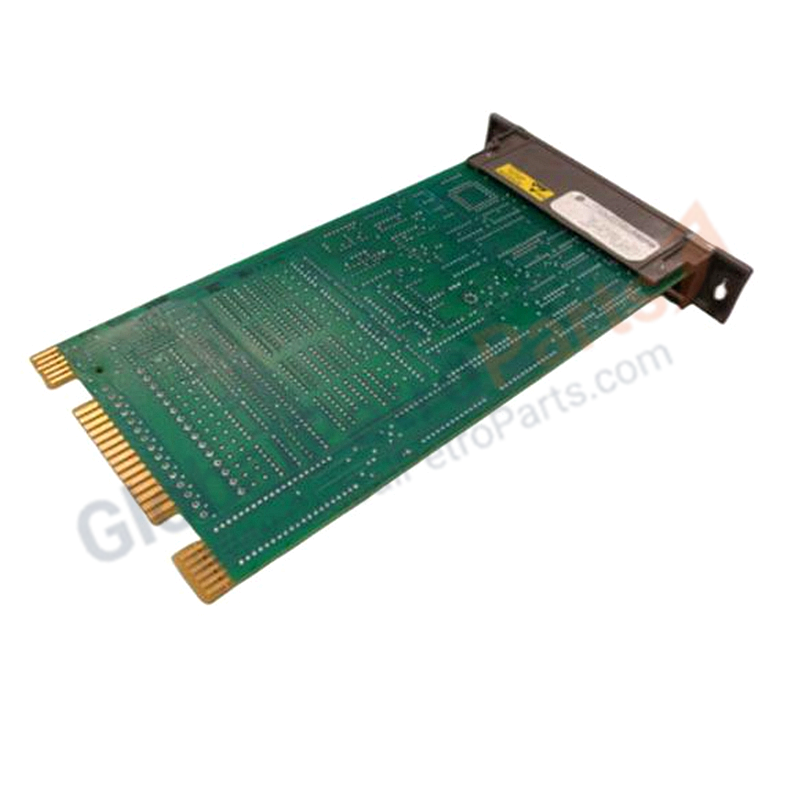

IMFBS01 | ABB Bailey INFI 90 System | Field Bus Slave Module

Overview

The ABB Bailey IMFBS01 is a Field Bus Slave module used in the INFI 90 system. It provides communication between field devices and the system controller through field bus architecture.

Technical Specifications

• Product Type: Field Bus Slave Module
• Part Number: IMFBS01
• System: ABB Bailey INFI 90 / Network 90
• Function: Field device communication interface
• Operating Modes:
  • FSK Field Bus Mode
  • FSK Analog Point-to-Point Mode
  • Baseband Analog Point-to-Point Mode
• Communication:
  • I/O Expander Bus to MFP / MFC
  • Field Bus interface to smart transmitters
• Supported Devices:
  • FSK smart transmitters
  • Baseband smart transmitters
  • Conventional analog transmitters
• Field Bus Speed:
  • 9600 baud (FSK devices)
  • 600 baud (baseband devices)
• Mounting: INFI 90 Module Mounting Unit (MMU)
• Configuration: Function Code 132 / 133 in MFP/MFC

Key Features

• Supports digital and analog field device communication
• Enables smart transmitter configuration and monitoring
• Provides secure communication using transmitter security byte
• Supports multiple operating modes for flexible field integration
• Interfaces directly with INFI 90 controller modules

Installation Notes

• Install in INFI 90 Module Mounting Unit (MMU)
• Connect field devices via NTFB01 / NTAI05 termination units
• Configure function codes 132 and 133 in MFP/MFC
• Set module address via dip switch configuration
• Ensure correct bus termination and cabling
