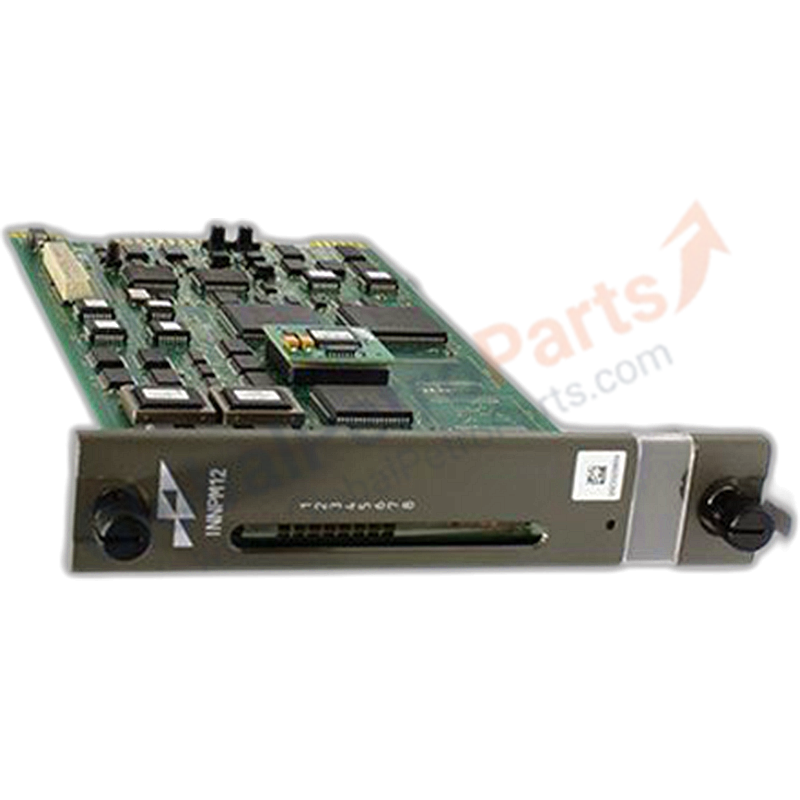

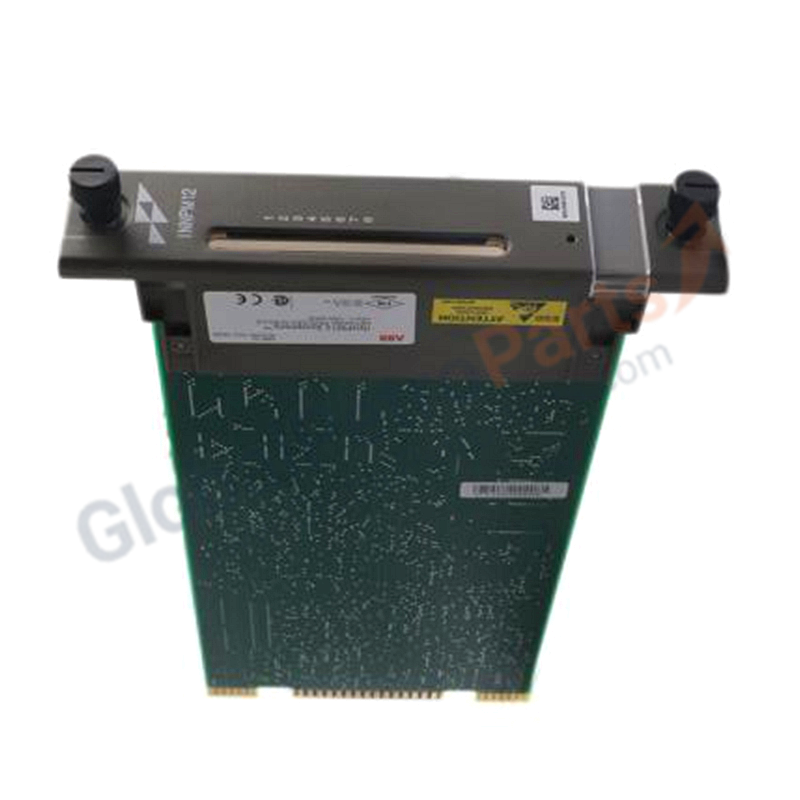

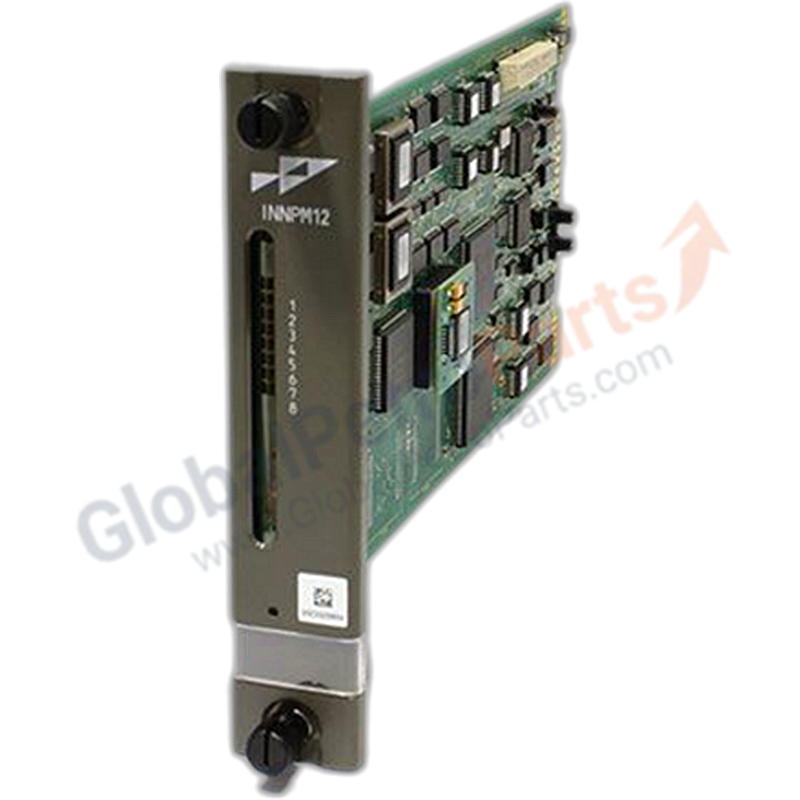

INNPM12 | ABB Bailey Network Processor Module

Overview

The ABB Bailey INNPM12 is a Network Processing Module designed for INFI 90 OPEN process control systems. It manages network communications, message routing, and data transfer functions across the INFI-NET network, supporting efficient communication between distributed control system nodes.

Technical Specifications

• Product Type: Network Processing Module
• Part Number: INNPM12
• System Compatibility: ABB Bailey INFI 90 OPEN
• Network Type: INFI-NET
• Communication Rate: 10 Mbit/s
• Processor Type: Motorola 68020 Microprocessor
• Memory Type: Dynamic RAM and Read-Only Memory
• Redundancy Support: Yes
• Communication Media: Coaxial Cable
• Power Supply: +5 VDC
• Operating Temperature: 0°C to 70°C
• Relative Humidity: 5% to 95% Non-Condensing
• Mounting Requirement: One Slot in Standard Module Mounting Unit

Physical Specifications

• Height: 177.8 mm
• Width: 35.5 mm
• Depth: 297.2 mm
• Shipping Weight: 1.5 kg

Key Features

• Provides network processing and communication management functions
• Supports message routing across the INFI-NET communication network
• Enables data exchange between distributed process control nodes
• Supports redundant network communication architectures
• Performs continuous self-diagnostic monitoring
• Optimizes communication performance within INFI 90 OPEN systems
• Integrates with ABB Bailey network interface and control modules

Installation Notes

• Install the module in a designated slot within the module mounting unit
• Connect network communication cabling according to ABB installation documentation
• Verify network configuration and addressing before commissioning
• Ensure proper grounding and shielding of communication cables
• Confirm communication status using module diagnostic indicators during startup
• Maintain environmental conditions within the specified operating limits
