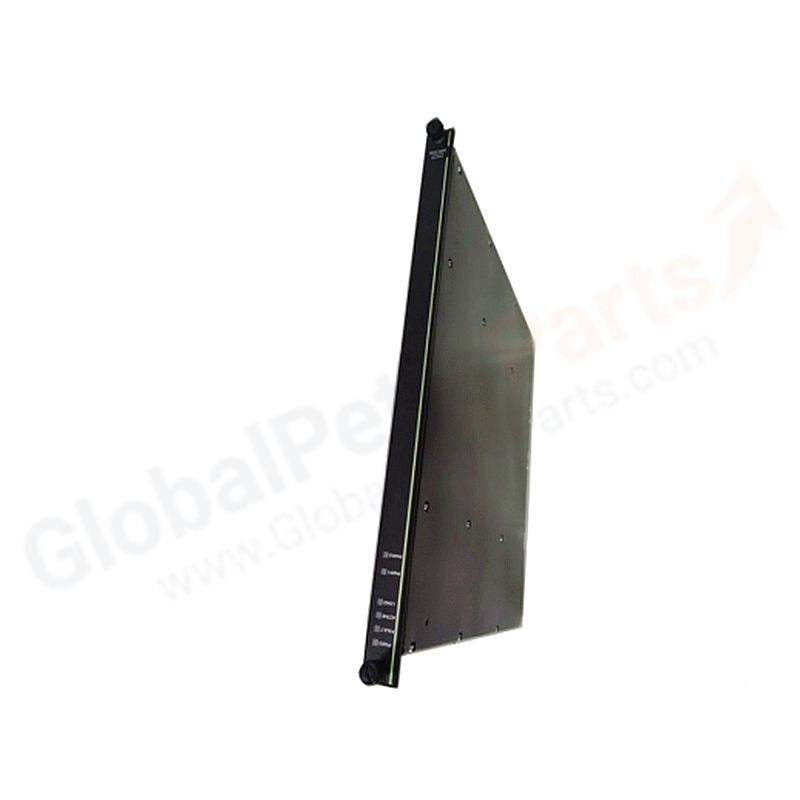

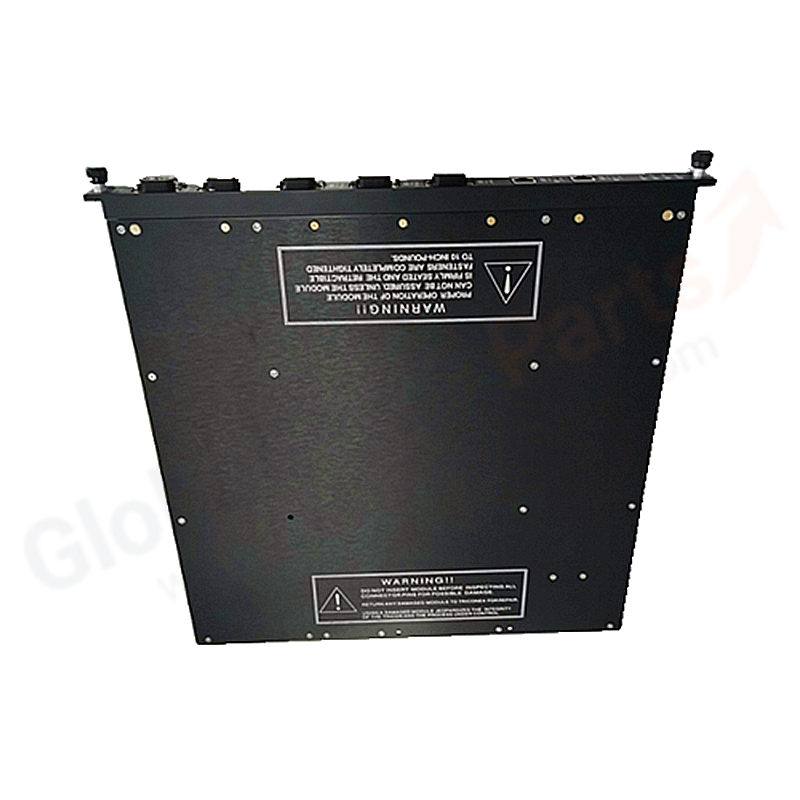

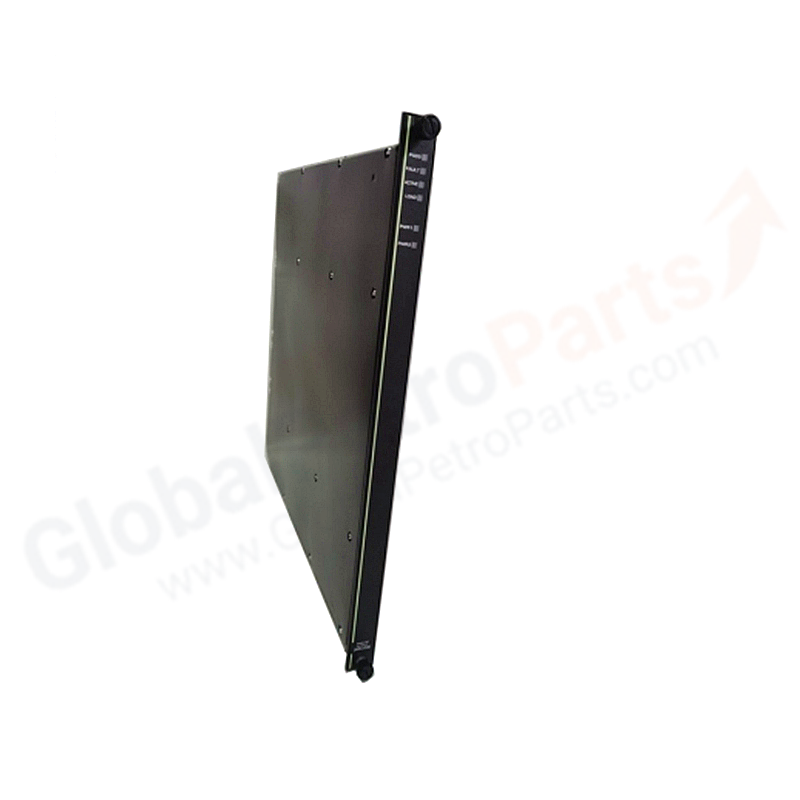

Invensys Triconex 3617E 48Vdc Supervised Digital Output Module

TRICONEX 3617E Supervised Digital Output Module — 48 VDC, 8 Points

The TRICONEX 3617E is an 8-point supervised digital output module with Triple Modular Redundancy (TMR) architecture. Designed for 48 VDC applications, it uses mechanically latched power relays with voting circuits to provide continuously self-diagnosed outputs. The module detects field wiring faults such as open circuits, short circuits, blown fuses, and ground faults through built-in loopback diagnostics, making it ideal for emergency shutdown (ESD), turbine trips, and high-integrity safety instrumented functions (SIF).

• Type: TMR Supervised Digital Output (DO)
• Output Points: 8, commoned returns
• Voltage: 48 VDC nominal (36–72 VDC operating range)
• Output Type: Mechanical power relays with voting circuit
• Current Rating: 1 A maximum per point; 5 A / 10 ms surge handling
• Resistive Load: Up to 150 W
• Typical On-State Voltage Drop: < 2 VDC
• Fuse Protection: 1.25 A fast-acting fuse per channel
• Isolation: 1,500 VDC point-to-logic isolation
• Leakage Current: ≤ 4 mA typical
• Minimum Load for Supervision: ~100 mA (required for reliable supervision integrity)
• Secondary Supply Supervision: 5.00 VDC ±0.25 V auxiliary supply for enhanced fault detection (detects certain load faults even when primary field power is off)
• Supervision: Loopback voltage/current checks; detects open load, shorted load, blown fuse, power loss, and mis-energize conditions
• Diagnostic Indicators: POINT status per channel; PASS / FAULT / ACTIVE / PWR / LOAD LEDs
• Color Code: Mint green module front
• Safety Certification: SIL 3 (IEC 61508) when used in certified Tricon system
• Hot-Swappable: Yes (online replacement supported in healthy TMR system)

Installation Guide

1. Install the 3617E into an I/O slot in the Tricon chassis. Verify mechanical keying prevents incorrect insertion.
2. Connect to a compatible supervised termination panel (ETP) matched to 3617E channel count.
3. Wire 48 VDC field devices to the ETP. Ensure steady load ≤ 1 A per point. For inductive loads, add suppression (flyback diodes or RC snubbers).
4. Maintain ≥ 100 mA minimum load per point for reliable supervision. Sensitive devices may need bleed resistors.
5. Enable supervision in TriStation 1131. Configure fault response (alarm vs. trip) per application requirements.
6. Verify supervision diagnostics by simulating open-circuit and short-circuit conditions during commissioning.

FAQ

Q: What is a "supervised" digital output?
A: A supervised output continuously monitors the field wiring for opens, shorts, blown fuses, and ground faults through voltage and current feedback loops. If a fault is detected, the module reports it to the main processors without necessarily de-energizing the output, allowing operators to address the issue before a safety demand occurs.

Q: What is the difference between 3617E and 3614E?
A: The 3617E operates at 48 VDC. The 3614E operates at 24 VDC. Both are 8-point supervised commoned outputs with mechanical relays. Select based on your field device voltage requirements.

Q: Can I use the 3617E with 24 VDC solenoids?
A: No. The 3617E is rated for 48 VDC (36–72 VDC range). Using 24 VDC loads may result in insufficient drive current or supervision errors. Use the 3614E for 24 VDC applications.

Selection Tips

• Choose 3617E for 48 VDC valve solenoids, contactors, and relay coils where wiring integrity monitoring is required.
• For non-supervised (standard) 48 VDC outputs, consider the 3607E (16 points, non-commoned) for higher point density.
• Supervised outputs require compatible termination panels. Verify panel part numbers in the Tricon product guide.
• Always perform proof testing of supervised outputs per IEC 61511 intervals to validate fault detection circuitry.
• Keep a spare 3617E as a stocked spare for turnarounds — the per-channel fuse and diagnostic LEDs dramatically reduce troubleshooting time.
