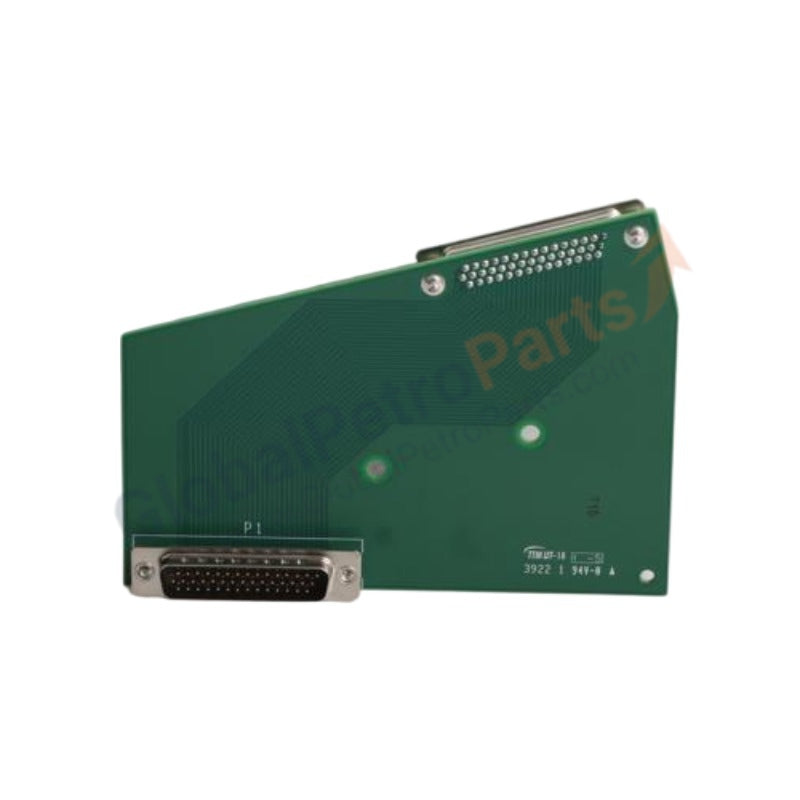

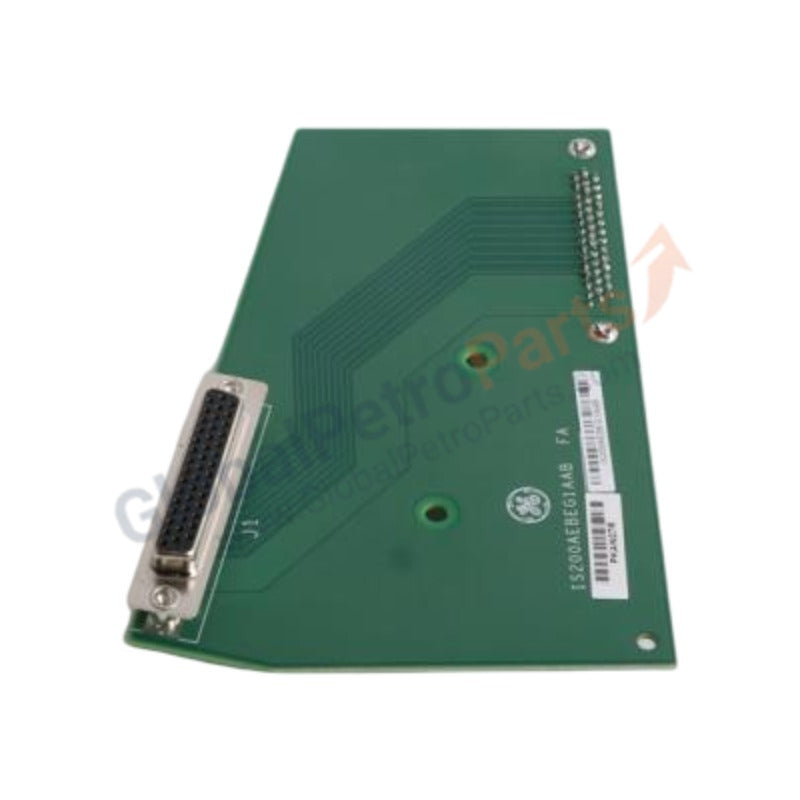

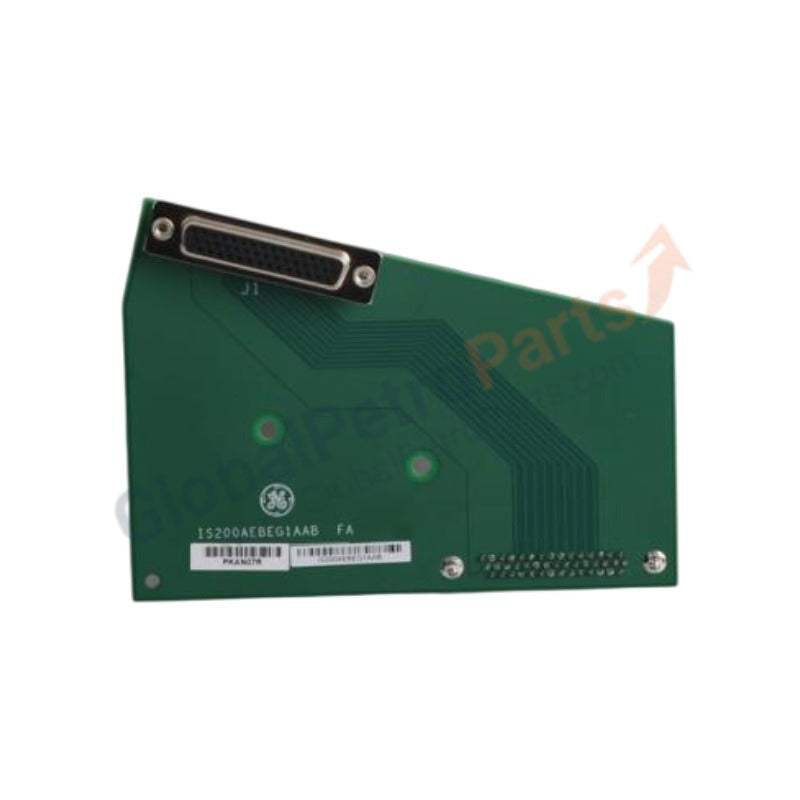

IS200AEBEG1A | GE Speedtronic Mark VI Excitation Backplane Circuit Board

Product Overview

The GE IS200AEBEG1AAB operates as a high-integrity Excitation Backplane Circuit Board within the General Electric Speedtronic Mark VI turbine control system framework. This specialized, multi-layered backplane handles complex power distribution, signal routing, and internal communication paths between adjacent control cards in the excitation sub-system rack. It bridges high-speed digital processing commands with heavy-duty generator field control circuitry. Procuring this Brand New, original GE board prevents communication latency dropouts and avoids unexpected generator field loss trips that could take heavy-frame power units offline.

Technical Specifications

The table below displays the electrical routing, mechanical housing, and thermal thresholds for the IS200AEBEG1AAB backplane module:

Engineering Advantages

The IS200AEBEG1AAB resolves critical routing vulnerabilities found in older, wire-harness-dependent generator control systems:

• Elimination of Intermittent Harness Faults: Integrated copper bus traces replace hundreds of discrete jumper wires, completely removing human error risks during rewiring or panel cabinet vibration cycles.

• Low-Impedance Power Rails: Thick-film copper planes deliver highly stable, cross-talk-free auxiliary power to sensitive control daughter-cards, preventing system voltage drops when relays actuate.

• Rigid Card Edge Alignment: Precision-engineered mechanical card guides ensure perfect pin-to-socket seating during daughter-card insertions, preventing bent contact pins and localized electrical arcing.

• Cross-Talk Attenuation Geometry: Ground isolation tracks wrap around high-speed communication traces, shielding low-voltage digital clock signals from adjacent high-voltage generator excitation power paths.

FAQs

• What specific architectural variations does the "G1AAB" suffix denote?

  The "G1AAB" suffix identifies the exact group version, revised component layout, and the precise conformal coating application baseline for this AEBE backplane family. This configuration ensures backward-compatibility with matching legacy Mark VI excitation cabinet racks. Always check your master control cabinet schematic drawing file before initiating hardware swap-outs.

• Does this backplane require manual firmware flashing before mounting the processing cards?

  No. The IS200AEBEG1AAB serves as a passive electrical routing backplane structure and contains no user-programmable flash memory or CPUs. The individual daughter-cards that you slide into the slots hold the system software, allowing you to deploy this board straight out of the original box.

• What mounting precautions prevent accidental short-circuits on the back of the panel?

  Field technicians must mount the backplane using the specified non-conductive standoffs to isolate the raw underside solder points from the metal cabinet wall. Clean the rear support framework thoroughly and tighten all anchoring bolts evenly to prevent structural warping of the multi-layer printed circuit board.
