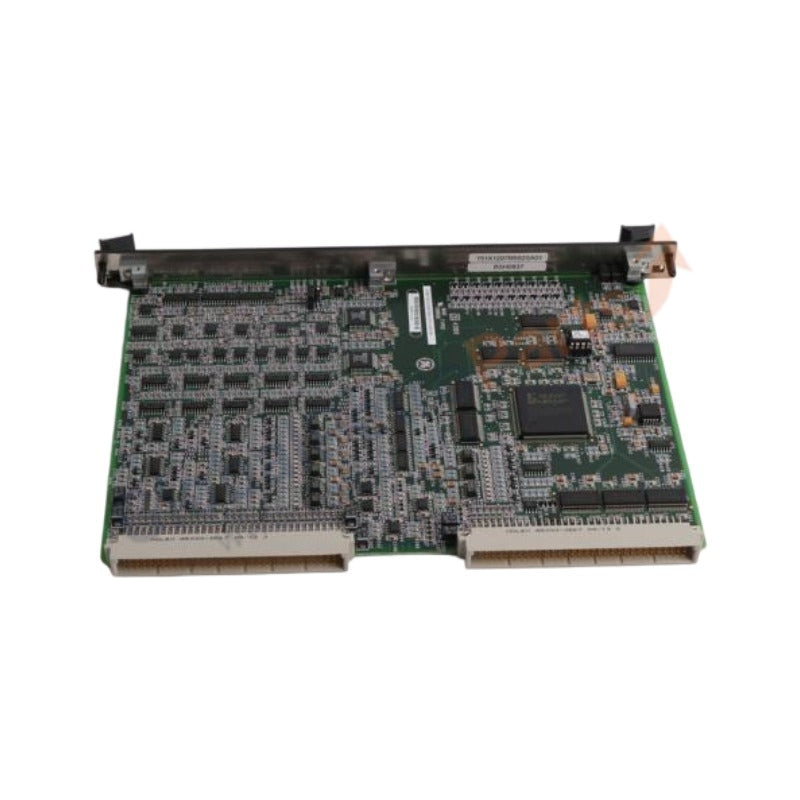

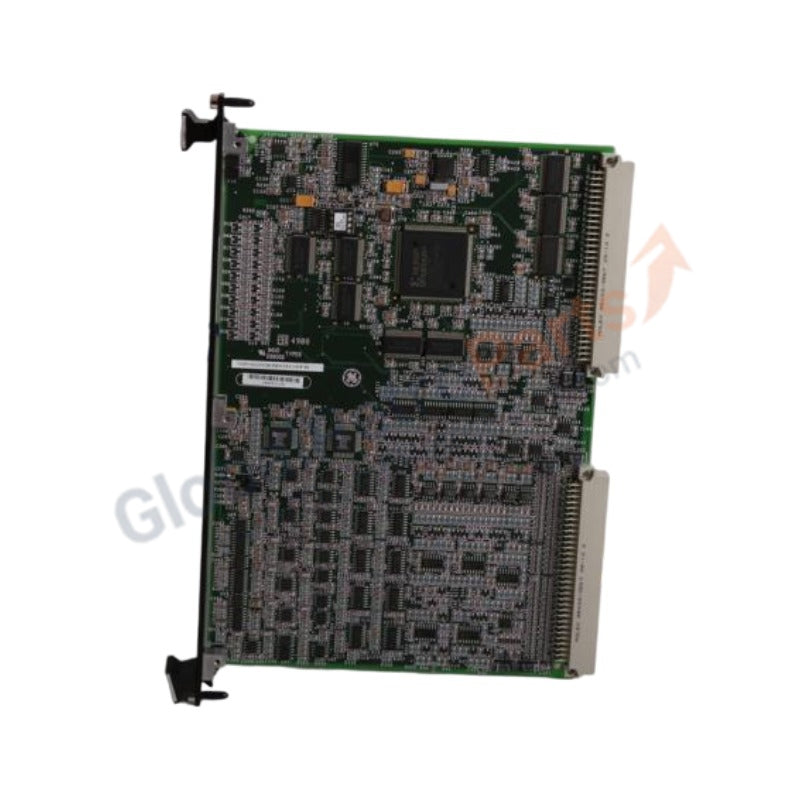

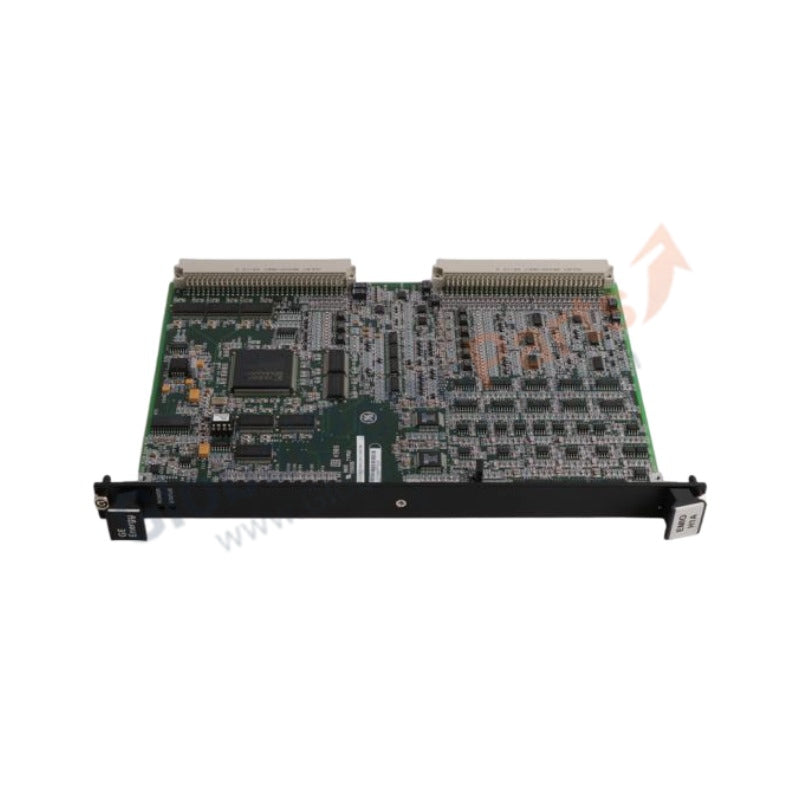

IS200EMIOH1AFB | GE EX2100 Excitation Main I/O Board

Product Overview

The GE IS200EMIOH1AFB functions as the primary Excitation Main Input/Output (EMIO) board within the General Electric EX2100 Excitation Control System. This high-integrity hardware card coordinates the critical interface between the core control processors and the powerhouse silicon-controlled rectifier (SCR) power conversion bridges. It processes crucial analog feedback signals—such as generator stator voltage, field current, and line frequency—while simultaneously routing high-speed pulse-width modulation (PWM) firing commands to the gating circuitry. By establishing a direct, deterministic data link, this module stabilizes generator field regulation and ensures precise voltage tracking during peak load transitions.

We source and distribute this technical hardware module exclusively as 100% brand new, original factory-sealed stock to ensure total operational integrity and maximum physical lifecycle within your heavy power generation panel setups.

Technical Specifications

The IS200EMIOH1AFB integrates multiple dedicated field programmable gate arrays (FPGAs), multi-channel analog-to-digital converters (ADCs), fiber-optic transceivers, and rugged terminal blocks on a multi-layer printed circuit board assembly. The table below highlights the definitive technical specifications:

Engineering Advantages

• Fiber-Optic Gating Isolation: The board utilizes specialized onboard fiber-optic transmitters to send SCR bridge firing commands to the driver cards. This optical interface provides a absolute galvanic isolation barrier, preventing high-voltage electrical transients or massive field surges from traveling back into the sensitive processing backbone.

• Onboard Dynamic Parameter Sampling: High-resolution ADCs sample stator voltage and current metrics concurrently at high frequencies. This localized acquisition eliminates measurement skew, allowing the control algorithms to execute instantaneous automatic voltage regulator (AVR) loop adjustments during sudden load rejections or grid disturbances.

• Excellent Electromagnetic Immunity: Heavy internal ground planes and strategic trace shielding design allow this module to operate seamlessly when placed right next to high-current power buses and switching SCR bridges. This protective layout suppresses the high-frequency radiated noise that commonly corrupts traditional copper signaling paths.

• Robust Hardware Interlock Channels: The board contains dedicated hardwired emergency trip relay contacts that bypass software runtime loops completely. If an over-excitation or stator over-voltage fault occurs, these fast-acting hardware tracks cut off the bridge gating signals instantly to prevent thermal damage to the generator rotor.

FAQs

• Q1: What specific function does the "H1AFB" version suffix designate over early EMIO variations?

  A1: The "H1AFB" revision represents a mature hardware profile featuring optimized component layout variations and upgraded solid-state components. It handles continuous signal throughput with lower internal thermal generation and features an enhanced conformal coating matrix to stop chemical tracking in harsh, warm turbine hall environments.

• Q2: Can I hot-swap the IS200EMIOH1AFB board while the generator remains online?

  A2: No. Because this board directly modulates the active field gating pulses, removing or unseating this component under load breaks the excitation loop immediately. This action will cause an instantaneous field collapse, tripping the unit on under-excitation or reverse-power protection protocols. Always power down the excitation control rack before replacement.

• Q3: How does the board verify that the external SCR gating pulses actually reached the bridge?

  A3: The IS220EMIOH1AFB features dedicated pulse-echo return diagnostics channels. It monitors feedback signals sent back along the interface cable or fiber links, continuously comparing the returned execution state against the issued controller firing commands to identify broken gating cables or faulty gate driver boards immediately.
