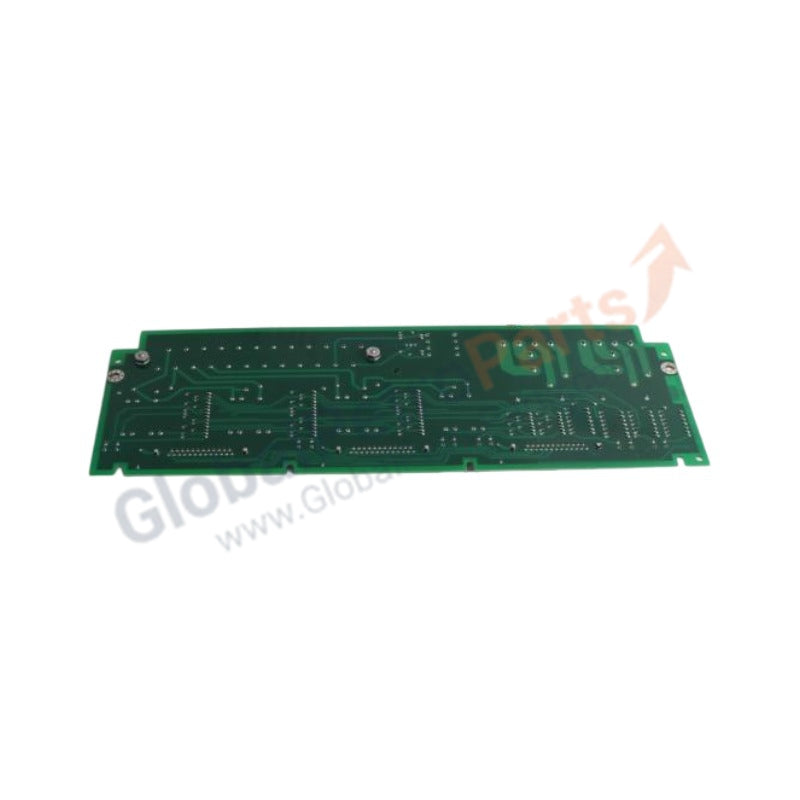

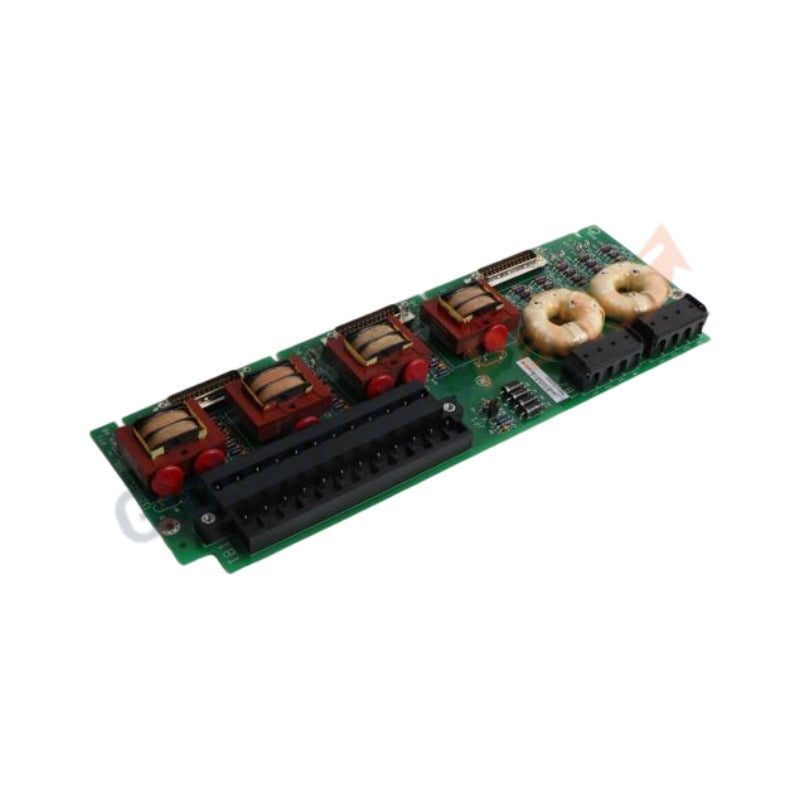

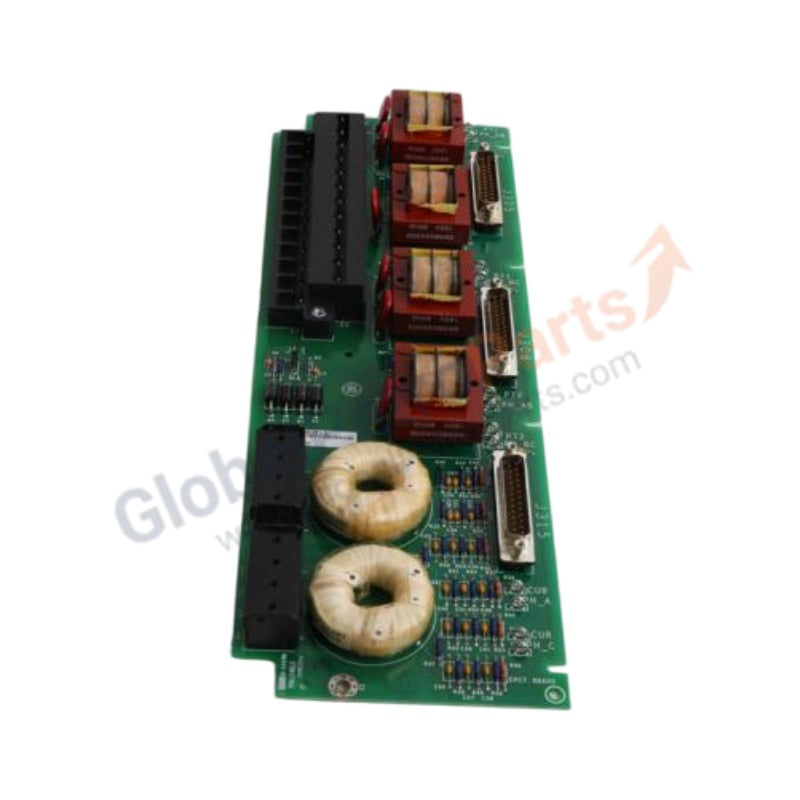

IS200EPCTG1AAA GE  EX2100 Exciter PT/CT Terminal Board

GE Fanuc

IS200EPCTG1AAA GE EX2100 Exciter PT/CT Terminal Board

10 left
  • Manufacturer: GE Fanuc

  • Product No.: IS200EPCTG1AAA

  • Product Type: EX2100 Exciter PT/CT Terminal Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Overview

The GE IS200EPCTG1AAA (EPCT) serves as the primary Exciter PT/CT Terminal Board within the General Electric EX2100 Excitation Control System. This critical interface captures AC voltage from Potential Transformers (PTs) and AC current from Current Transformers (CTs) directly from the generator stator and bus. It scales these high-energy signals into low-voltage representations for the control processors, enabling the system to calculate active power, reactive power, and phase angles. We supply this unit as a 100% Brand New and Original component. By providing the fundamental data for the Automatic Voltage Regulator (AVR) software, the EPCT board ensures the generator maintains grid synchronization and structural stability under varying load conditions.

Technical Specifications

Feature Specification
Manufacturer General Electric (GE)
Model Number IS200EPCTG1AAA
System Series EX2100 Excitation Control
Board Function PT and CT Signal Interface (EPCT)
Inputs 3-Phase PT Voltage / 3-Phase CT Current
Current Ratings Supports standard 1A or 5A CT secondaries
Voltage Ratings Supports standard 115V or 120V PT secondaries
Isolation Magnetic isolation via onboard transformers
Operating Temp -30 to 65 Celsius
Condition 100% Brand New Original

Engineering Advantages

  • Galvanic Magnetic Isolation: The IS200EPCTG1AAA utilizes high-grade onboard isolation transformers for every PT and CT input. This hardware barrier physically separates the high-power generator bus signals from the sensitive digital control electronics, preventing catastrophic damage from bus-side surges or lightning strikes.

  • High-Linearity Signal Scaling: GE engineers designed the EPCT with precision burden resistors and ultra-low-drift circuitry. These components ensure that the AC waveforms remain perfectly linear throughout the entire operating range, allowing the EX2100 system to perform high-accuracy metering and generator protection without signal clipping.

  • Passive Failure Protection: The board incorporates "Shorting-style" CT terminal blocks. This critical safety feature ensures that the CT circuit remains closed even if a wire disconnects, preventing dangerous high-voltage build-up on the CT secondaries that could lead to electrical fires or personnel injury.

  • Aggressive Harmonic Filtering: To combat the electrical noise generated by high-power thyristor bridges, the EPCT board includes integrated low-pass filtering. These filters strip away harmonic distortion, providing the control system with a clean 50/60 Hz fundamental wave for reliable phase-locked loop (PLL) synchronization.

FAQs

  • What is the significance of the "G1AAA" revision code?

    The "G1AAA" represents the initial, highly stable hardware group and revision. It features the standard configuration for 3-phase voltage and current monitoring and is the most common version used in global EX2100 deployments due to its proven thermal reliability.

  • Does this board support both 50Hz and 60Hz systems?

    Yes. The IS200EPCTG1AAA is frequency-agnostic at the hardware level. The magnetic transformers and filtering components are rated to handle both 50Hz and 60Hz frequencies, with specific software parameters in the ControlST™ suite handling the final calculations.

  • Can I replace this board while the generator is online?

    No. Replacing the EPCT board involves disconnecting live PT and CT secondary circuits. Disconnecting a CT under load creates extremely hazardous high voltages. You must de-energize the excitation system and short the external CTs before attempting a replacement.

  • How do I troubleshoot an "Exciter PT Signal Loss" alarm?

    Check the onboard fuses first. If the fuses are intact, verify the PT secondary voltage at the screw terminals using a calibrated DMM. If voltage is present at the terminals but the HMI shows zero, the onboard isolation transformers or the ribbon cable to the I/O pack may have failed.
