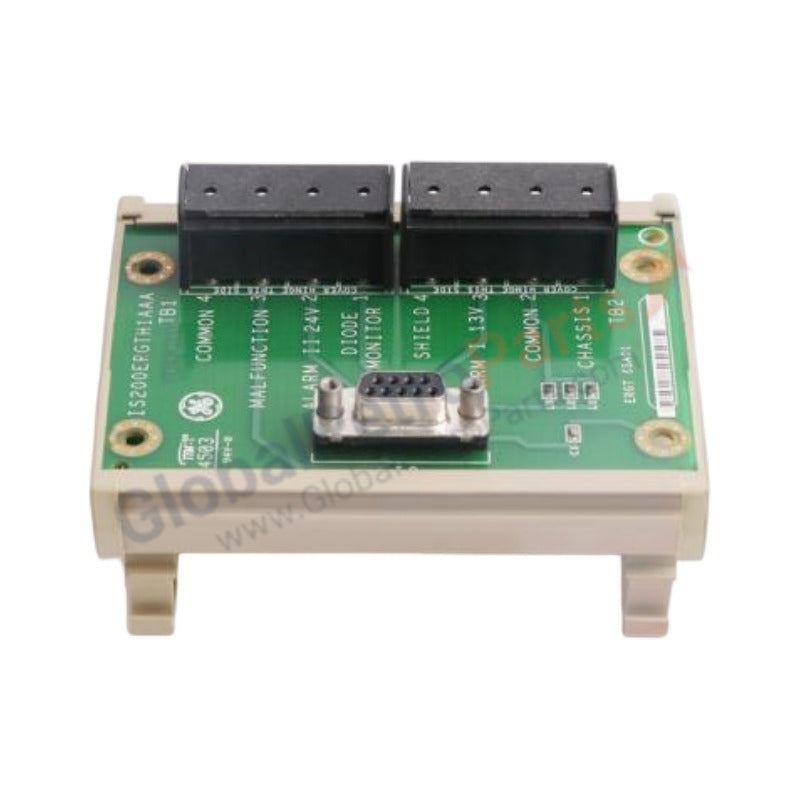

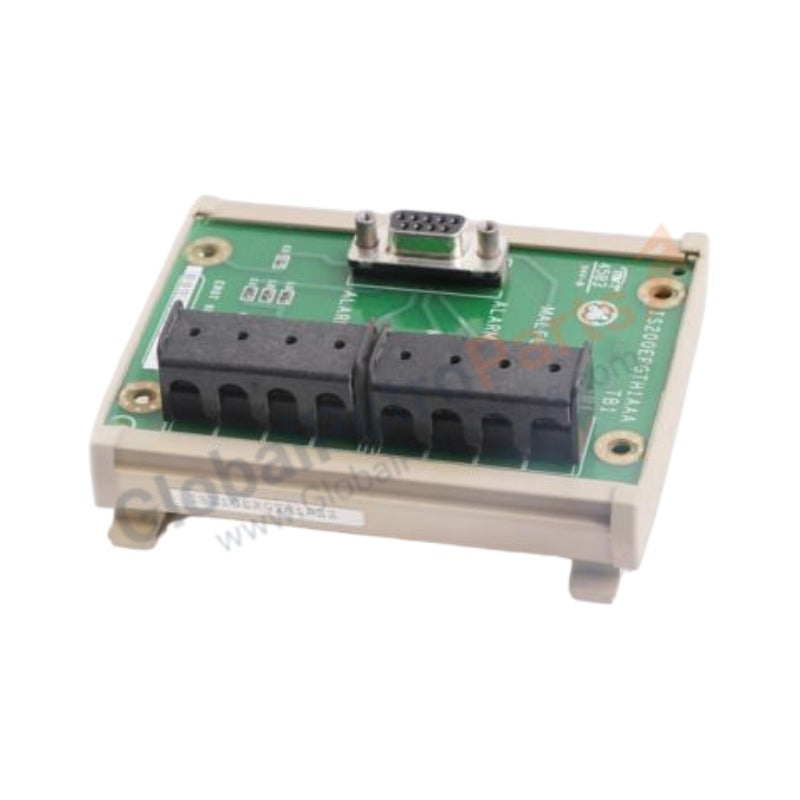

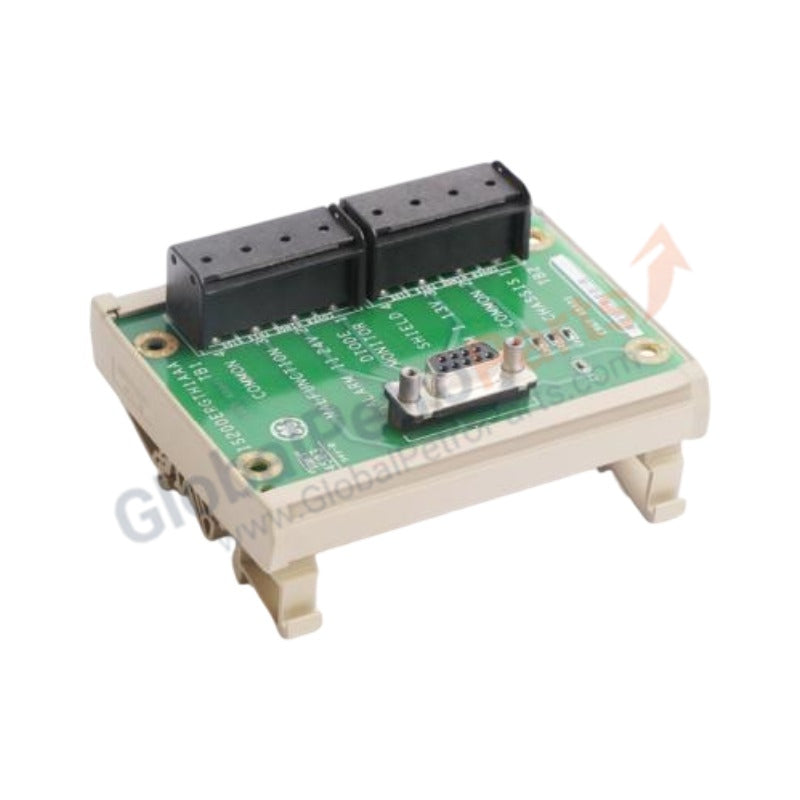

IS200ERGTH1AAA GE Mark VI Exciter Ground TRD Terminal Board

Product Overview

The GE IS200ERGTH1AAA (ERGT) serves as a critical Exciter Ground TRD (Terminal Board) within the General Electric Mark VI Speedtronic control system. This specialized board facilitates the interface between the excitation system and the ground detection circuitry. It monitors the insulation integrity of the generator field and identifies potential ground faults before they lead to catastrophic equipment failure. We provide this component as a 100% Brand New and Original unit. By integrating high-impedance sensing paths and localized signal conditioning, the ERGT board provides the Mark VI controller with accurate real-time data regarding the electrical health of the exciter circuit, ensuring the continuous safety and availability of the turbine-generator set.

Technical Specifications

Engineering Advantages

• Precision Ground Fault Detection: The IS200ERGTH1AAA incorporates high-precision resistor bridges designed to detect minute leakage currents to ground. This early detection capability allows operators to identify insulation degradation in the generator field early, preventing high-current faults that could result in costly rotor repairs.

• Ruggedized Signal Conditioning: GE engineers optimized the ERGT for the high-voltage environment of an excitation system. The board filters out the common-mode noise generated by the thyristor bridges, ensuring that only valid ground fault signals reach the I/O pack, thereby eliminating nuisance trips caused by electrical harmonics.

• Direct Field Termination Architecture: The board features industrial-grade screw terminals that provide secure, low-resistance connections for field wiring. These terminals simplify the installation process and ensure long-term connectivity in high-vibration power plant environments where loose connections often plague standard electronic interfaces.

• Fail-Safe Redundancy Support: In Triple Modular Redundant (TMR) configurations, the ERGT board supports the fan-out of sensing signals to the R, S, and T control cores. This allows the system to perform a "two-out-of-three" vote on ground fault status, significantly increasing the reliability of the protection logic.

FAQs

• What is the specific role of the "TRD" designation in this board?

  The TRD designation typically refers to a specialized termination board that handles specific diagnostic or protection signals—in this case, focusing on the Exciter Ground protection subsystem. It acts as the physical landing point for field cables before the data enters the digital control network.

• Can I replace an earlier ERGTH1A board with the IS200ERGTH1AAA?

  Yes. The "AAA" suffix indicates a fully backward-compatible revision level. This version utilizes updated component selections for enhanced thermal stability and improved mean time between failures (MTBF), making it a superior replacement for older H1 series boards.

• Does this board contain active components that require firmware?

  No. The IS200ERGTH1AAA is a passive terminal board. It uses hardware-level circuitry (resistors, capacitors, and isolation components) to condition signals. The actual data processing occurs in the connected Mark VI I/O pack or processor module.

• What maintenance is required for the IS200ERGTH1AAA?

  Regular maintenance should include inspecting the terminal screws for tightness and checking the board for signs of thermal stress or dust accumulation. Always ensure the cabinet airflow remains unobstructed to keep the board within its 60 deg C operating limit.
