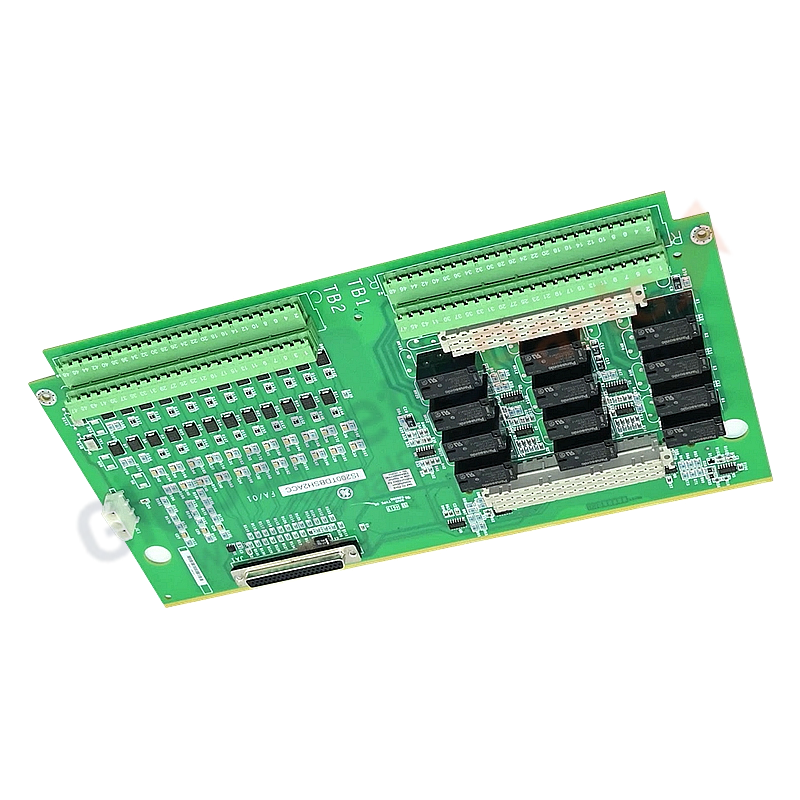

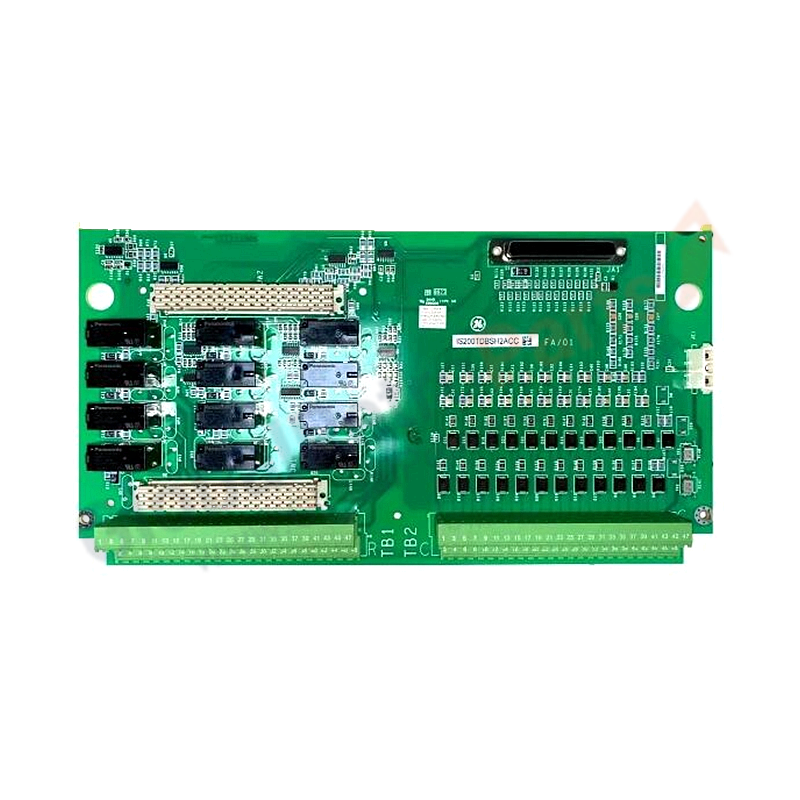

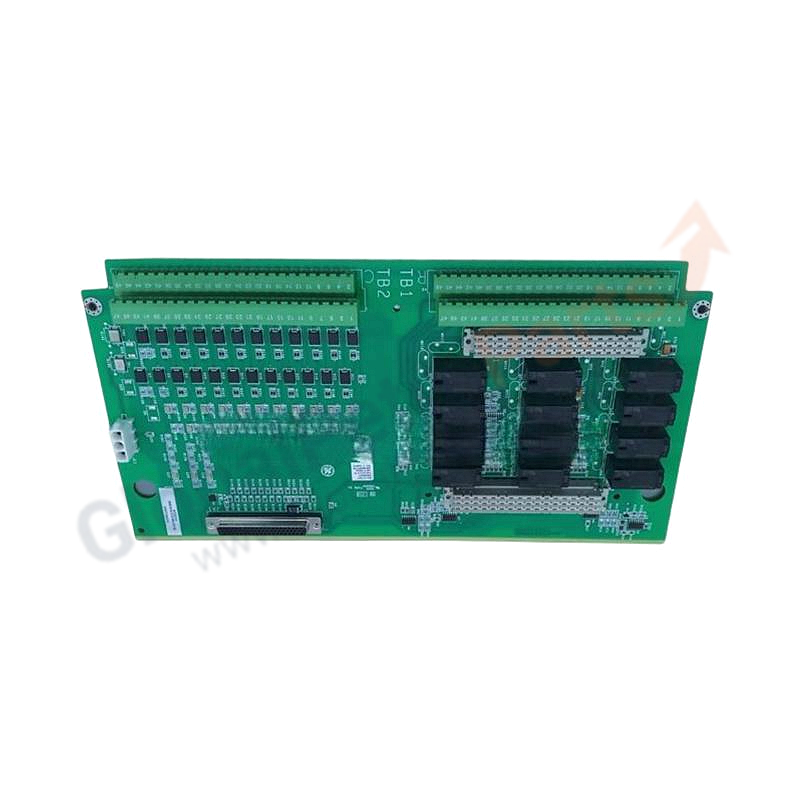

IS200TDBSH2A | GE Mark VI Simplex Discrete I/O Terminal Board

Product Overview

The GE IS200TDBSH2A is a Simplex Discrete I/O Terminal Board for the Mark VIe control system. It provides 24 contact inputs with a 24 VDC wetting voltage and supports pluggable terminal blocks for easy wiring. The board includes a 4 ms hardware input filter and is compatible with WROB, WROF, and WROG option boards for extended functionality. It is designed for simplex (non-redundant) applications only.

Key Specifications

• Model: IS200TDBSH2A
• Type: Simplex Discrete I/O Terminal Board
• Series: Mark VIe
• Redundancy: Simplex only
• Contact Inputs: 24
• Group: H2A
• Supply Voltage: 24 VDC
• Voltage Range: 18.5–32 VDC
• Input Filter: 4 ms hardware filter
• Pluggable TB: Yes
• Option Boards: Supports WROB, WROF, WROG
• Mounting: Flat or DIN-rail
• Operating Temperature: -30°C to +65°C

Environmental Specifications

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% RH (non-condensing)

Installation Guide

1. Mount the IS200TDBSH2A on a flat surface or DIN rail in the control cabinet.
2. Install pluggable terminal blocks and connect 24 VDC field contacts.
3. Apply 24 VDC power and verify input status via associated PDIO I/O pack.
4. Install option boards (WROB/WROF/WROG) if additional protection or distribution is required.

FAQ

• Q: Can TDBSH2A supply 48 VDC or 125 VDC?
  A: No, the H2A variant is limited to 24 VDC. Use H4A for 48 VDC or H6A for 125 VDC applications.
• Q: What I/O pack mates with this board?
  A: It is designed for use with IS220PDIOH1A/B discrete I/O packs via DC-37 pin connection.
• Q: Is it suitable for TMR?
  A: No, the IS200TDBSH2A is simplex only. For TMR discrete I/O, use TDBT or TDBU terminal boards.

Selection Tips

• Specify IS200TDBSH2A for simplex Mark VIe discrete input applications requiring 24 VDC wetting voltage.
• Order compatible option boards (WROB/WROF/WROG) for enhanced protection and power distribution.

Data Source: Parameters verified against WOC and distributor specifications. For terminal board group selection (H2A/H4A/H6A), refer to GE Mark VIe I/O installation manual.
