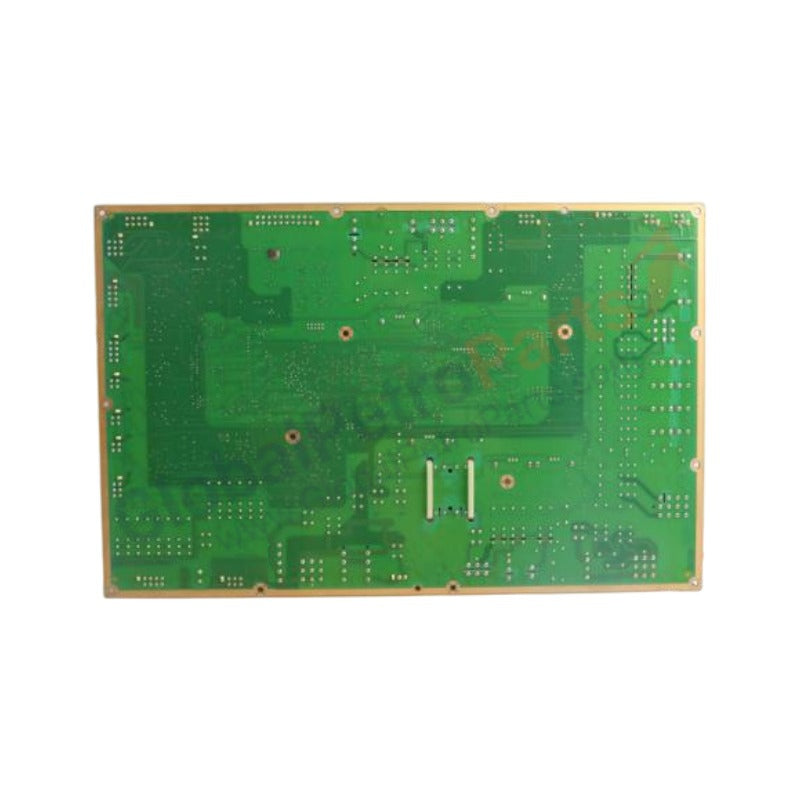

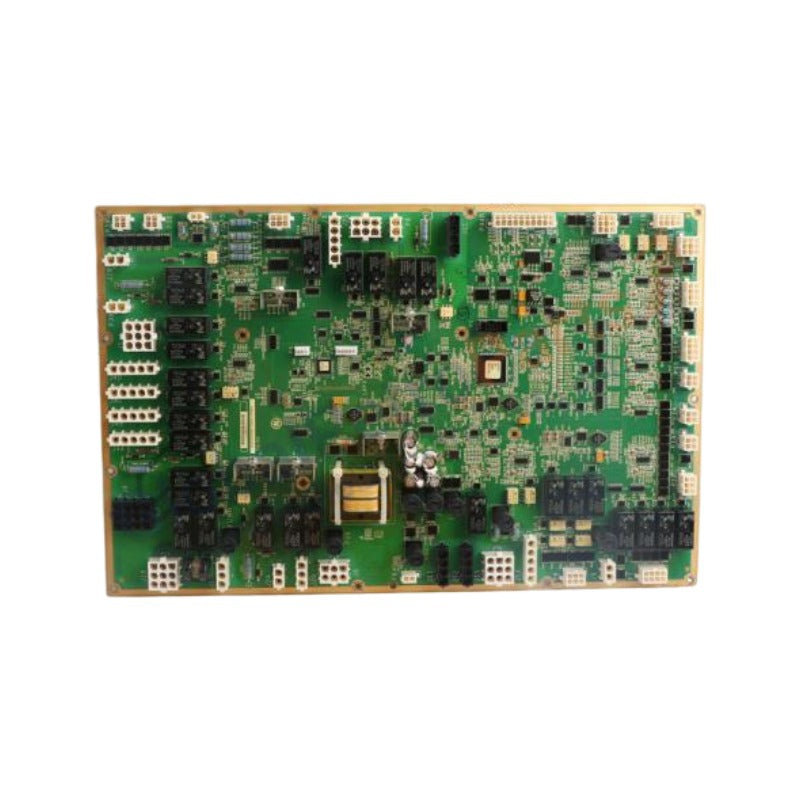

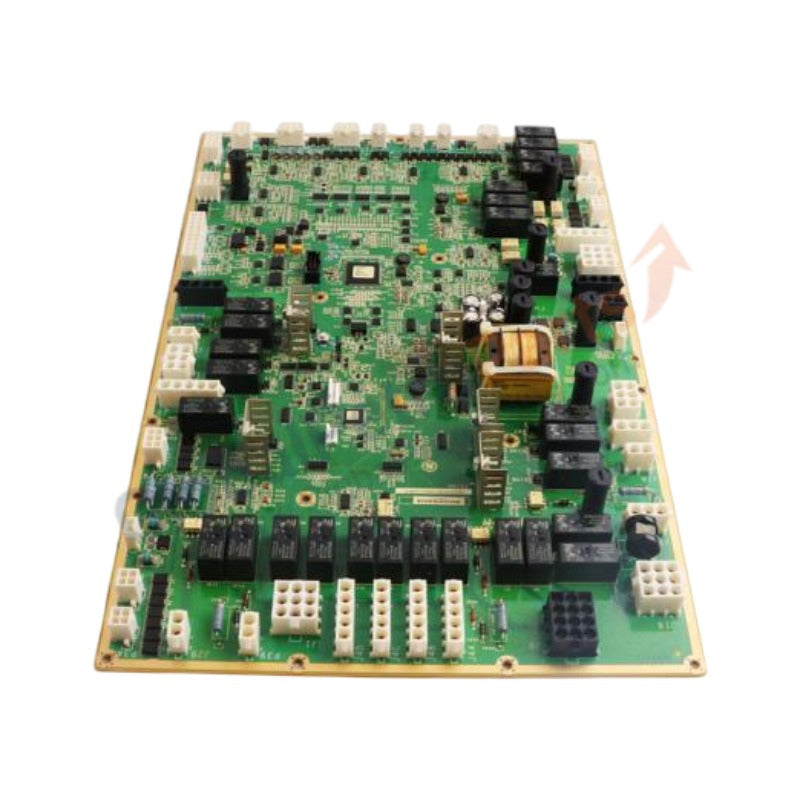

IS200WETBH1ABA GE Speedtronic Mark VI Turbine Control Analog Output Module

Product Overview

The GE IS200WETBH1ABA operates as a high-precision analog output module within the Speedtronic Mark VI turbine control system architecture. This critical circuit board interfaces directly with hydraulic actuators, fuel control valves, and guide vanes to regulate heavy-duty gas or steam turbines. It converts digital processor commands into stable, real-time current or voltage signals, managing precise mechanical positions under variable load conditions. Utilizing this Brand New, original GE component guarantees exact calibration matching and eliminates loop communication failures on your active turbine control panels.

Technical Specifications

The table below specifies the mechanical and electrical parameters for the IS200WETBH1ABA module:

Engineering Advantages

The IS200WETBH1ABA addresses demanding field issues found in fast-transient turbine regulation applications:

• High-Accuracy Loop Stability: Onboard digital-to-analog converters (DAC) eliminate signal drift across the operating temperature profile, preventing position hunting in fuel control valves.

• Galvanic Noise Rejection: Integrated galvanic isolation loops isolate sensitive backplane control processors from field-induced ground loops and lightning-strike spikes.

• Rapid Diagnostics Reporting: Continuous feedback circuit loops track channel current levels, instantly flagging open-circuit or short-circuit wiring faults directly to the master HMI.

• Streamlined Rack Form Factor: The rigid edge-card interface slides directly into standardized Mark VI card cages, securing solid power rail contacts without the need for manual wire harness terminations.

FAQs

• What is the structural difference between the IS200WETBH1ABA and the IS200WETBH1BAA version?

  The "ABA" suffix denotes a specific manufacturing, firmware, or hardware revision layer compared to the "BAA" assembly. While they share core analog output functional properties, you must verify your specific Mark VI system block configuration files within the ControlST or Toolbox workspace to guarantee complete software-driver synchronization.

• Does this analog output module support hot-swapping while the turbine runs?

  No. Removing or inserting the IS200WETBH1ABA while the control rack remains energized risks throwing the turbine system into an asymmetrical loop or causing a complete system trip. Power down the designated control core or place the unit in an offline maintenance mode before replacing the hardware.

• How should field technicians handle the terminal wiring connections for the output loops?

  Field circuits connect through separate termination blocks (such as the TBAI board) that bridge to this module via high-density ribbon cables. Ensure clean cable seating and verify the shield grounding points to prevent electromagnetic radiation from injecting noise into the 4-20mA control loops.
