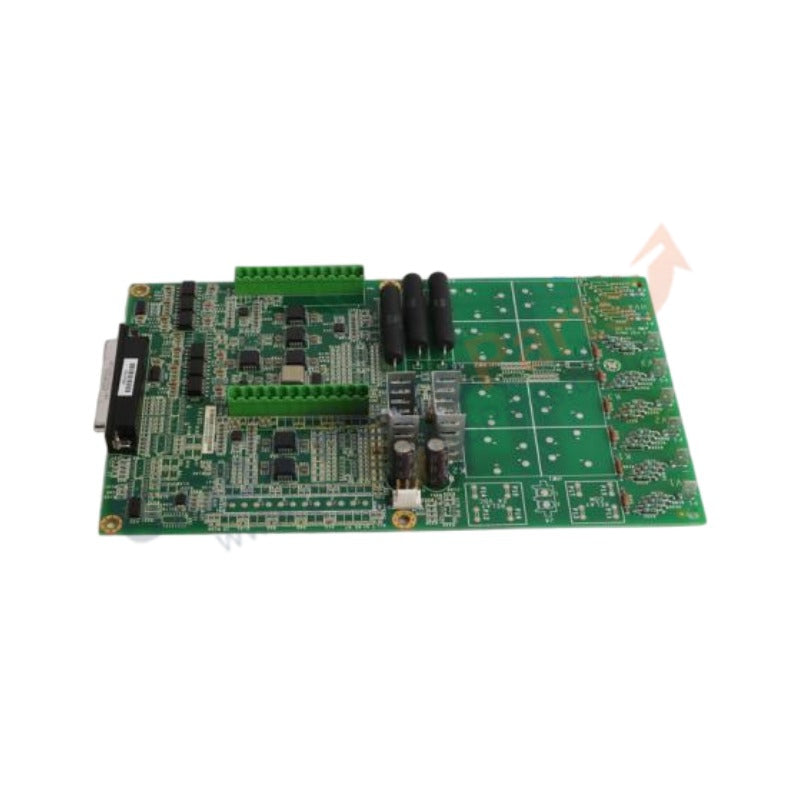

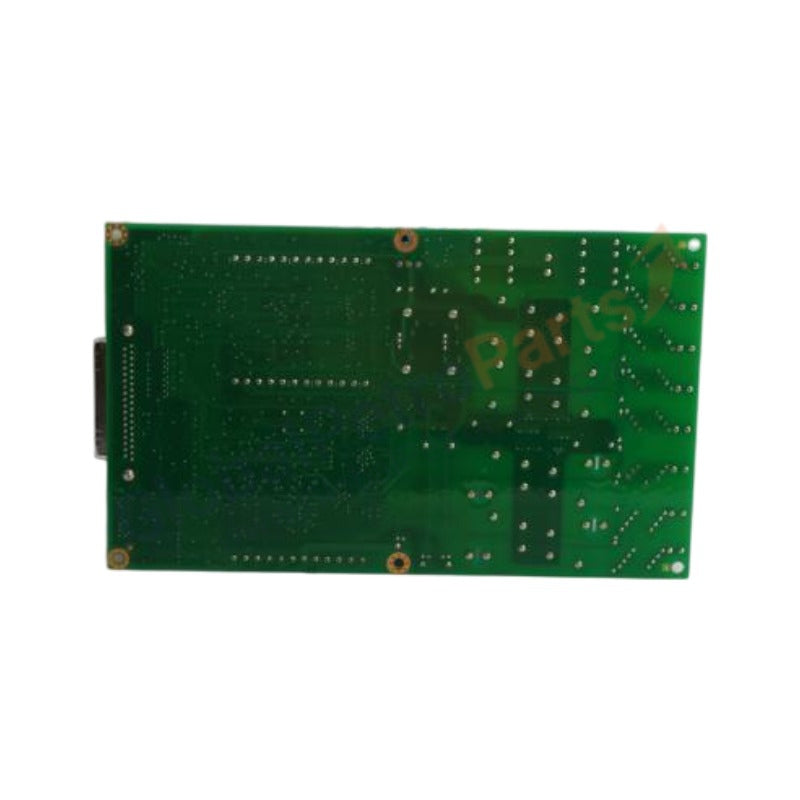

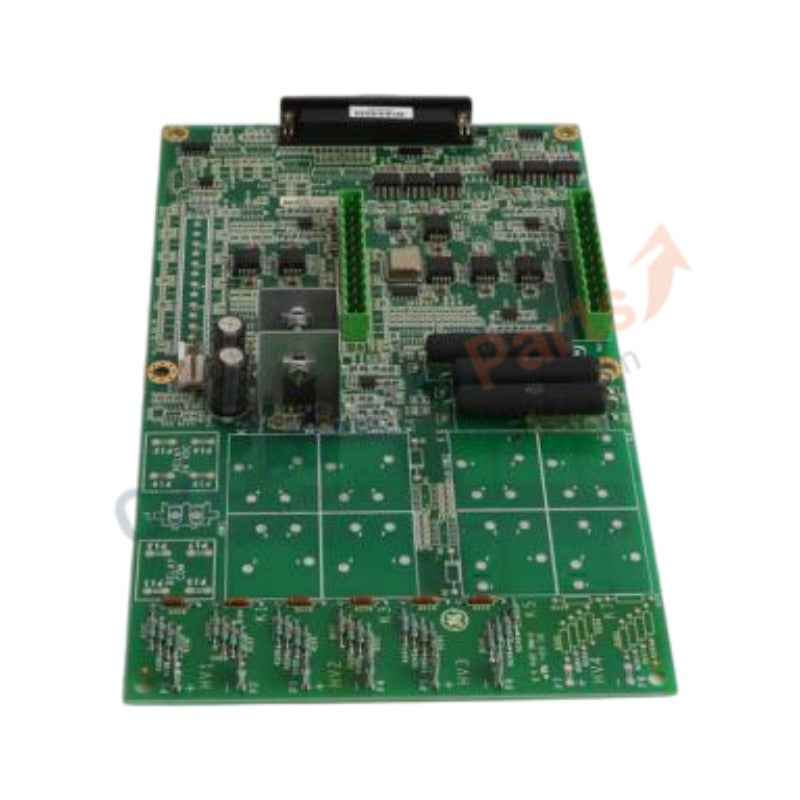

IS210AEAAH3BKE GE EX2100 Series Excitation Control Operation Board

Product Overview

The GE IS210AEAAH3BKE acts as a core excitation control operation board within the General Electric EX2100 generator excitation system. This vital printed circuit board executes critical regulation commands, managing the field current applied to large synchronous generators in utility-scale power plants. It interfaces directly with power conversion modules and feedback networks to maintain stable terminal voltage under fluctuating grid loads. Integrating this Brand New, original GE component guarantees exact timing synchronization and eliminates the voltage sag or excitation trips associated with degraded control hardware.

Technical Specifications

The list below details the electrical, environmental, and mechanical parameters for the IS210AEAAH3BKE board:

• Manufacturer: General Electric (GE)

• Model Number: IS210AEAAH3BKE

• System Family: EX2100 Excitation Control

• Board Function: Operation and Signal Processing Board

• Input Power Voltage: Standard logic-level DC inputs from backplane

• Coating Protection: Factory-applied conformal coating for moisture and particulate isolation

• Interface Ports: Fiber-optic and high-density ribbon connectors for noise-free data transfer

• Operating Temperature Range: 0°C to +60°C (+32°F to +140°F)

• Cooling: Natural convection inside a properly ventilated control enclosure

Engineering Advantages

The IS210AEAAH3BKE introduces specific design solutions that address severe operational challenges in power generation control rooms:

• High-Speed Fiber-Optic Isolation: The board utilizes dedicated fiber-optic ports to transmit timing and firing signals. This completely isolates sensitive microprocessor logic from high-voltage transients on the generator busbar.

• Corrosive Gas Resistance: Heavy conformal coating covers all surface-mount components, preventing copper dendrite growth caused by atmospheric sulfur or humidity in coastal and chemical-heavy plants.

• Elimination of Phase-Angle Drift: Ultra-precise onboard crystal oscillators eliminate phase-angle drift across the entire operating temperature spectrum, securing precise SCR firing angles during rapid load rejections.

• Drop-In Mechanical Fit: The physical board geometry matches standard EX2100 rack slots exactly, enabling fast card guide alignment and lowering mean time to repair (MTTR) during scheduled maintenance outages.

FAQs

• What does the "H3BKE" suffix indicate regarding board revision compatibility?

  The "H3BKE" suffix identifies the specific firmware compatibility layer, component hardware revision, and artwork layout of this assembly. You must match this revision code with your existing system documentation or verify compatibility with your EX2100 control software version prior to full power-up.

• Are specialized handling procedures necessary to prevent board damage during unpacking?

  Yes. Field technicians must maintain complete electrostatic discharge (ESD) protection by utilizing grounded wrist straps and conductive floor mats. Do not touch any exposed circuit traces or connector pins when sliding the board into the control rack.

• Does this operation board feature onboard diagnostic status LEDs?

  Yes. The front edge of the board contains dedicated diagnostic LEDs that indicate power rail health, processor activity, and active communication faults, allowing technicians to diagnose local hardware issues without connecting an external laptop tool.
