IS220PAICH1A | Mark VIe Analog I/O Pack | GE

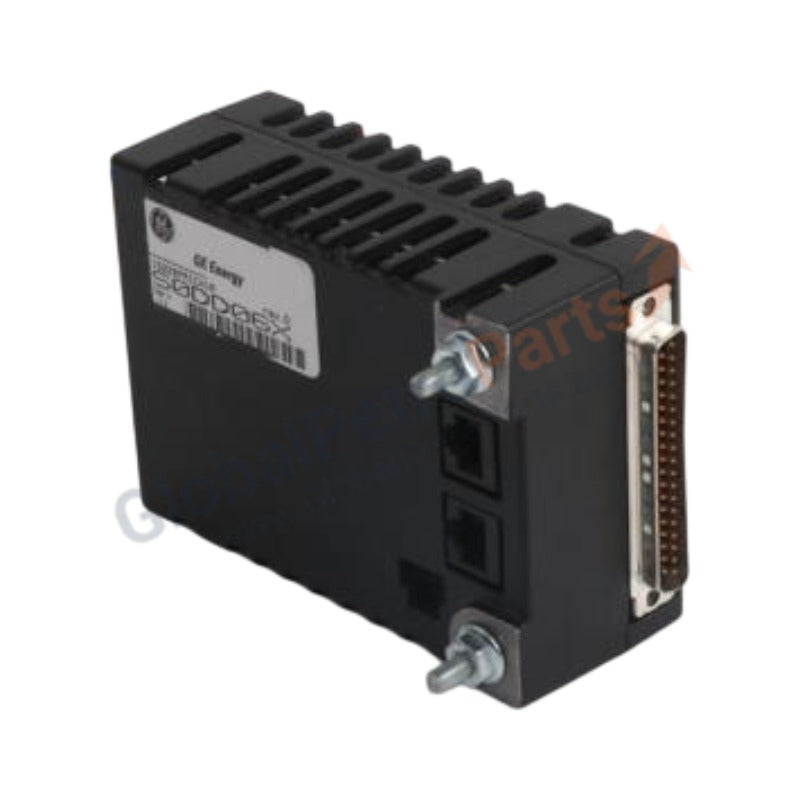

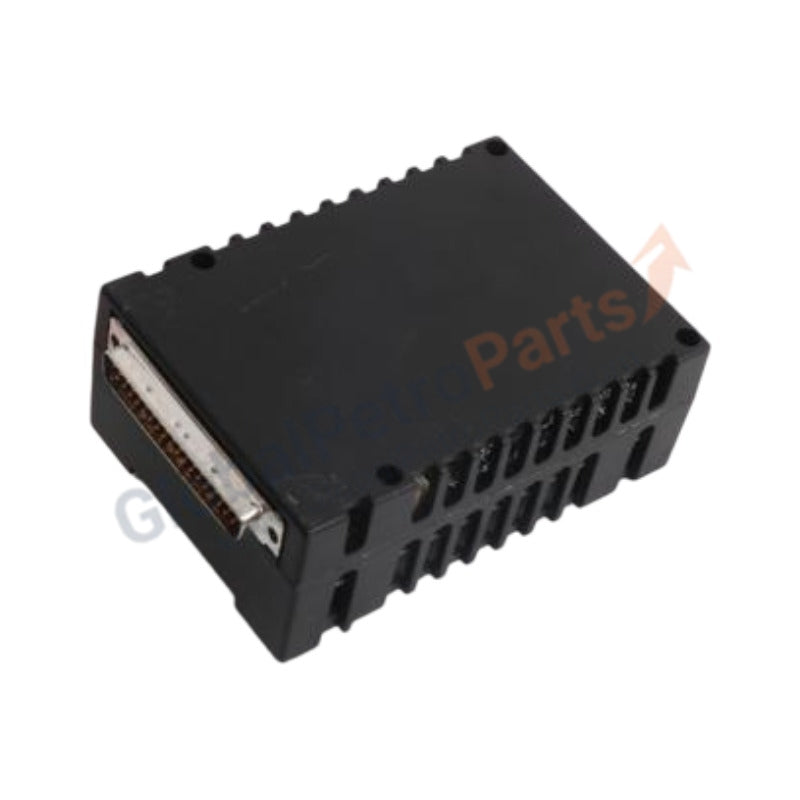

Product Overview

The GE IS220PAICH1A (PAIC) functions as a high-density Analog I/O Pack within the Mark VIe Distributed Control System (DCS). This module provides the critical interface for up to 10 analog inputs and 2 analog outputs, supporting both voltage and current signals (0-20 mA, +/-10 V). It digitizes field sensor data and transmits it over the dual-redundant IONet to the turbine controller. We provide this unit as a 100% Brand New and Original component. By integrating localized A/D conversion and sophisticated signal filtering, the PAIC pack ensures that the control system receives precise, interference-free data from pressure transducers, flow meters, and temperature transmitters.

Technical Specifications

Engineering Advantages

• High-Fidelity Signal Digitization: The IS220PAICH1A utilizes a 16-bit analog-to-digital converter to capture minute fluctuations in process variables. This resolution allows the Mark VIe system to maintain tighter control tolerances in high-precision environments like gas turbine fuel regulation and steam valve positioning.

• Comprehensive Fault Detection: The pack continuously monitors field wiring for open circuits and hardware limits. It detects out-of-range signals immediately and flags diagnostic alarms through the IONet, allowing maintenance teams to identify faulty sensors without manual loop testing.

• Flexible Scaling and Linearization: GE engineers designed the PAIC to handle engineering unit conversion locally. The board performs square root extraction for flow measurements and cold junction compensation for thermocouples (when used with compatible terminal boards), reducing the processing overhead on the main controller.

• Robust Electromagnetic Immunity: To thrive in electrically "noisy" turbine halls, the module incorporates significant shielding and surge suppression. This hardware-level protection prevents high-voltage transients and radio frequency interference (RFI) from corrupting sensitive millivolt analog signals.

FAQs

• Can the IS220PAICH1A support both 2-wire and 4-wire transmitters?

  Yes. When mated with the correct terminal board (such as the TBAH or TBAO), the PAIC pack supports various transmitter configurations. It can provide loop power to 2-wire devices or accept externally powered 4-wire signals.

• How does the H1A revision improve upon older analog packs?

  The H1A revision utilizes updated semiconductor components that offer lower thermal drift. This ensures that the analog calibration remains stable even as the internal cabinet temperature fluctuates during high-load turbine operations.

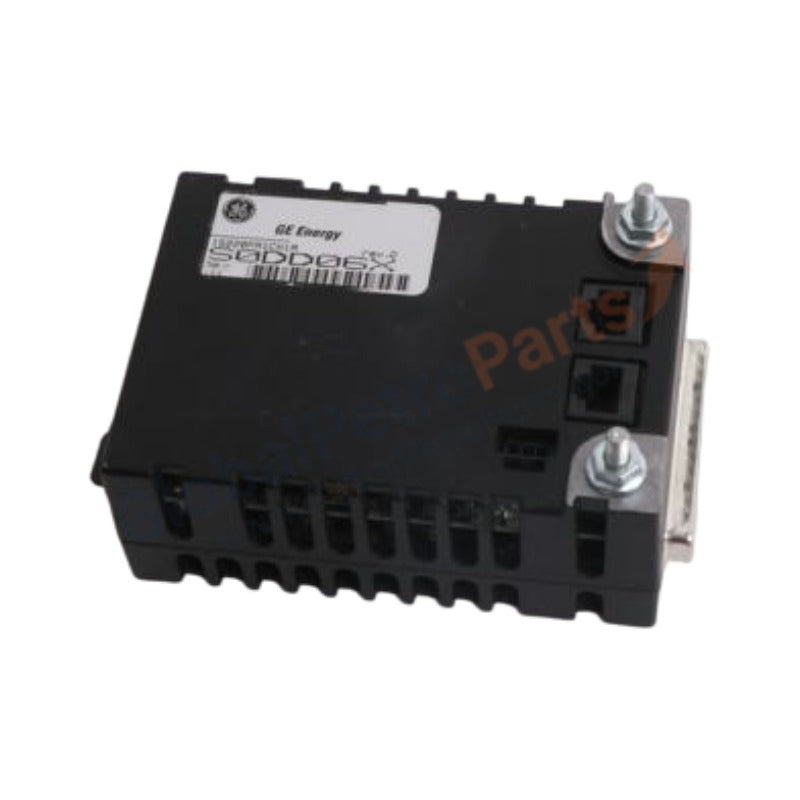

• What is the significance of the dual Ethernet ports on the base?

  These ports facilitate the Mark VIe redundant architecture. The pack simultaneously communicates with the R, S, and T control cores over two independent IONet cables, ensuring the turbine remains operational even if one network path fails.

• Does the module require manual calibration during installation?

  No. Each IS220PAICH1A contains factory-calibrated constants stored in non-volatile memory. Upon startup, the Mark VIe controller verifies these constants and applies any user-defined offsets configured in the ToolboxST™ software.
