IS220PAICH2A | GE Fanuc | Analog I/O Module with Ethernet Connectivity

Product Description

The GE Fanuc IS220PAICH2A is a versatile analog input/output module designed for precision measurement and control in industrial automation systems. It supports multiple input configurations, current loop outputs, and Ethernet communication, making it suitable for integration into distributed control architectures.

Technical Specifications

• Manufacturer: GE Fanuc

• Part Number: IS220PAICH2A

• Product Type: Analog I/O Module

• Inputs:

• 10 analog input channels

• First 8 inputs configurable for 5 V, 10 V, or 4–20 mA

• Last 2 inputs configurable for 1 mA or 4–20 mA

• Load terminal resistors located on terminal board

• Outputs:

• 2 current loop outputs (0–20 mA)

• First output supports extended range up to 200 mA

• Connectivity:

• Dual RJ-45 Ethernet ports for communication

• 3-pin connector for power supply

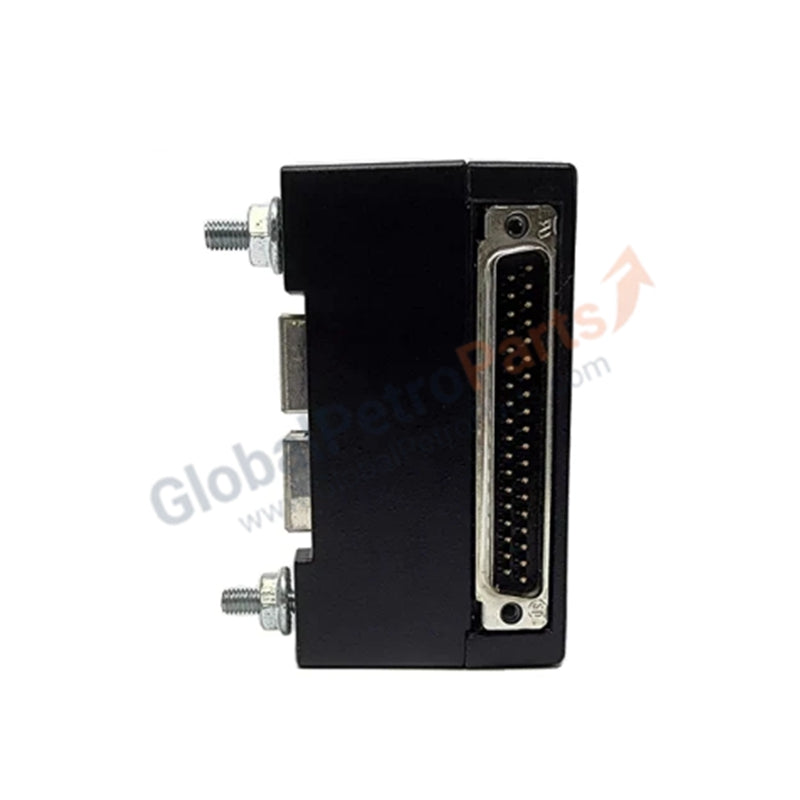

• DC-37 pin connector for field devices

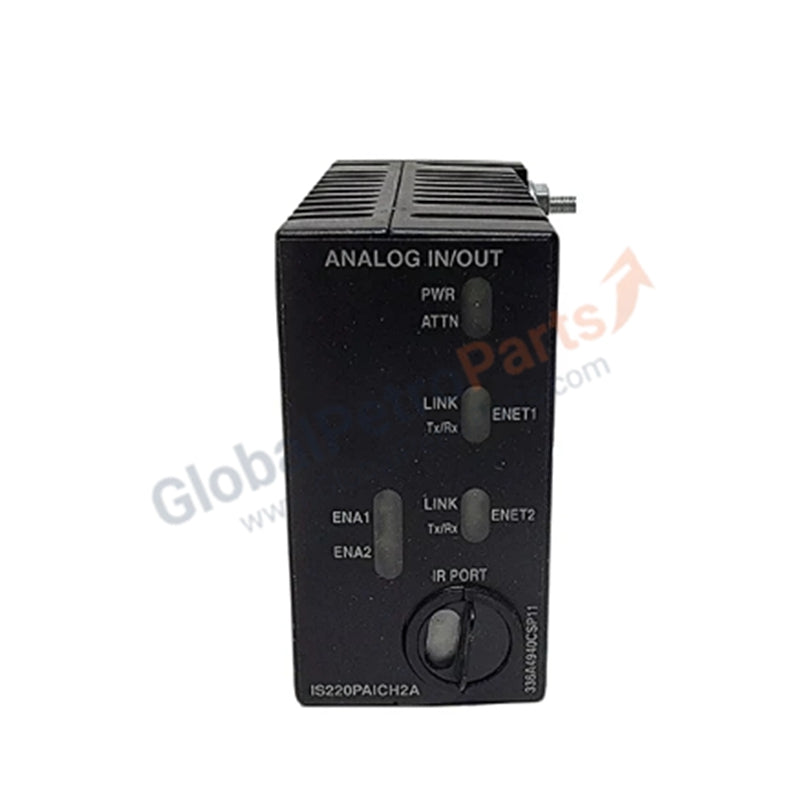

• LED Indicators: Diagnostic LEDs for module status and communication health

• Environmental Ratings:

• Operating temperature: -30 °C to 65 °C (-22 °F to 149 °F)

• Humidity: 5% to 95% non-condensing

• Dimensions:

• Length: 170 mm (6.69 in.)

• Width: 100 mm (3.94 in.)

• Height: 35 mm (1.38 in.)

Application Scenarios

This module is ideal for process industries such as power generation, oil and gas, and chemical manufacturing. It enables accurate analog signal acquisition and control, while Ethernet connectivity ensures seamless integration into modern distributed control systems.

Comparison with Similar Modules

• IS220PAICH2A: 10 analog inputs, 2 current loop outputs, Ethernet communication.

• Other GE Fanuc I/O modules: May provide digital I/O or specialized sensor interfaces but lack extended current output capability.

FAQ

Q: Can the IS220PAICH2A handle both voltage and current inputs?  A: Yes, it supports configurable voltage ranges (5 V, 10 V) and current ranges (1 mA, 4–20 mA).

Q: What is the maximum current output supported?  A: The first output channel can deliver up to 200 mA, while the second supports up to 20 mA.
