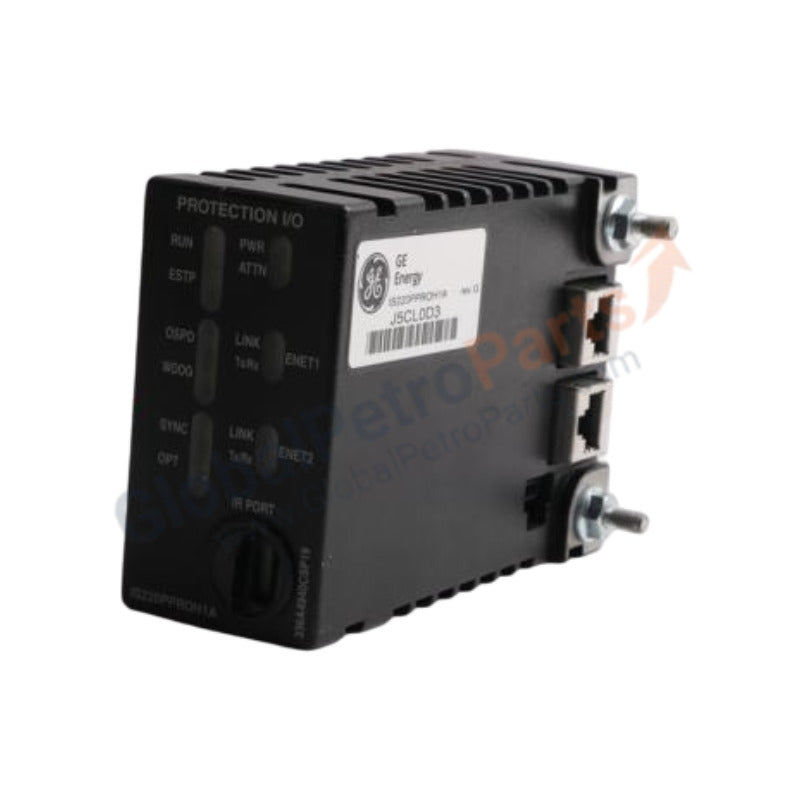

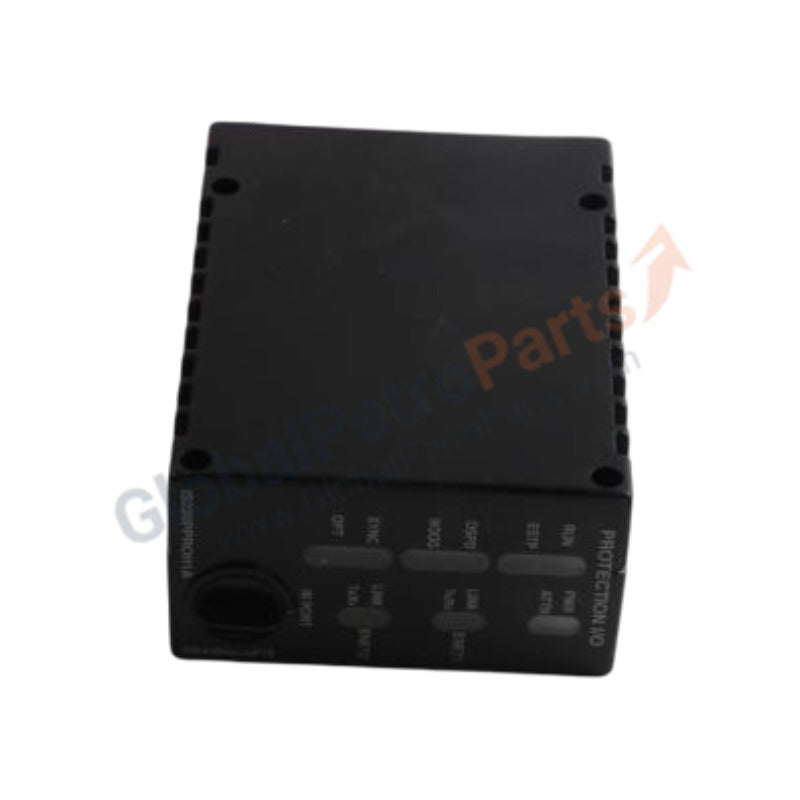

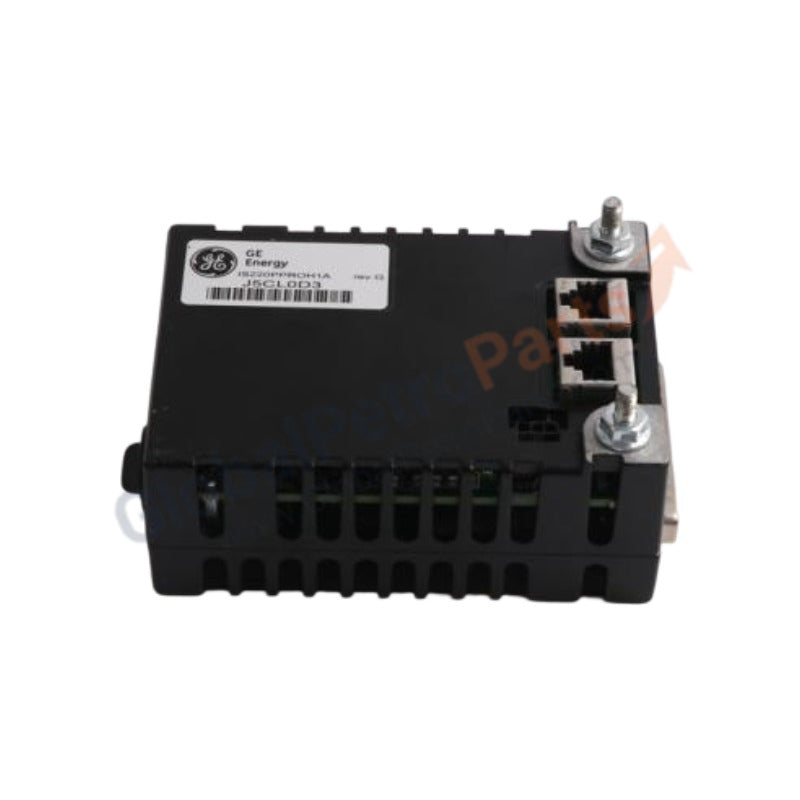

IS220PPROH1A Speedtronic Mark VIe Emergency Turbine Protection I/O Pack GE

Product Overview

The GE IS220PPROH1A operates as a dedicated Emergency Turbine Protection I/O Pack within the General Electric Speedtronic Mark VIe control infrastructure. This specialized safety module provides completely independent hardware backup protection for large-scale steam and gas turbines. It monitors critical trip parameters, executing high-speed calculations to detect dangerous shaft overspeed conditions, deceleration rates, and hazardous flame dropouts. Deploying this Brand New, authentic GE component guarantees absolute execution of safety interlocks, preventing catastrophic mechanical destruction without relying on the primary control processors.

Technical Specifications

The table below establishes the mechanical properties, network interfaces, and electrical boundaries of the IS220PPROH1A protection pack:

Engineering Advantages

The IS220PPROH1A introduces specific hardware isolation layouts that solve complex safety vulnerabilities found in high-availability power plants:

• Complete Processor Decoupling: Internal microprocessors run protection code completely isolated from the primary control loops. Therefore, an unmanaged software hang in the main controller cannot block an emergency safety shutdown.

• Microsecond-Level Speed Latency: Onboard pulse counters read raw magnetic pickup signals continuously, dropping the emergency trip relay within microseconds of a detected overspeed threshold violation.

• Direct IONet Ethernet Bridging: Dual RJ45 network links feed real-time diagnostics directly into the distributed control network, bypassing the need for an underlying centralized VME rack backplane.

• Severe Climate Deployment: High-grade electronic components maintain strict operating tolerances from freezing sub-zero startup environments up to high-ambient cabinet temperatures, removing the need for external cooling fans.

FAQs

• What specific field terminals interface directly with the IS220PPROH1A pack?

  The IS220PPROH1A mounts directly onto specialized protection terminal boards, such as the SPRO or TPRO modules. This direct-mating architecture provides clear terminal blocks for speed sensors, E-stop loops, and hydraulic trip solenoid outputs, separating field wiring strain from the pack circuitry.

• How does this protection pack handle Triple Modular Redundant (TMR) safety voting?

  In a standard safety architecture, three identical IS220PPROH1A packs mount side-by-side onto the terminal baseboard. The physical hardware executes a two-out-of-three (2oo3) logic vote to actuate the hydraulic trip valves, ensuring that a single failing I/O pack cannot cause an accidental turbine trip or block a valid safety command.

• Can technicians swap an offline IS220PPROH1A pack while the turbine runs online?

  Yes, provided your system utilizes a Triple Modular Redundant layout. Technicians can unbolt and replace a single faulty protection pack while the remaining two online modules maintain full protection vigilance over the active turbine shaft. Ensure complete compliance with site safety manuals before loosening the pack retaining screws.
