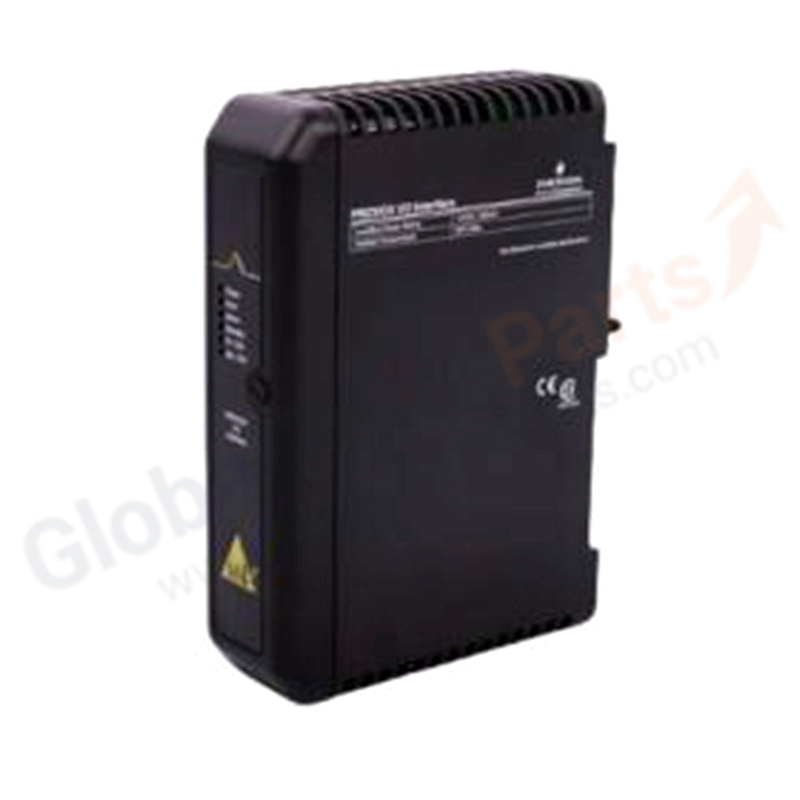

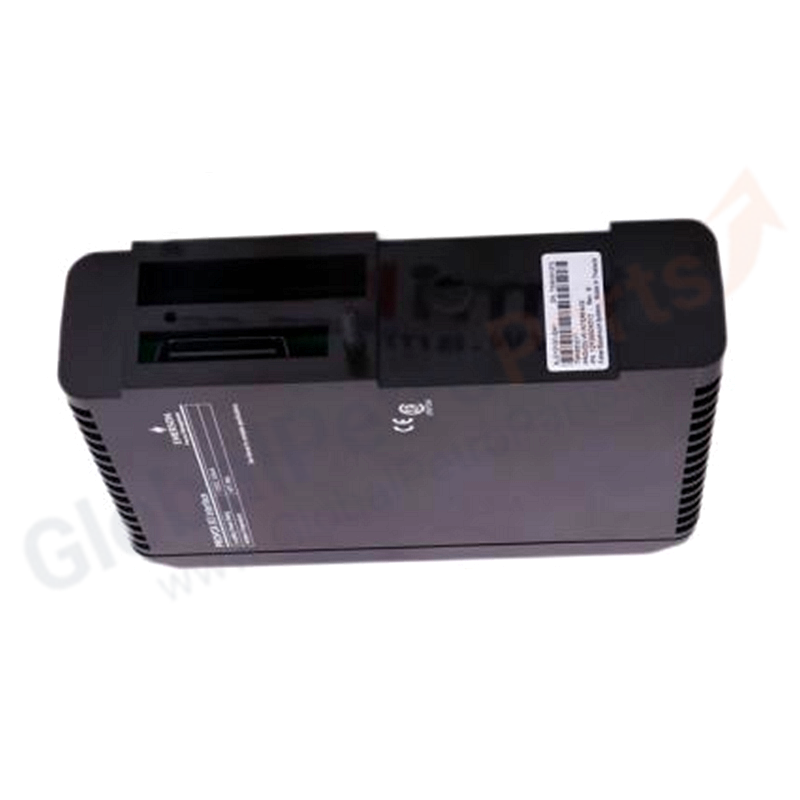

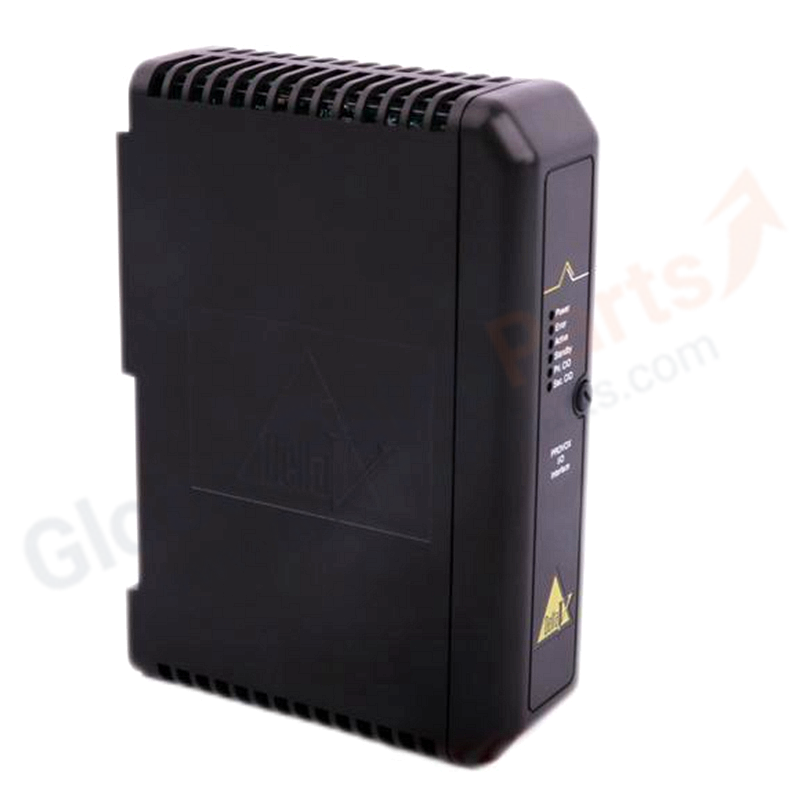

KJ2101X1-BA1 | Emerson DeltaV Provox I/O Interface Module

Overview

The Emerson KJ2101X1-BA1 is a Provox Input/Output Interface Module designed for integration between legacy Provox systems and DeltaV™ distributed control systems. It enables efficient data exchange and supports controller redundancy for industrial automation applications.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ2101X1-BA1
• Type: Provox I/O Interface Module / Provox Input/Output Interface Card
• Power (per ControlTech): 24 VDC; Output 0–10 VDC; Output Current 0–5 A; Frequency 0–1000 Hz
• Power (per InnoPLCSync): 12.0 VDC at 500 mA maximum; Fuse Protection 3.0 A non-replaceable
• Power (per PLCMasters): Local Bus Power 24 VDC; Field Power up to 4 A
• Compatibility: DeltaV MQ, MX controllers; Provox and DeltaV systems
• Redundancy: Supports 1:1 controller redundancy
• Dimensions: 4.3 × 12.6 × 16 cm
• Weight: 0.25 – 0.55 kg (varies by source)

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +70 °C
• Shock: 10 g (PLCMasters) / 15 g (InnoPLCSync), ½ sine wave for 11 ms
• Vibration: 1 mm peak-to-peak (2–13.2 Hz / 5–16 Hz); 0.7 g (13.2–150 Hz) / 0.5 g (16–150 Hz)
• Relative Humidity: 5 % – 95 % non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• Hazardous Area: ATEX and IECEx certified (per PLCMasters)

Key Features

• Enables connection between Provox legacy I/O and DeltaV modern controllers
• Supports controller redundancy for high-availability architectures
• Integrates with DeltaV Explorer and Control Studio diagnostics
• Reduces wiring costs by bridging Provox distributed I/O to DeltaV

FAQ

Q: What is the primary function of this module?
A: It acts as a serial buffer/interface card that allows DeltaV MQ/MX controllers to communicate with Provox distributed I/O subsystems.

Q: Which controller types are supported?
A: Per InnoPLCSync, it is compatible with DeltaV MQ and MX controllers.

Q: Can this module be hot-swapped?
A: Refer to the DeltaV system manual for online replacement procedures. De-energizing the local bus is recommended before removal.

Installation Guidelines

1. Install the module in a DeltaV M-series or compatible rack.
2. Connect Provox distributed I/O serial cabling to the interface port.
3. Verify controller redundancy configuration if deploying in a redundant pair.
4. Confirm 12 VDC or 24 VDC local bus power matches your specific module revision.

Selection Tips

• Order KJ2101X1-BA1 when migrating or interfacing Provox I/O with DeltaV MQ/MX controllers.
• Verify power requirements before installation—supplier data conflicts on whether this module uses 12 VDC or 24 VDC local bus power.
• Confirm your specific module revision supports the required Provox I/O type (Control I/O or Distributed MUX I/O).
