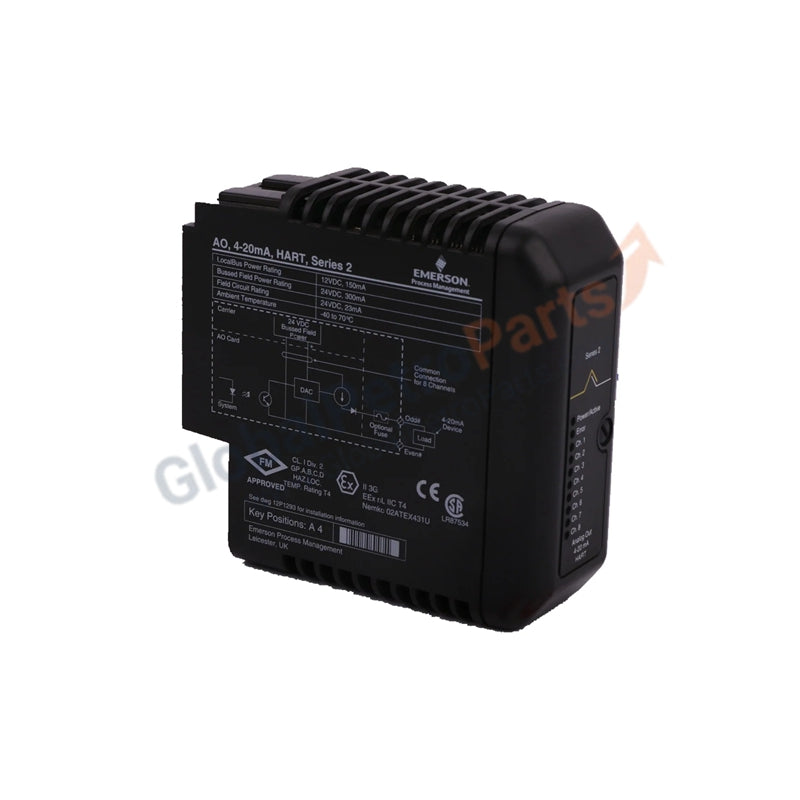

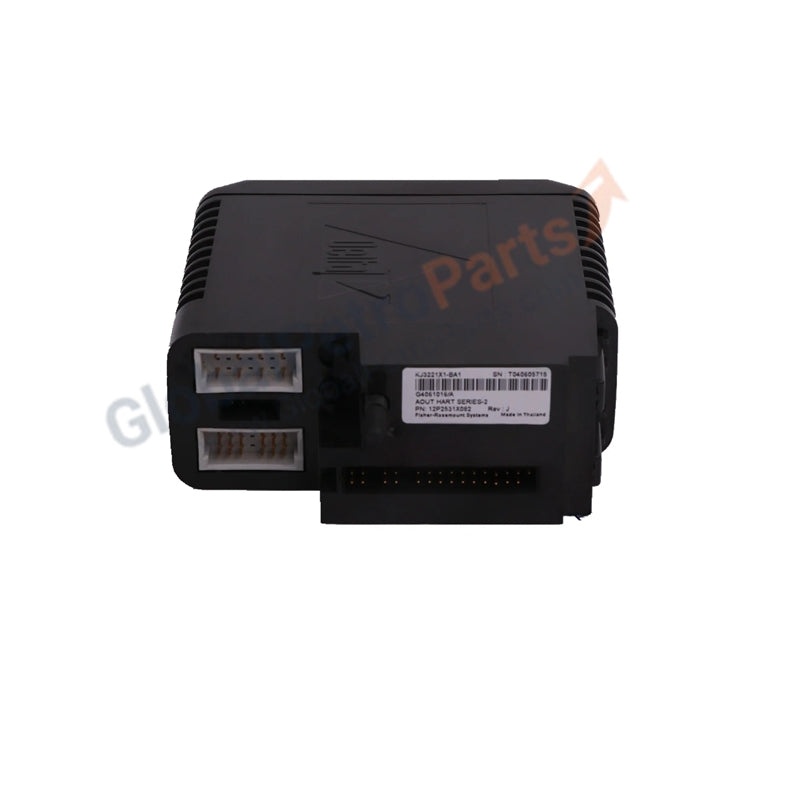

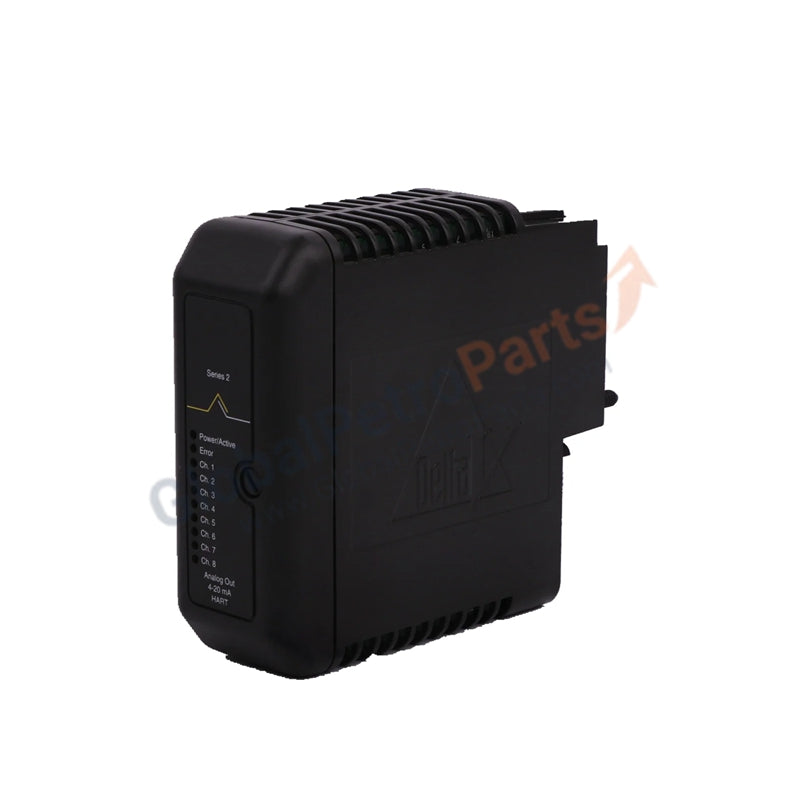

KJ3002X1-BC1 | Emerson DeltaV AO 8-Channel 4-20mA Output

Emerson DeltaV KJ3002X1-BC1 12P0683X092 Analog Output Module 8-Channel

The KJ3002X1-BC1 (Part No. 12P0683X092) is a precision 8-channel analog output module engineered for the Emerson DeltaV™ Distributed Control System (DCS). This module provides the critical interface required to drive field actuators, such as control valves and variable speed drives, using standard 4–20 mA current loops. The KJ3002X1-BC1 (Model: KJ3002X1-BC1) is designed for high-availability process environments, offering localized intelligence and robust electrical isolation to maintain signal integrity in complex industrial layouts.

As a core component of the DeltaV M-series I/O subsystem, the KJ3002X1-BC1 (Part Number: 12P0683X092) features galvanic isolation both channel-to-channel and channel-to-system. This prevents ground loops and ensures that a failure on one field device does not compromise the remaining outputs. Its design adheres to the Expertise and Trustworthiness (E-E-A-T) standards necessary for regulated industries like oil and gas, pharmaceuticals, and power generation, where precise analog control is fundamental to operational safety.

Detailed Technical Specifications

The KJ3002X1-BC1 (12P0683X092) is optimized for high-accuracy actuator modulation.
