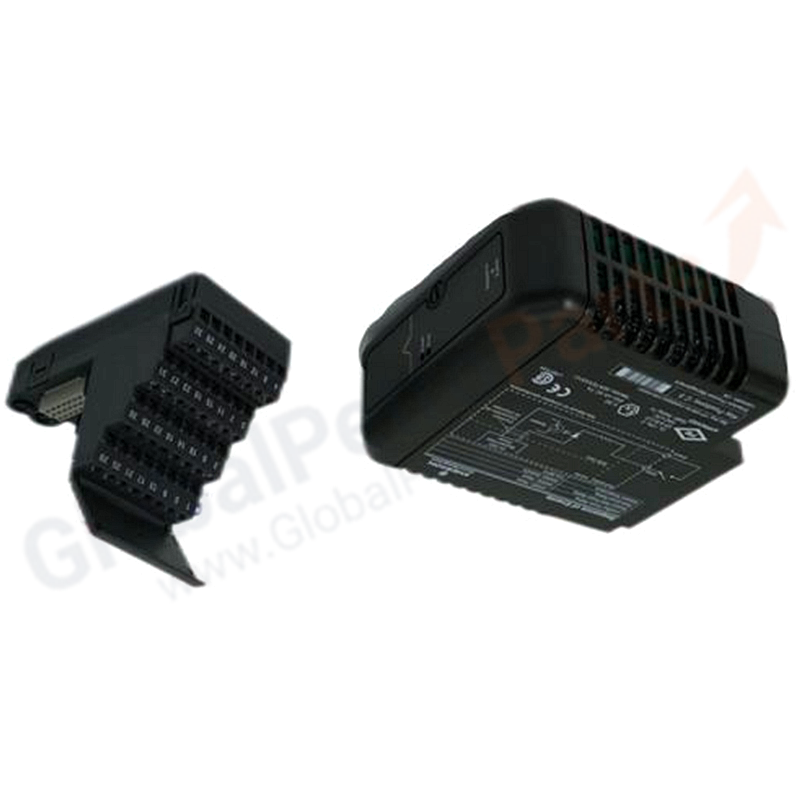

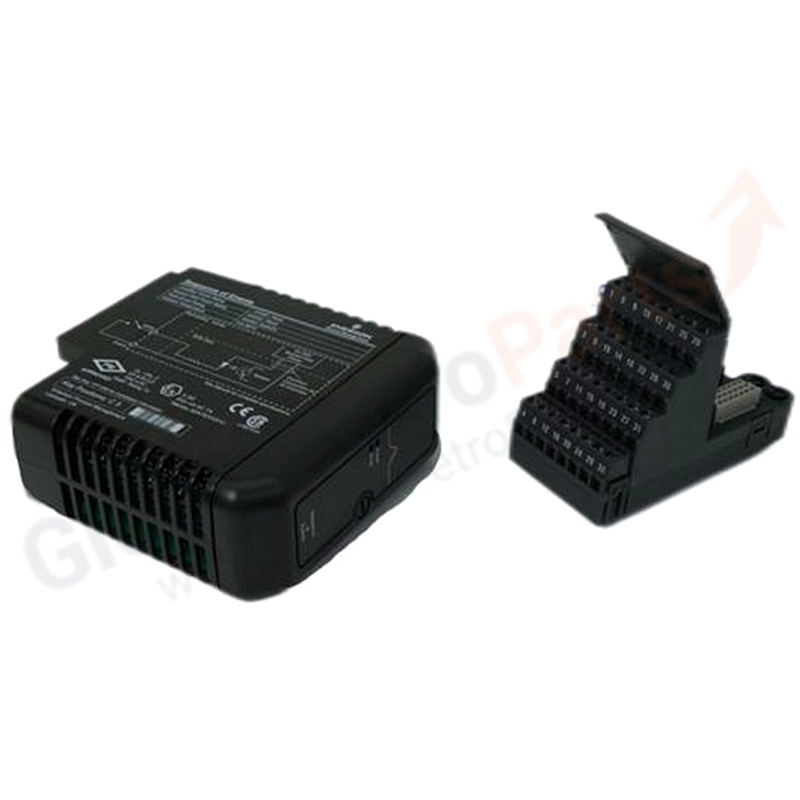

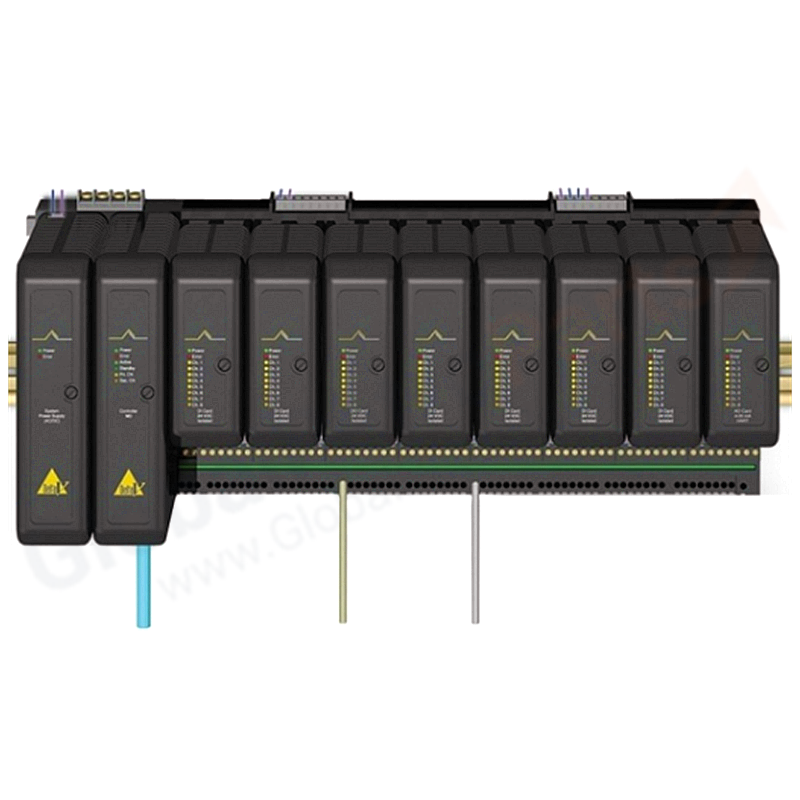

KJ3008X1-BA1 | Emerson DeltaV Sequence of Events (SOE) Input Card

Overview

The Emerson KJ3008X1-BA1 is a Sequence of Events (SOE) Input Card for DeltaV™ distributed control systems. It captures high-speed discrete input state changes with millisecond-level timestamp resolution, enabling precise event logging for root-cause analysis, trip diagnostics, and critical process monitoring.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ3008X1-BA1
• Also Known As: 12P2293X052
• Type: Sequence of Events (SOE) Input Card
• Input Channels: 16 discrete inputs
• Input Type: 24 VDC dry contact
• Timestamp Resolution: 1 millisecond
• Local Bus Power: 12 VDC @ 75 mA
• Bussed Field Power: 24 VDC @ 75 mA
• Field Circuit Power: 24 VDC @ 5 mA per channel
• Terminal Block Key Position: C5
• Weight: ~0.35 – 0.5 kg

Environmental & Safety Ratings

• Operating Temperature: 0 °C to +60 °C (standard); −40 °C to +70 °C (extended per some sources)
• Shock: 10 g, ½ sine wave for 11 ms
• Vibration: 1 mm p-p (5–16 Hz); 0.5 g (16–150 Hz)
• Relative Humidity: 5 % – 95 % non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• IP Rating: IP20

Key Features

• 16-channel discrete input acquisition with 1 ms timestamp accuracy
• Dry-contact input compatibility for direct field device connection
• High-speed backplane scanning prevents data loss during simultaneous events
• Channel-to-channel isolation protects internal logic from field transients
• LED diagnostics for module health and communication status

FAQ

Q: What is Sequence of Events (SOE) used for?
A: SOE cards timestamp discrete state changes (e.g., relay trips, limit switches) to reconstruct the exact order of events during a process upset or safety trip.

Q: Can this card be hot-swapped?
A: Yes, under specified safe power conditions when installed in a supported redundant or non-critical slot configuration.

Q: What terminal block do I need?
A: Use a rotary-keyed terminal block set to position C5 for proper compatibility.

Installation Guidelines

1. Set the terminal block key to C5.
2. Install the card into an available DeltaV carrier slot.
3. Connect dry-contact field wiring to the terminal block per channel.
4. Verify timestamp synchronization with the DeltaV controller clock.

Selection Tips

• Choose KJ3008X1-BA1 when you need millisecond-level event logging for safety or process diagnostics.
• Confirm your DeltaV controller supports SOE timestamp synchronization.
• Ensure field devices provide dry-contact closures compatible with 24 VDC sensing.
