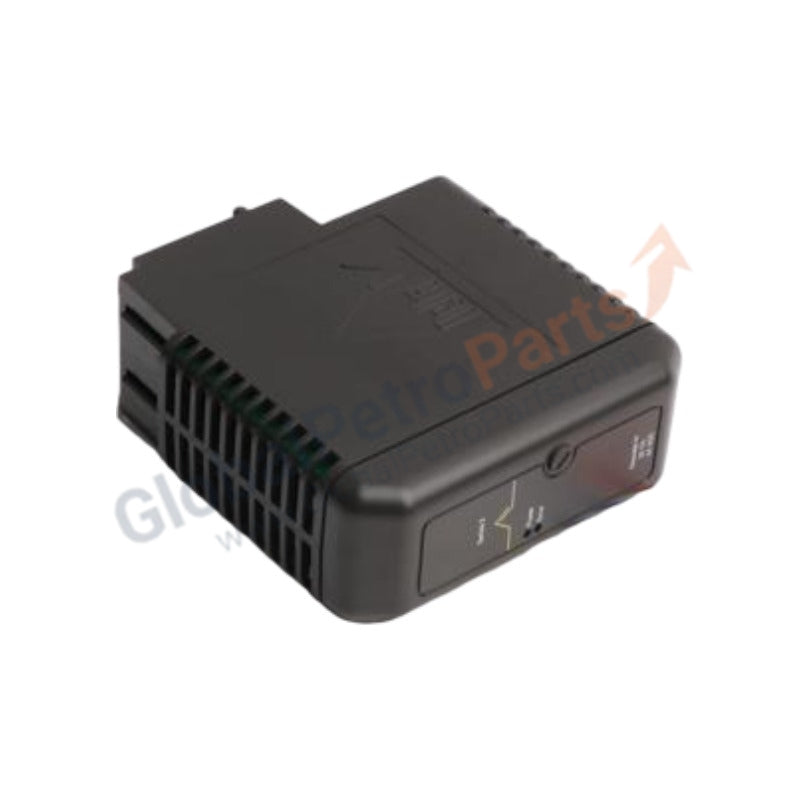

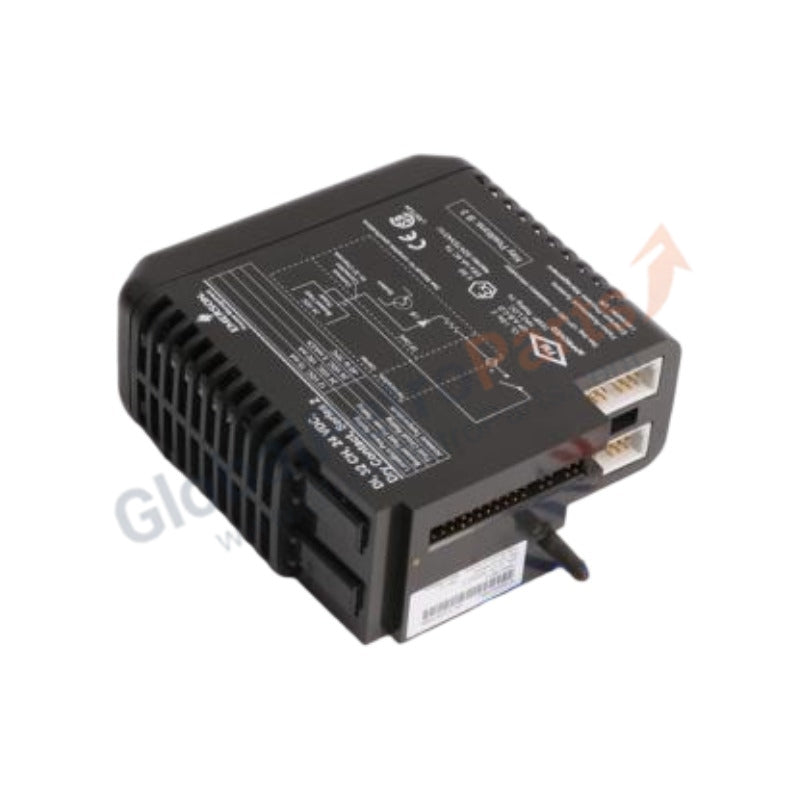

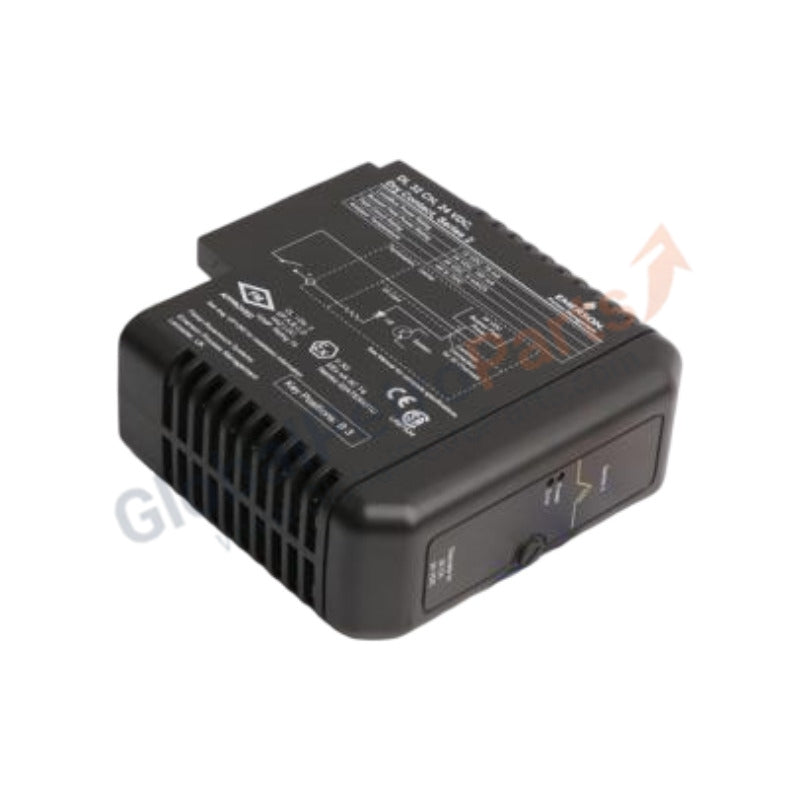

KJ3203X1-BA1 | Emerson DeltaV | 32-Channel 24 VDC Dry Contact Card
  • KJ3203X1-BA1 | Emerson DeltaV | 32-Channel 24 VDC Dry Contact Card
  • KJ3203X1-BA1 | Emerson DeltaV | 32-Channel 24 VDC Dry Contact Card
  • KJ3203X1-BA1 | Emerson DeltaV | 32-Channel 24 VDC Dry Contact Card
KJ3203X1-BA1 | Emerson DeltaV | 32-Channel 24 VDC Dry Contact Card

Emerson

KJ3203X1-BA1 | Emerson DeltaV | 32-Channel 24 VDC Dry Contact Card

10 left

  • Manufacturer: Emerson

  • Product No.: KJ3203X1-BA1

  • Product Type: 32-Channel 24 VDC Dry Contact Card

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

The KJ3203X1-BA1 is a 32-channel 24 VDC dry contact card manufactured by Emerson DeltaV. It provides dependable discrete output control for automated industrial systems. Each channel delivers stable 24 VDC signals with robust isolation. The card fits standard Emerson DeltaV CHARM racks, ensuring efficient integration. Its compact form factor allows easy installation in dense control cabinets.

Technical Specifications

Specification Details
Model KJ3203X1-BA1
Manufacturer Emerson DeltaV
Product Category 32-Channel 24 VDC Dry Contact Card
Dimensions (L × W × H) 213 mm × 95 mm × 25 mm
Weight 0.55 kg
Number of Channels 32
Channel Type Dry contact discrete output
Output Voltage 24 VDC
Output Current per Channel 0.5 A max
Input Voltage 24 VDC
Power Consumption Approx. 3 W fully loaded
Isolation 500 VDC channel-to-channel and channel-to-backplane
Material High-strength fiberglass PCB with gold-plated connectors
Mounting Options Emerson DeltaV CHARM baseplate or DIN rail compatible
Connector Type Standard 32-pin CHARM module interface
LED Indicators Per-channel status indication
Operating Temperature 0°C to 60°C
Storage Temperature -20°C to 70°C
Humidity Range 5% to 95% non-condensing
Vibration Resistance 5–500 Hz, 2 G peak
Shock Resistance 10 G, 11 ms half-sine
Certifications CE, RoHS
Environmental Rating IP20 (protection against solid objects >12 mm, no water protection)
Recommended Ambient Conditions Indoor industrial use, minimal vibration



FAQ

Q1: Is the KJ3203X1-BA1 brand new and original?
A1: Yes, it is fully original and manufactured by Emerson DeltaV.

Q2: How quickly can you ship this 32-channel card?
A2: We typically ship within 3 days to 2 weeks, depending on order size.

Q3: What shipping methods do you use?
A3: Common carriers include DHL, FedEx, and UPS for reliable delivery.

Q4: What if there is a quality issue with the card?
A4: We support returns within 30 days if any quality issues arise.

Q5: What is the maximum output current per channel?
A5: Each channel can handle up to 0.5 A at 24 VDC.

Q6: What are the operating temperature limits?
A6: The card operates safely between 0°C and 60°C.

Q7: Can this card be used with all DeltaV CHARM baseplates?
A7: Yes, it is fully compatible with standard Emerson DeltaV CHARM baseplates.
