Product Description

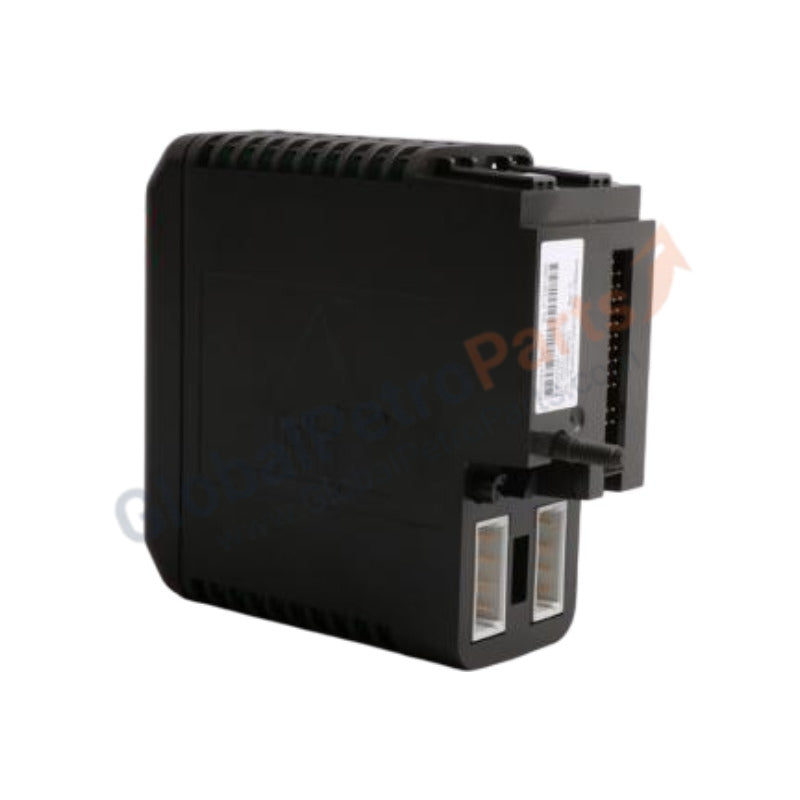

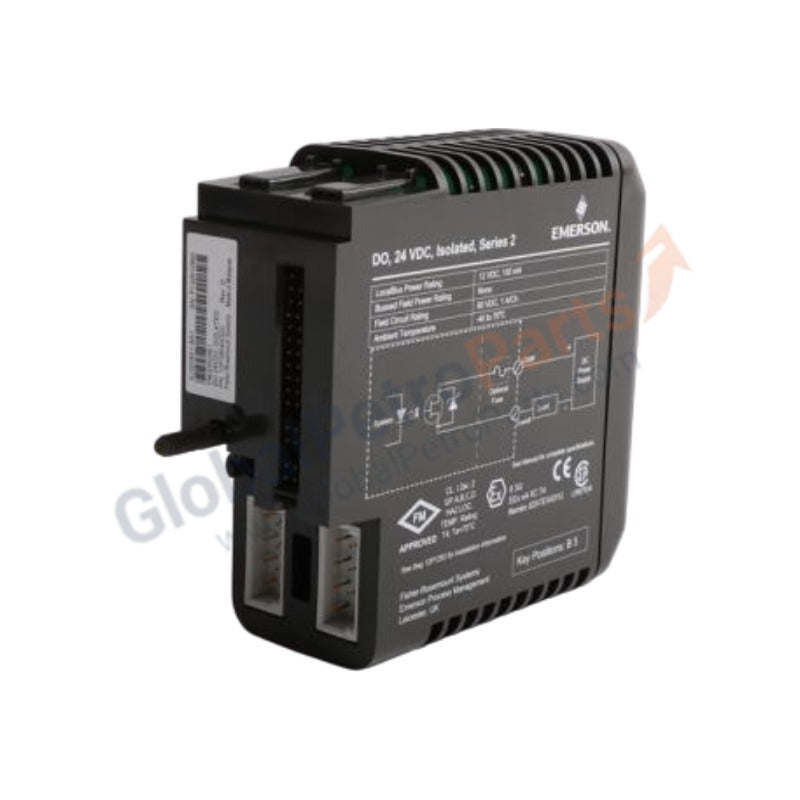

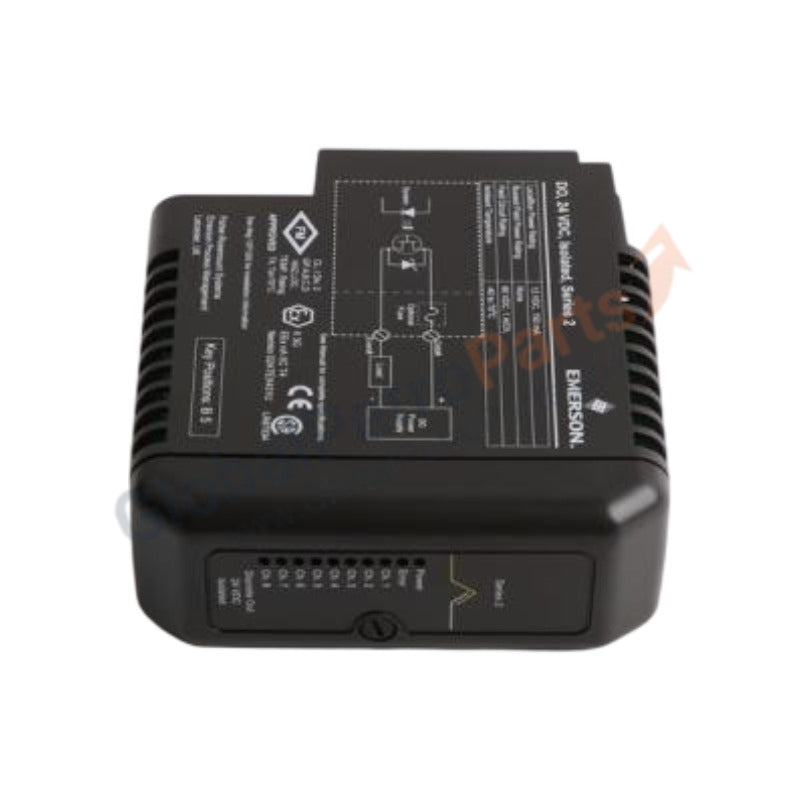

KJ3208X1-BA1 from Emerson integrates into the DeltaV system as a high-performance discrete output module.
This module delivers eight isolated output channels designed for precise control of field devices.
It supports 24 VDC output signals and ensures stable switching performance across industrial automation systems.
Moreover, KJ3208X1-BA1 meets hazardous area standards, which allows deployment in Zone 2 environments safely.
Engineers use this module widely for actuators, relays, and solenoid-driven control applications.
Technical Specifications
| Parameter |
Detailed Specification |
| Model |
KJ3208X1-BA1 |
| Manufacturer |
Emerson |
| Series |
DeltaV |
| Module Type |
Discrete Output (DO) Module |
| Output Channels |
8 isolated channels |
| Output Voltage |
24 VDC nominal |
| Maximum Field Voltage |
60 VDC |
| Output Current |
1 A per channel |
| Output Type |
Sourcing discrete output |
| Channel Isolation |
Electrical isolation between channels and system |
| LocalBus Voltage |
12 VDC |
| LocalBus Current |
150 mA |
| Total Power Consumption |
Approx. 1.8 W typical |
| Hazardous Certification |
II 3G Ex nA IIC Gc |
| ATEX Certificate |
FM12ATEX0090U |
| IECEx Certificate |
IECEx FMG 12.0035U |
| Operating Temperature |
-40°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5% to 95% non-condensing |
| Protection Rating |
IP20 |
| Contamination Class |
ISA-S71.04 Class G3 |
| Shock Resistance |
10g, 11 ms half-sine |
| Vibration |
1 mm (2–13.2 Hz), 0.7g (13.2–150 Hz) |
| Terminal Block Key Position |
B5 |
| Mounting Method |
DeltaV I/O carrier installation |
| Module Dimensions |
Approx. 107 mm × 41 mm × 105 mm |
| Module Weight |
Approx. 0.25 kg |
| Hot Swap Capability |
Not supported in hazardous areas |
| Field Circuit Requirement |
De-energize before installation or removal |
| Compliance Standards |
ATEX, IECEx, DeltaV system standards |
| Maintenance Requirement |
No calibration required, no serviceable parts |
FAQ
Q1: Is the product new and original?
A1: Yes, KJ3208X1-BA1 is brand new and original from Emerson factory supply.
Q2: Do you have stock available?
A2: Yes, we keep KJ3208X1-BA1 in stock for fast order processing and delivery.
Q3: What is the delivery time?
A3: We ship within 3 days to 2 weeks depending on order size and logistics arrangements.
Q4: Which shipping methods do you provide?
A4: We commonly use DHL and other international carriers for fast and secure delivery.
Q5: What load can each output channel handle?
A5: Each channel of KJ3208X1-BA1 supports up to 1 ampere output current capacity.
Q6: What happens if there is a quality issue?
A6: We support returns within 30 days if any quality issue occurs with KJ3208X1-BA1.
