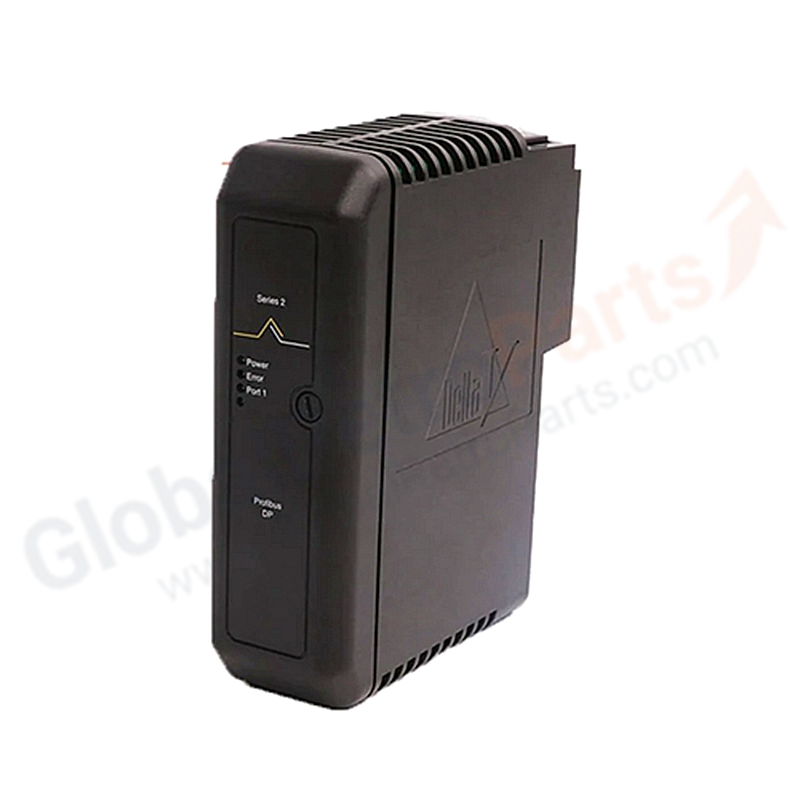

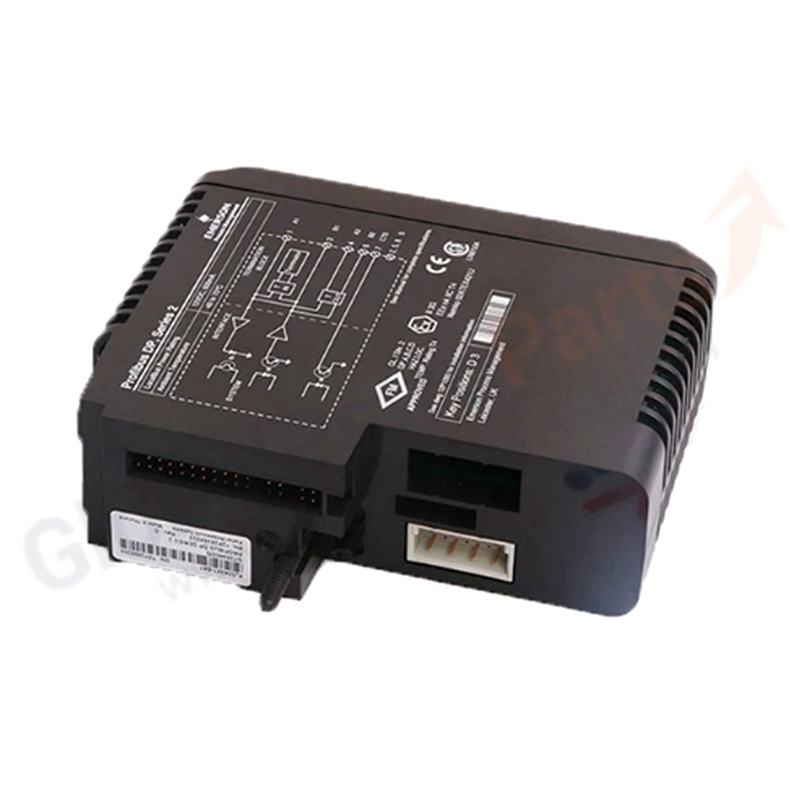

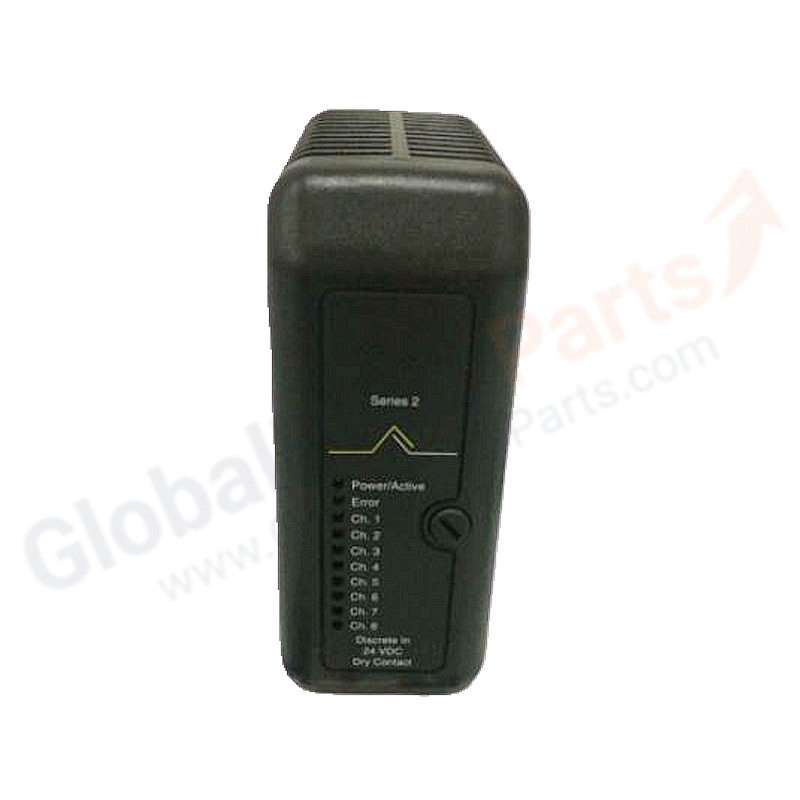

KJ3208X1-BA2 | Emerson DeltaV | DO 8-Channel 24 VDC Isolated

Overview

The Emerson KJ3208X1-BA2 is an 8-channel, 24 VDC isolated digital output (DO) module for the DeltaV™ distributed control system. It provides isolated high-side switching for discrete field devices and is designed for hazardous-location installations.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ3208X1-BA2
• Also Known As: 13P0105X012
• Type: Digital Output Module — 8-Channel Isolated
• Local Bus Power: 12 VDC @ 150 mA
• Field Circuit Power: 60 VDC @ 1 A per channel
• Isolation: Channel-to-channel and channel-to-ground
• Terminal Block Key Position: B5
• Weight: 0.4 – 0.78 kg
• Dimensions: 16.8 × 8.7 × 4.4 cm

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +70 °C
• Shock: 10 g, ½ sine wave for 11 ms
• Vibration: 1 mm p-p (2–13.2 Hz); 0.7 g (13.2–150 Hz)
• Relative Humidity: 5 % – 95 % non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• Hazardous Area: Zone 2 / Class I Div. 2 (when properly installed)

Key Features

• Eight individually isolated outputs for safe control of field devices
• High-side switching topology compatible with common industrial loads
• Rotary keying prevents terminal block mismatch
• Hot-swappable under safe wiring conditions

FAQ

Q: What is the maximum load per channel?
A: Each channel supports up to 60 VDC at 1 A.

Q: Can I remove this module while the system is running?
A: Field power must be removed before module removal. The unit cannot be inserted or removed with system power energized on the field circuit.

Q: What terminal block do I need?
A: Use a rotary-keyed terminal block set to position B5 for proper compatibility.

Installation Guidelines

1. De-energize field power before connecting or disconnecting the module.
2. Set the terminal block key to B5.
3. Align the module with the carrier and press firmly until seated.
4. Re-apply field power only after verifying all wiring connections.

Selection Tips

• Select KJ3208X1-BA2 when you need isolated discrete outputs for solenoids, relays, or indicator lamps.
• Ensure your carrier supports Series 2 I/O modules.
• Verify load current per channel does not exceed 1 A.
