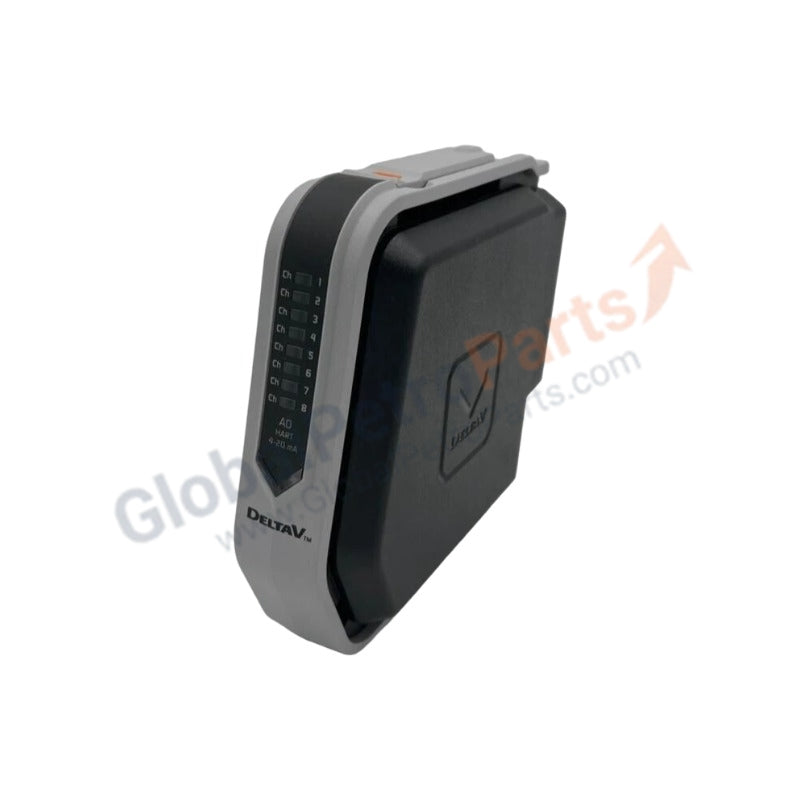

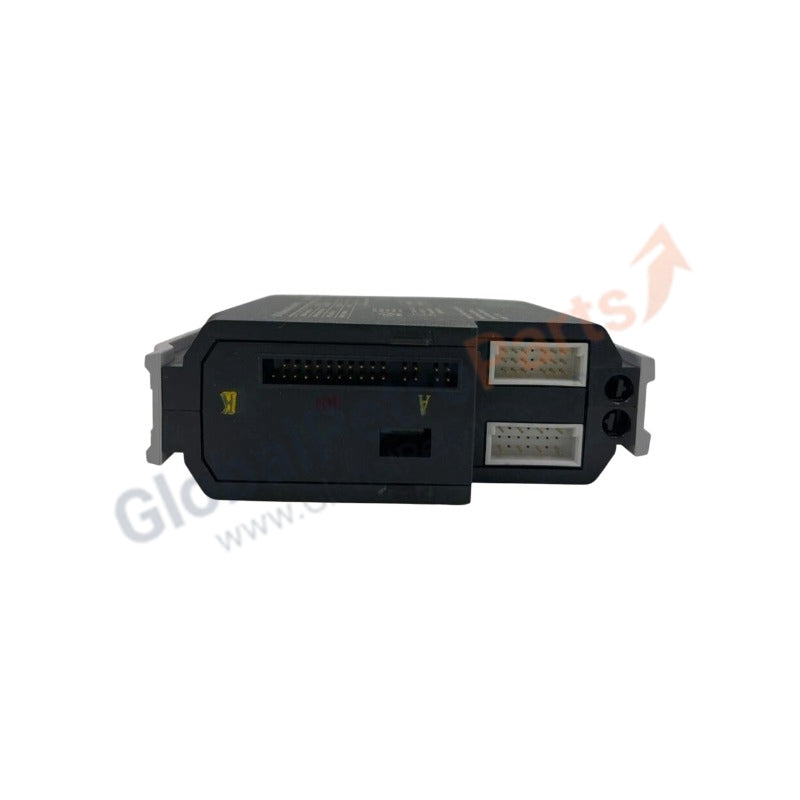

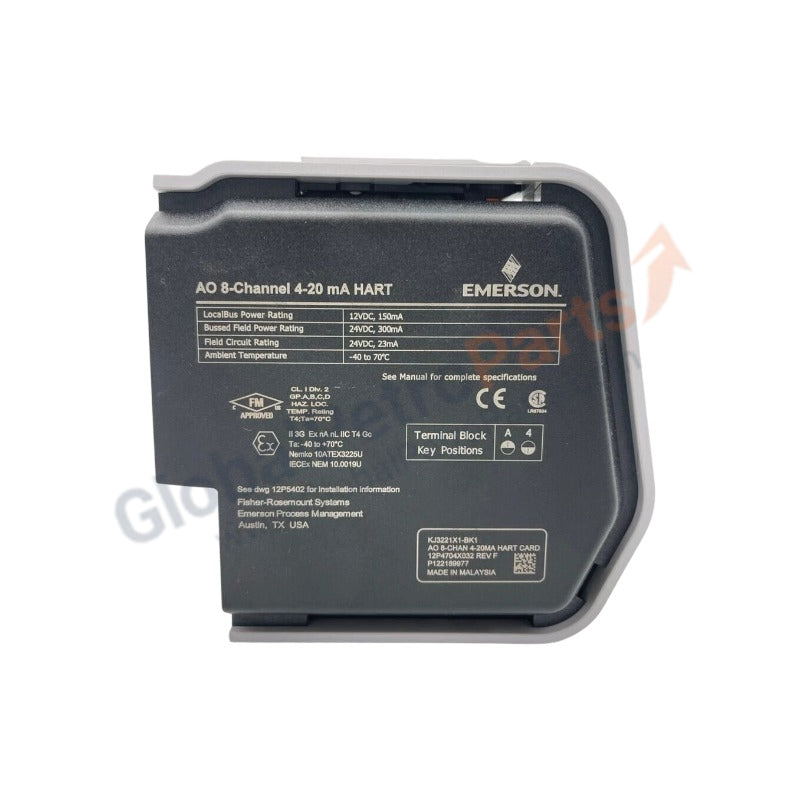

KJ3221X1-BK1 Emerson DeltaV AO 8-Channel 4-20 mA HART Card
  • KJ3221X1-BK1 Emerson DeltaV AO 8-Channel 4-20 mA HART Card
  • KJ3221X1-BK1 Emerson DeltaV AO 8-Channel 4-20 mA HART Card
  • KJ3221X1-BK1 Emerson DeltaV AO 8-Channel 4-20 mA HART Card
KJ3221X1-BK1 Emerson DeltaV AO 8-Channel 4-20 mA HART Card

Emerson

KJ3221X1-BK1 Emerson DeltaV AO 8-Channel 4-20 mA HART Card

10 left

  • Manufacturer: Emerson

  • Product No.: KJ3221X1-BK1

  • Product Type: AO 8-Channel 4-20 mA HART Card

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

The KJ3221X1-BK1 analog output card provides precise 4-20 mA HART control for Emerson DeltaV systems.
Moreover, the KJ3221X1-BK1 enables simultaneous control of up to eight channels, ensuring accurate process automation.
This module improves system reliability because it integrates high-resolution DACs and isolation circuitry for each output channel.

Technical Specifications

Parameter Description
Model KJ3221X1-BK1
Part Number 12P4704X032
Series DeltaV
Manufacturer Emerson
Module Type Analog Output (AO) Card
Channels 8 independent 4-20 mA HART outputs
Output Range 4–20 mA per channel
Resolution 16-bit DAC for precise analog output
Load Resistance Up to 1000 Ω per channel
Output Compliance 24 VDC typical
Accuracy ±0.1% full scale
Isolation Channel-to-channel and channel-to-backplane isolation
Energy Storage Integrated capacitors for voltage stability and transient suppression
Communication HART protocol for each output channel
Mounting Method DeltaV carrier slot installation
Dimensions (H × W × D) 130 mm × 60 mm × 110 mm
Weight Approximately 0.38 kg
Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +85°C
Relative Humidity 5% to 95% non-condensing
Cooling Passive cooling, no fan required
EMC Compliance Industrial EMC standards
Vibration Resistance Designed for industrial applications



FAQ

Q1: Is the KJ3221X1-BK1 original and brand new?
A1: Yes, all units are brand new, original, and factory sealed.

Q2: Do you have the KJ3221X1-BK1 in stock?
A2: Yes, we maintain stock for immediate processing.

Q3: How fast can you ship the KJ3221X1-BK1?
A3: Shipping occurs within 3 days to 2 weeks depending on order size.

Q4: Which logistics services do you use?
A4: We commonly use DHL and other reliable carriers for delivery.

Q5: How many channels does the module support?
A5: It provides eight independent 4-20 mA HART output channels.

Q6: What is the output accuracy of each channel?
A6: Each channel achieves ±0.1% full-scale accuracy.
