Product Description

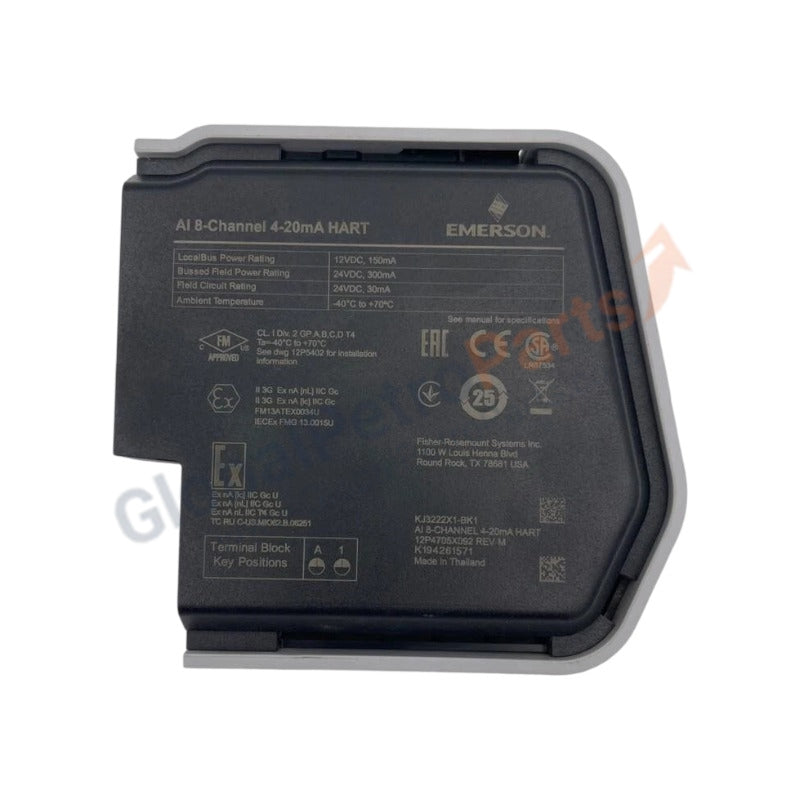

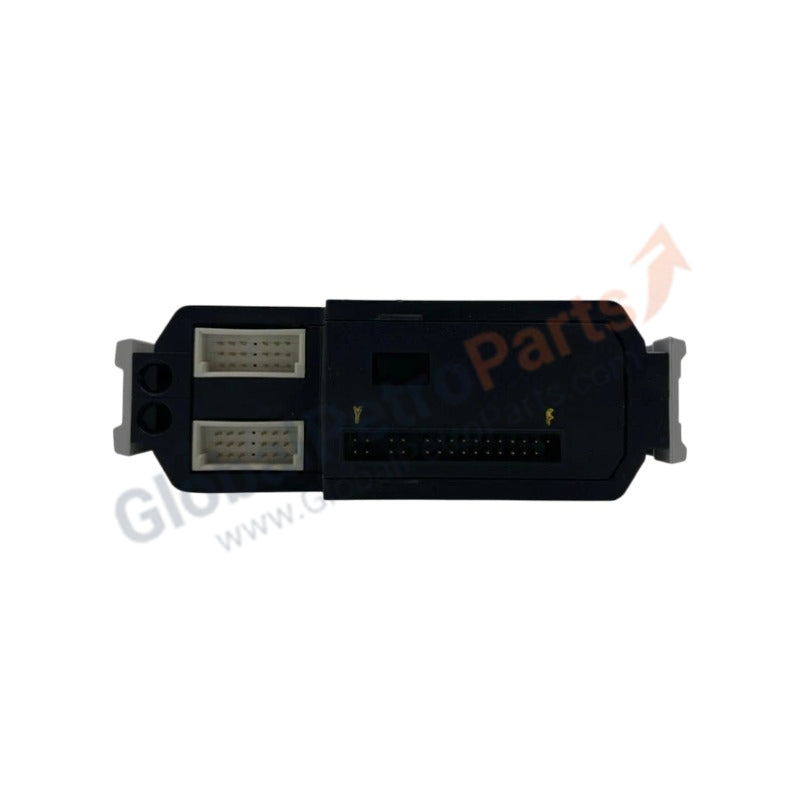

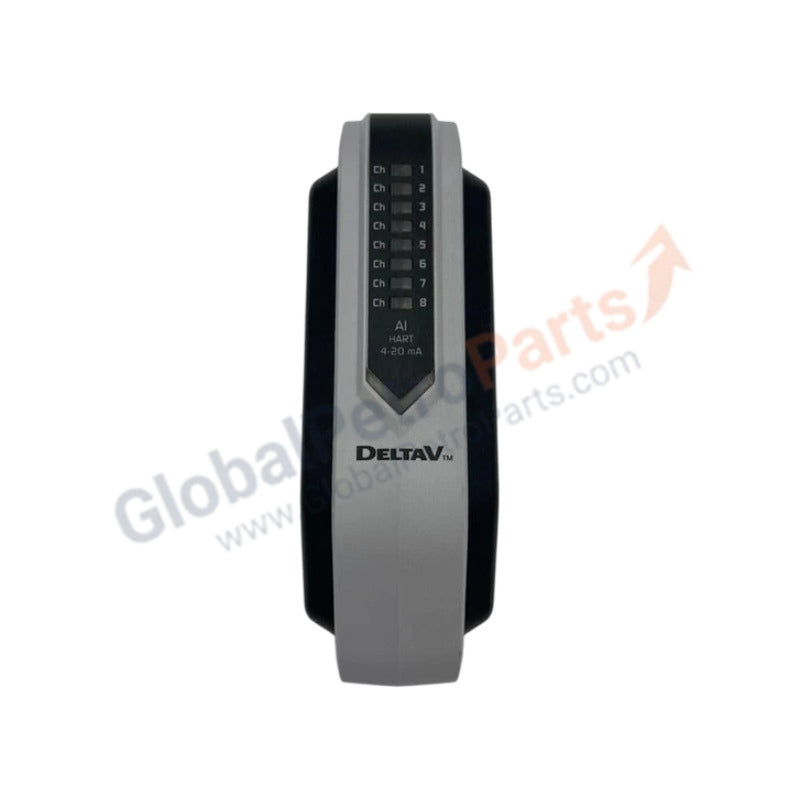

KJ3222X1-BK1 from Emerson operates as an analog input card within the DeltaV distributed control system.
This module supports eight independent channels for 4–20 mA signal acquisition with integrated HART communication capability.
It ensures accurate field data collection and enhances process visibility across industrial automation systems.
Moreover, KJ3222X1-BK1 integrates seamlessly with DeltaV architecture for scalable and flexible system expansion.
Engineers rely on this module for high-precision measurements and reliable communication with smart field devices.
Technical Specifications
| Parameter |
Detailed Specification |
| Model |
KJ3222X1-BK1 |
| Manufacturer |
Emerson |
| Series |
DeltaV |
| Product Type |
Analog Input (AI) HART Card |
| Input Channels |
8 channels |
| Input Signal |
4–20 mA |
| HART Support |
Yes, integrated HART communication |
| Input Resolution |
High-resolution analog-to-digital conversion |
| Input Accuracy |
Industrial-grade precision measurement |
| Input Impedance |
Optimized for field transmitters |
| Isolation |
Channel-to-system isolation |
| Supply Voltage |
12 VDC via LocalBus |
| Power Consumption |
Approx. 2–3 W typical |
| LocalBus Current |
Approx. 150–200 mA |
| Operating Temperature |
-40°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5% to 95% non-condensing |
| Protection Rating |
IP20 |
| Contamination Class |
ISA-S71.04 Class G3 |
| Shock Resistance |
10 g, 11 ms half-sine |
| Vibration |
1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Mounting Method |
DeltaV carrier installation |
| Module Dimensions |
Approx. 120 mm × 40 mm × 105 mm |
| Module Weight |
Approx. 0.25 kg |
| Hazardous Certification |
ATEX Zone 2 compliant |
| Compliance Standards |
IEC, ATEX, DeltaV specifications |
| Calibration Requirement |
No calibration required |
| Serviceability |
No user-serviceable parts |
FAQ
Q1: Is the product new and original?
A1: Yes, KJ3222X1-BK1 is brand new and original from Emerson official manufacturing supply.
Q2: Do you have stock available?
A2: Yes, we keep KJ3222X1-BK1 in stock for immediate processing and shipment.
Q3: What is the delivery time?
A3: We ship within 3 days to 2 weeks depending on order size and logistics arrangements.
Q4: Which shipping methods do you use?
A4: We commonly use DHL and other reliable international carriers for fast delivery services.
Q5: Does this module support HART communication?
A5: Yes, KJ3222X1-BK1 supports integrated HART communication for smart field device interaction.
Q6: What is your return policy if there is a quality issue?
A6: We support returns within 30 days if any quality issue occurs with KJ3222X1-BK1.
