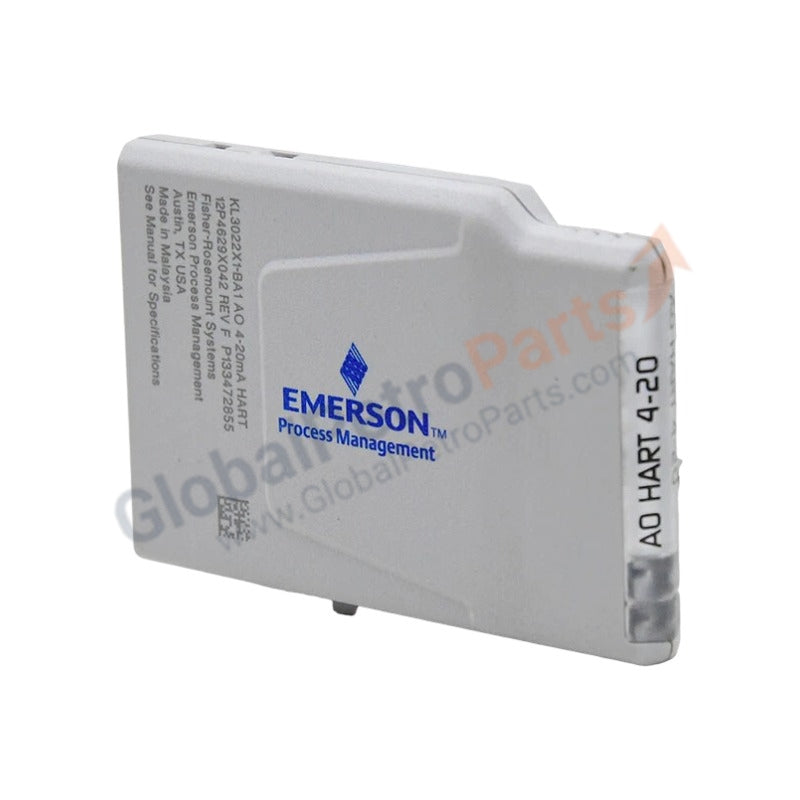

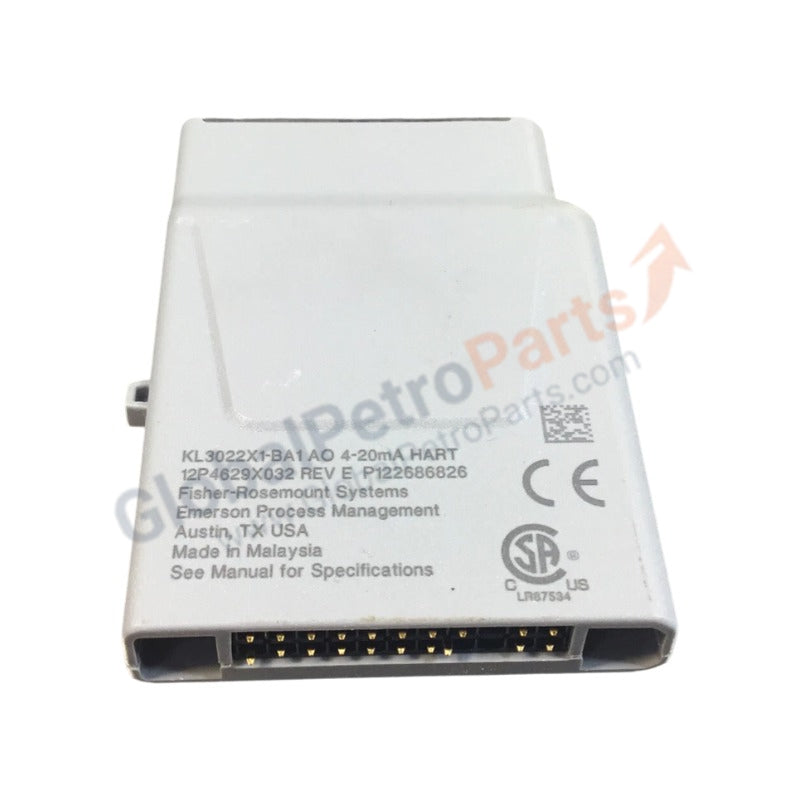

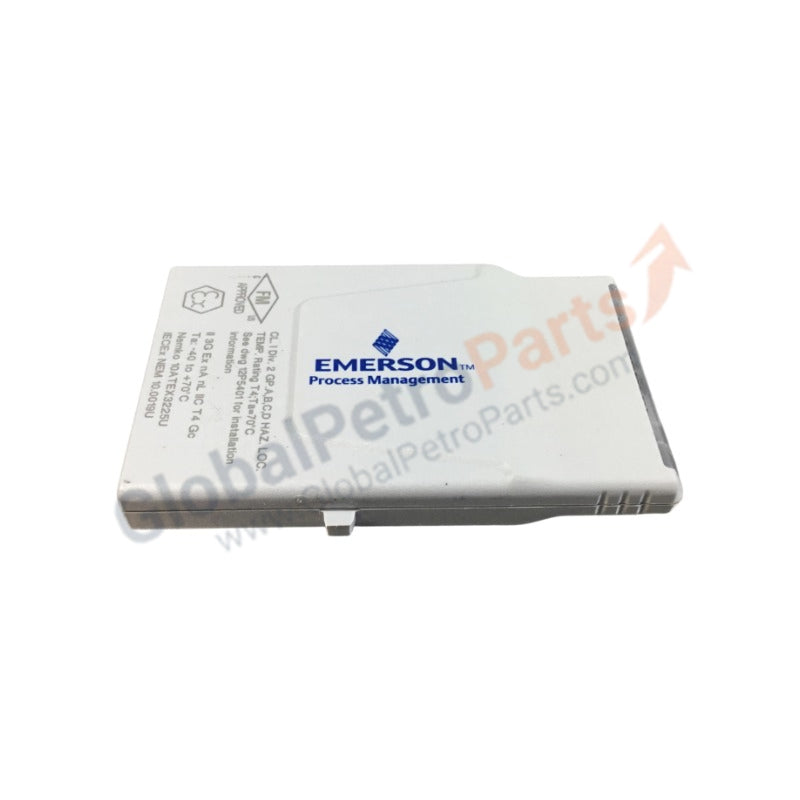

KL3022X1-BA1 | Emerson DeltaV |Aanalog Output 4-20mA HART CHARM
  • KL3022X1-BA1 | Emerson DeltaV |Aanalog Output 4-20mA HART CHARM
  • KL3022X1-BA1 | Emerson DeltaV |Aanalog Output 4-20mA HART CHARM
  • KL3022X1-BA1 | Emerson DeltaV |Aanalog Output 4-20mA HART CHARM
KL3022X1-BA1 | Emerson DeltaV |Aanalog Output 4-20mA HART CHARM

Emerson

KL3022X1-BA1 | Emerson DeltaV |Aanalog Output 4-20mA HART CHARM

10 left

  • Manufacturer: Emerson

  • Product No.: KL3022X1-BA1

  • Product Type: Aanalog Output 4-20mA HART CHARM

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

The KL3022X1-BA1 module provides precise analog output control within Emerson DeltaV distributed control systems.
Moreover, this CHARM module supports 4–20mA output signals and enables HART communication for smart field devices.
Engineers use KL3022X1-BA1 to achieve stable signal transmission and accurate actuator control in process environments.

Technical Specifications

Parameter Specification
Model KL3022X1-BA1
Manufacturer Emerson
Series DeltaV CHARM I/O System
Module Type Analog Output CHARM Module
Output Signal Range 4–20 mA analog output
HART Support Yes, integrated HART communication
Output Channels Single-channel CHARM
Output Resolution 16-bit digital-to-analog conversion
Accuracy ±0.1% of span
Load Resistance Up to 600 Ω typical
Output Stability High stability with minimal drift
Isolation Channel-to-system electrical isolation
Power Consumption Low power per channel
Energy Storage Internal capacitors for stable output
Response Time Fast update rate for real-time control
Interface Type CHARM baseplate connection
Mounting Method Plug-in CHARM carrier
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Relative Humidity 5%–95% non-condensing
Dimensions Approx. 12 mm × 100 mm × 120 mm
Weight Approx. 0.15 kg
Compliance Meets industrial EMC and safety standards



FAQ



Q1: Is the KL3022X1-BA1 brand new and original?
A1: Yes, we provide brand new original modules with guaranteed quality and reliable performance.

Q2: Do you have KL3022X1-BA1 in stock?
A2: Yes, we keep stock available and support fast order processing for various quantities.

Q3: How long does shipping take for KL3022X1-BA1?
A3: We ship within 3 days to 2 weeks depending on order size and logistics conditions.

Q4: Which logistics services do you use?
A4: We commonly use DHL and similar international carriers for secure and fast delivery.

Q5: What output load does KL3022X1-BA1 support?
A5: The module supports load resistance up to approximately 600 ohms for stable signal output.

Q6: Can I return the product if there is a quality issue?
A6: Yes, we support returns within 30 days if any quality issue occurs after delivery.
Return policy

​We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.
Shipping

We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.
Warranty

We provide a 12-month warranty for all products, subject to normal use and proper installation.
