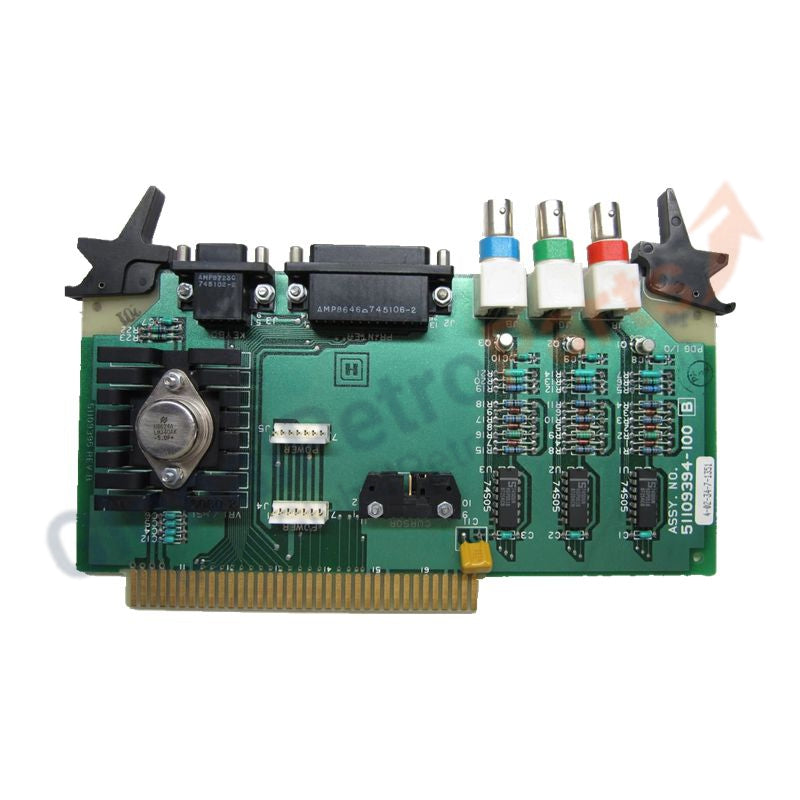

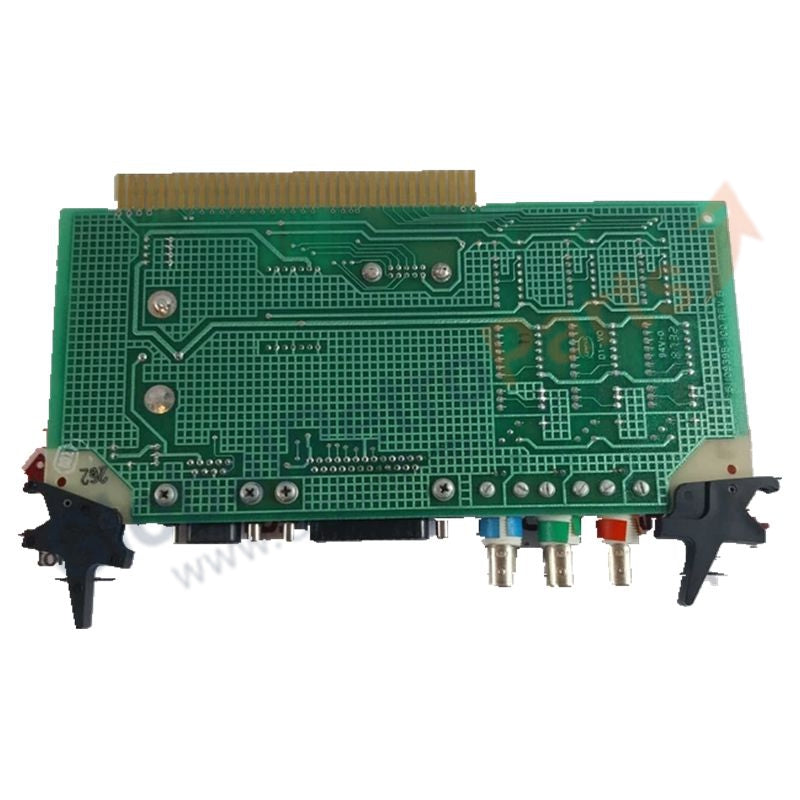

LCN Input/Output Interface Board 51109394-100 Honeywell

Product Description

The 51109394-100 is a specialized Input/Output (I/O) adapter board for Honeywell TDC 3000 and Experion PKS distributed control systems (DCS). It functions as a Local Control Network (LCN) node interface, enabling high-speed communication between the processor and the system backplane. The board is commonly deployed in Dual Node configurations, providing critical synchronization for process control and operator station connectivity.

Designed to meet industrial-grade reliability standards, the 51109394-100 ensures that process variables and control commands are transmitted with minimal latency. It is optimized for legacy and transition-era Honeywell chassis, offering a dependable solution for maintaining communication integrity in petrochemical, power generation, and large-scale manufacturing environments.

Technical Specifications

Application Scenarios

• Node Synchronization: Ensuring real-time data consistency between redundant processor nodes.

• Network Interfacing: Bridging I/O processor logic with the Local Control Network (LCN) for system-wide monitoring.

• Legacy Support: Reliable replacement for aging TDC 3000 I/O nodes.

• System Upgrades: Facilitates integration of legacy I/O clusters into modern Experion PKS environments.

Frequently Asked Questions

Is the 51109394-100 compatible with CE-compliant systems?
This board is generally associated with legacy non-CE (Common Enclosure) or transitional architectures. Always verify the chassis type (5-slot or 10-slot) and version before installation.

Does this board manage Analog or Digital I/O signals directly?
No. The 51109394-100 is a communication and interface board. Actual field signal conditioning is performed by dedicated AI, AO, DI, or DO modules connected to the system.
