M340 Backplane Expander Module Schneider Modicon Quantum BMXXBE1000

Product Overview

The Schneider Electric BMXXBE1000 serves as the essential hardware link for expanding Modicon M340 automation systems beyond a single chassis. This backplane expander module enables multi-rack configurations, allowing the processor to manage I/O modules distributed across multiple physical racks. By facilitating high-speed data transparently across the X-bus, it ensures that expanded systems maintain the same performance levels as single-rack setups. We provide this unit as 100% Brand New and original factory sealed, ensuring your distributed control architecture remains stable and reliable.

Technical Specifications

The BMXXBE1000 integrates seamlessly into standard X-bus racks to provide robust inter-rack connectivity.

Engineering Advantages

• Scalable Architecture Expansion: The BMXXBE1000 allows the system to scale from a single rack up to a 4-rack distributed configuration. This enables engineers to add high-density I/O or specialized modules without replacing the original processor or chassis.

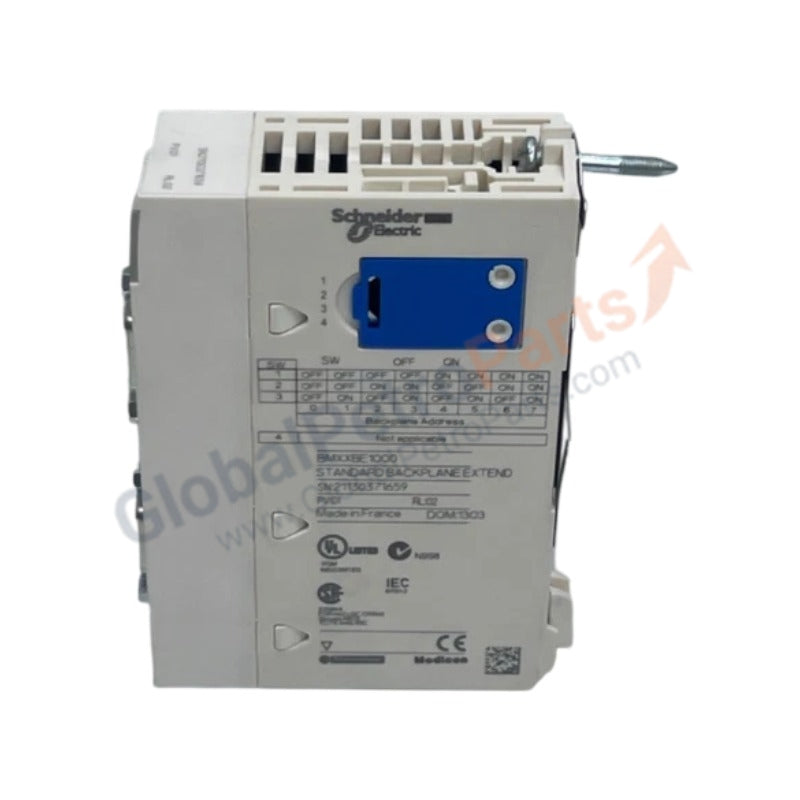

• Simplified Hardware Addressing: The module features four dedicated green LEDs for rack address status. This visual feedback allows technicians to verify correct rack indexing and dip-switch settings instantly during commissioning, reducing setup errors in complex multi-chassis environments.

• Enhanced System Diagnostics: A red "COL" LED specifically monitors for collision errors on the rack bus. This allows maintenance teams to distinguish between internal module faults and physical layer communication issues on the X-bus cables.

• Hazardous Location Readiness: Carrying the Hazardous Location Class I Division 2 rating, this expander operates safely in environments where volatile gases or liquids may be present. The "TC" protective treatment further shields the circuitry from humidity and moderate chemical exposure.

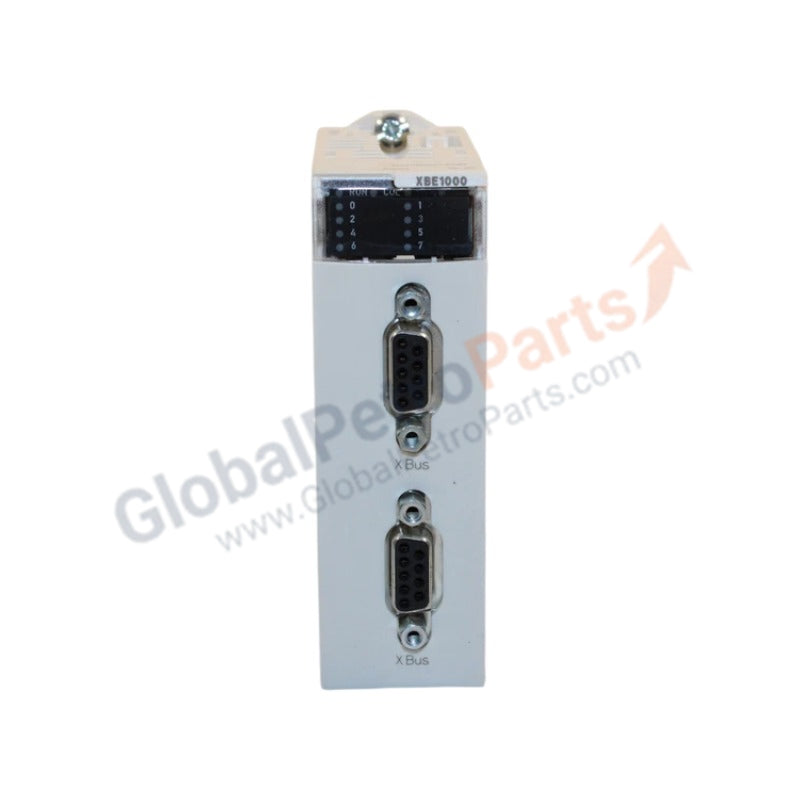

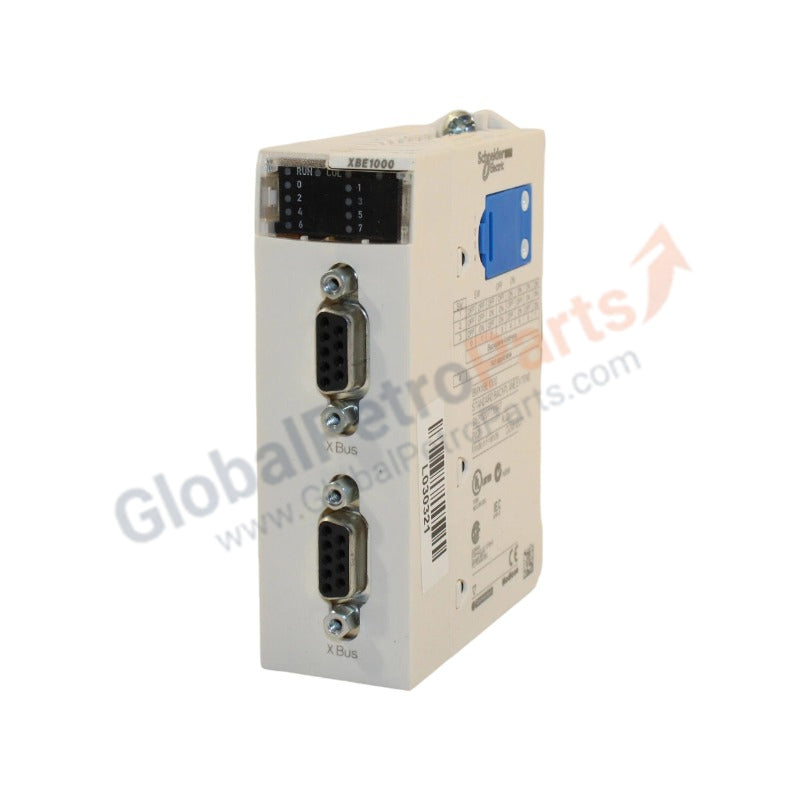

• Compact Integration: The module uses a standard M340 format, fitting into the dedicated expansion slot of any X80/M340 backplane. It utilizes SUB-D 9 connectors for rugged, vibration-resistant cable connections between racks.

FAQs

• Q: Do I need a BMXXBE1000 in every rack of a multi-rack system?

• A: Yes. Each rack in an expanded configuration (including the primary rack containing the CPU) requires a backplane expander to facilitate the signal flow through the X-bus extension cables.

• Q: Can I use this expander with the newer Modicon M580 platform?

• A: The BMXXBE1000 is specifically designed for the Modicon M340 and X80 Bus X architecture. For M580 systems utilizing Ethernet backplanes (eBP), you typically require the BMXXBE2000 or specialized Ethernet drop modules, though it remains compatible with X80 Bus X racks used in M580 architectures.

• Q: What cable should I use with the SUB-D 9 connectors?

• A: You must use Schneider Electric's dedicated BMXXBC series expansion cables (available in various lengths). These shielded cables ensure electromagnetic compatibility (EMC) and maintain signal integrity across the expanded backplane.

• Q: Does the expander module consume a standard I/O slot?

• A: No. On Modicon M340/X80 racks, the expander module installs into a dedicated slot on the far right of the backplane, preserving all numbered slots for your I/O and communication modules.
