Mark V Analog Termination Board DS200TBQBG1ACB GE

Product Overview

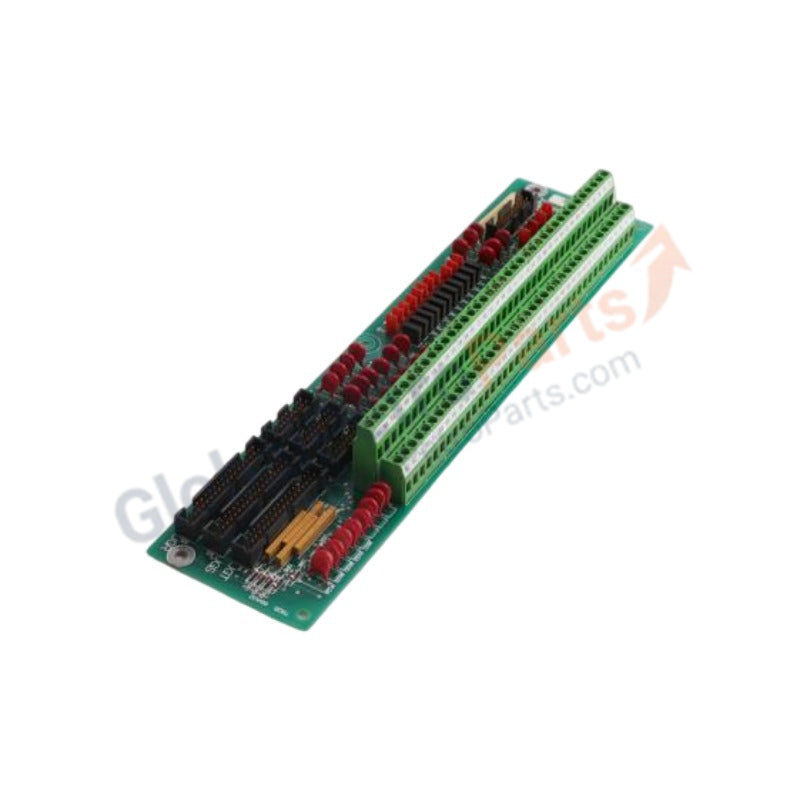

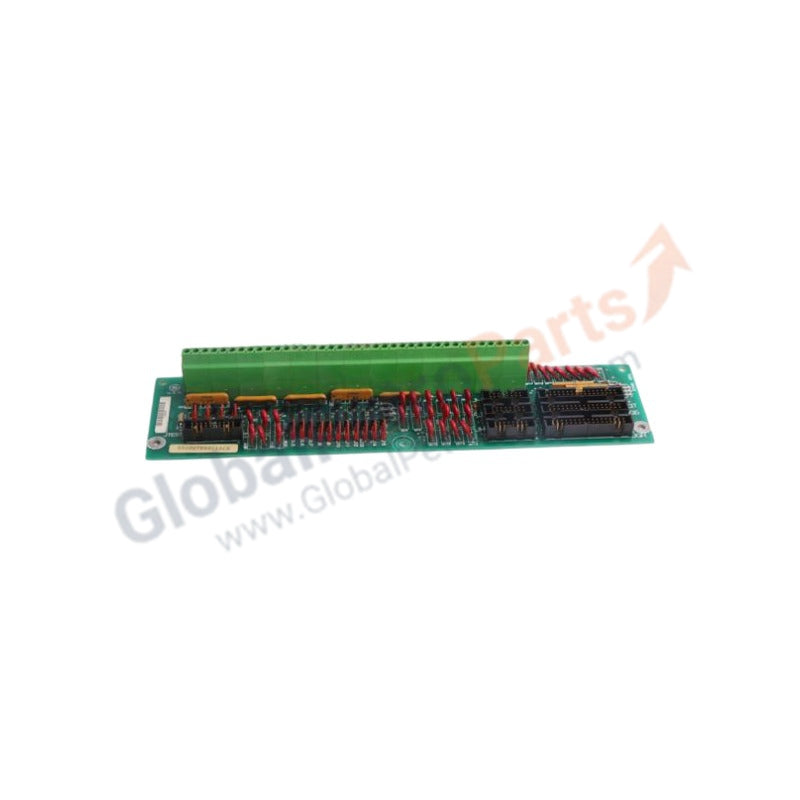

The GE DS200TBQBG1ACB (DS200TBQBG1ACB) serves as a critical Analog Termination Board within the GE Mark V Speedtronic control system. This board acts as the primary interface for analog signals, routing field wiring inputs to the control processors. It facilitates the precise monitoring of turbine variables, including pressure, temperature, and vibration levels. We supply this component as 100% Brand New and Original, ensuring full compatibility with GE’s proprietary TMR (Triple Modular Redundant) architecture. By maintaining signal integrity at the hardware level, this board prevents data corruption and ensures stable turbine operation in high-demand power generation environments.

Technical Specifications

Engineering Advantages

• Superior Signal Isolation: The board utilizes dedicated circuitry to filter out electromagnetic interference (EMI). This ensures that clean, noise-free analog signals reach the control processors, even in electrically "noisy" power plant environments.

• High-Density Wiring Efficiency: The layout features organized terminal blocks that simplify complex field wiring. Engineers can secure connections quickly, reducing the risk of wiring errors during commissioning or system upgrades.

• Optimized Thermal Management: GE engineers designed the PCB with high-quality heat-dissipating laminates. This prevents localized hotspots and ensures the board maintains consistent impedance levels across its operating temperature range.

• Ruggedized Interface: The DS200TBQBG1ACB uses industrial-grade terminal screws and robust ribbon headers. These components resist loosening due to mechanical vibrations, a common issue in turbine housing proximity.

FAQs

• Does this board support 100% brand new replacement for older Mark V revisions?

  Yes. This ACB revision is backward compatible and replaces earlier versions of the TBQB board. We guarantee that the unit is a brand-new, original GE factory product.

• What are the primary precautions during installation?

  Technicians must discharge all static electricity before handling the board. Ensure all ribbon cables seat firmly in their headers to prevent intermittent signal loss.

• How does the "ACB" suffix impact functionality?

  The "ACB" suffix indicates the specific hardware revision level. It incorporates updated circuit protections and components compared to the base "A" version, enhancing overall board longevity.
