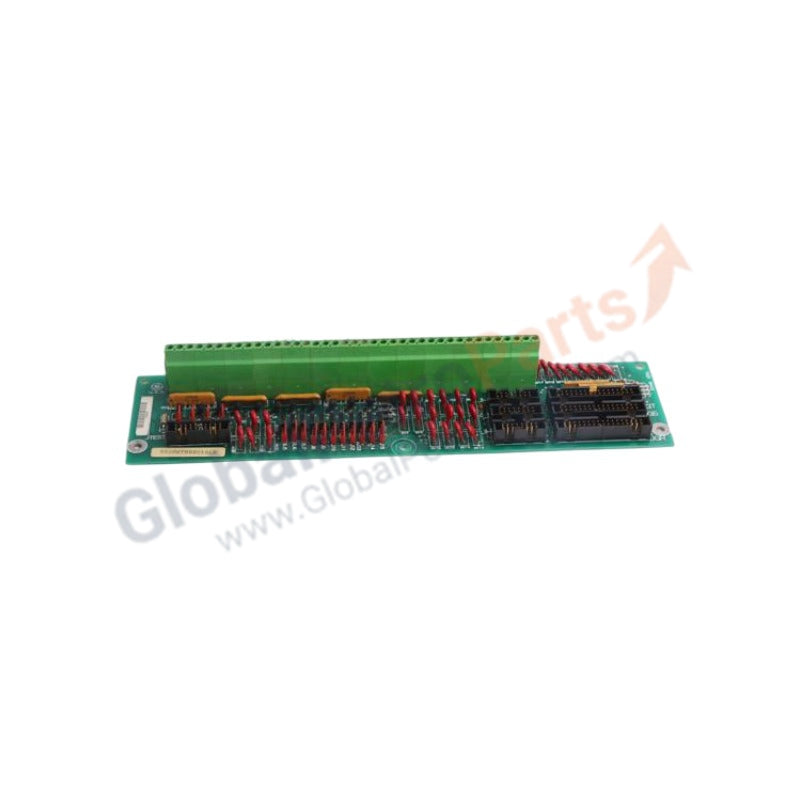

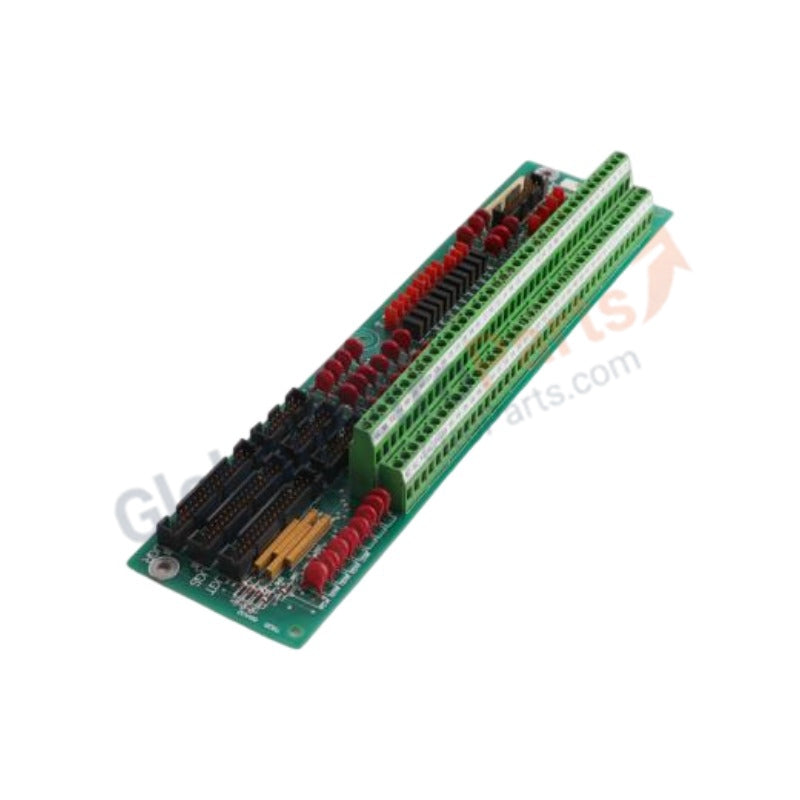

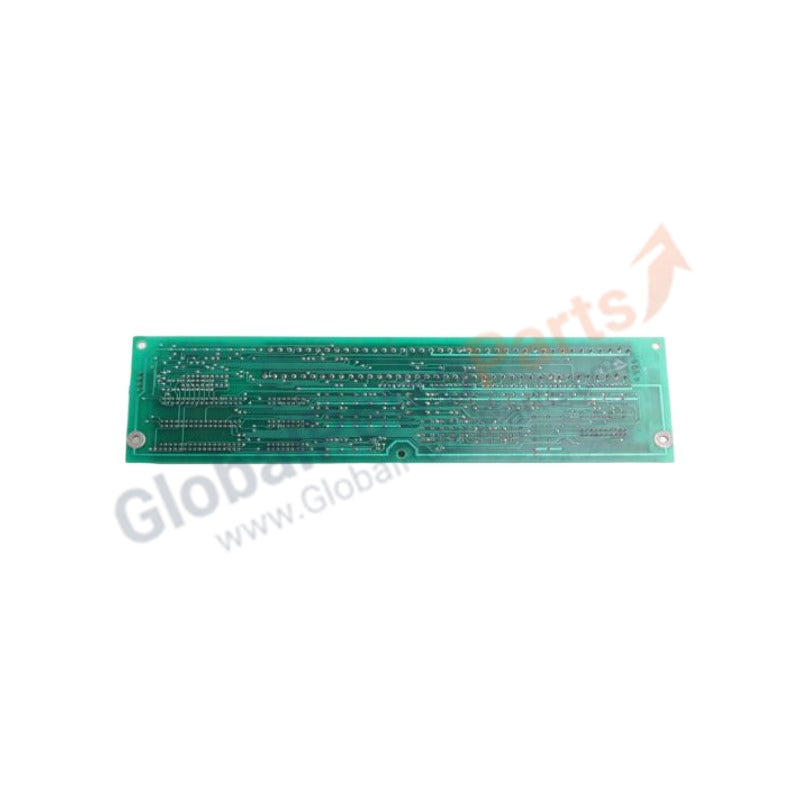

Mark V Analog Termination Board GE DS200TBQBG1A

Product Overview

The GE DS200TBQBG1A (DS200TBQBG1A) serves as the primary interface for analog signals and specialized turbine feedback loops within the Mark V Speedtronic system. This board terminates and conditions critical inputs from LVDTs (Linear Variable Differential Transformers), pulse rate sensors, and servomotor feedback systems. We provide this module as 100% Brand New original equipment. The DS200TBQBG1A ensures the control core receives precise data for fuel valve positioning and shaft speed monitoring. By integrating signal filtering at the termination point, it facilitates the millisecond-level response times necessary for stable combustion and generator synchronization in high-capacity power plants.

Technical Specifications

The DS200TBQBG1A utilizes high-performance passive and active circuitry to maintain signal purity for various turbine instrumentation types.

Engineering Advantages

The DS200TBQBG1A addresses specific industrial pain points through ruggedized electronic design:

• Dedicated Speed Signal Conditioning: The board converts raw pulse inputs from magnetic pickups into clean square-wave signals. This eliminates "chatter" and signal noise caused by turbine shaft vibration, ensuring the control system calculates RPM with absolute accuracy.

• Precision LVDT Excitation: GE engineers designed the TBQBG1A to provide a stable AC carrier frequency for position transducers. This stability prevents "drift" in fuel valve feedback, which is critical for maintaining steady-state power output and avoiding thermal oscillations in the turbine exhaust.

• Advanced EMI Shielding: Every input channel features localized grounding points and noise-suppression capacitors. These components block electromagnetic interference from nearby generators and high-voltage motor starters, preserving the integrity of low-millivolt sensor data.

• High-Torque Mechanical Terminals: The terminal blocks feature industrial-grade screws designed to withstand the thermal expansion and vibration cycles of a power plant environment. This ensures a low-resistance connection that remains secure over decades of continuous operation.

FAQs

• Can the DS200TBQBG1A be used in place of a DS200TBQCG1A?

  While both boards handle analog signals, the TBQBG1A contains specific circuitry for pulse rate inputs and different servomotor feedback configurations. You must consult your site-specific "Control Sequence Program" (CSP) to ensure the hardware revision matches the software expectations of your , , and  cores.

• Does this board require manual calibration for LVDT signals?

  The board provides the physical termination and excitation, but final calibration occurs within the Mark V software. However, you must ensure the hardware jumpers (J-jumpers) on the DS200TBQBG1A correctly select the gain and excitation levels for your specific transducer model.

• What is the best way to troubleshoot a suspected speed signal failure on this board?

  Technicians can use an oscilloscope at the onboard test points to verify the incoming pulse train from the magnetic pickup. If the signal is present at the terminals but not at the ribbon cable header, the conditioning circuit on the board may require replacement.

• Are the ribbon cables included with the board?

  This product includes the brand-new terminal board only. We recommend utilizing high-quality shielded ribbon cables to connect the DS200TBQBG1A to the internal control cores to maintain noise immunity.
