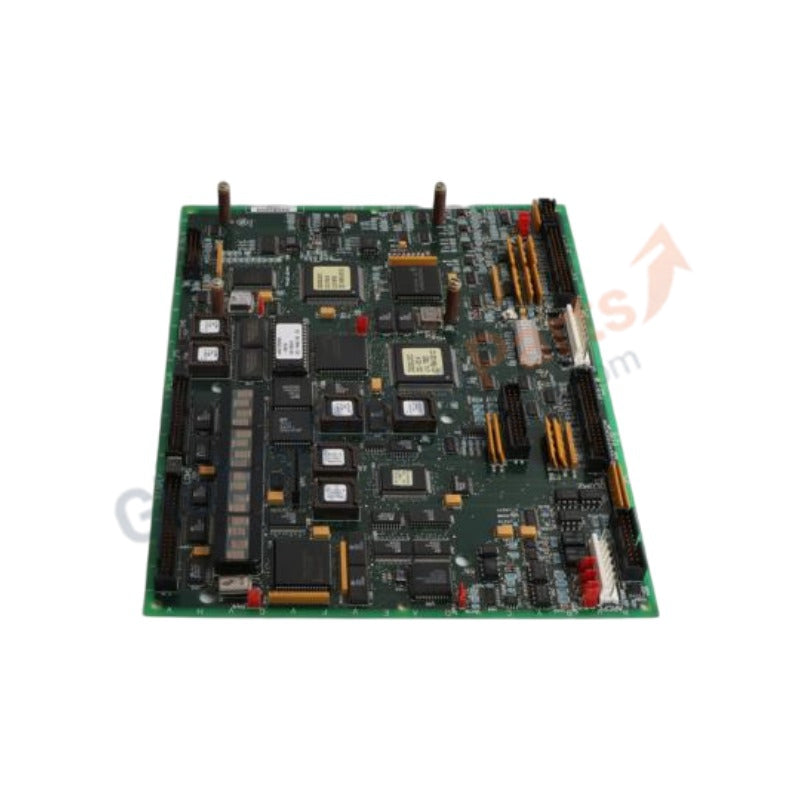

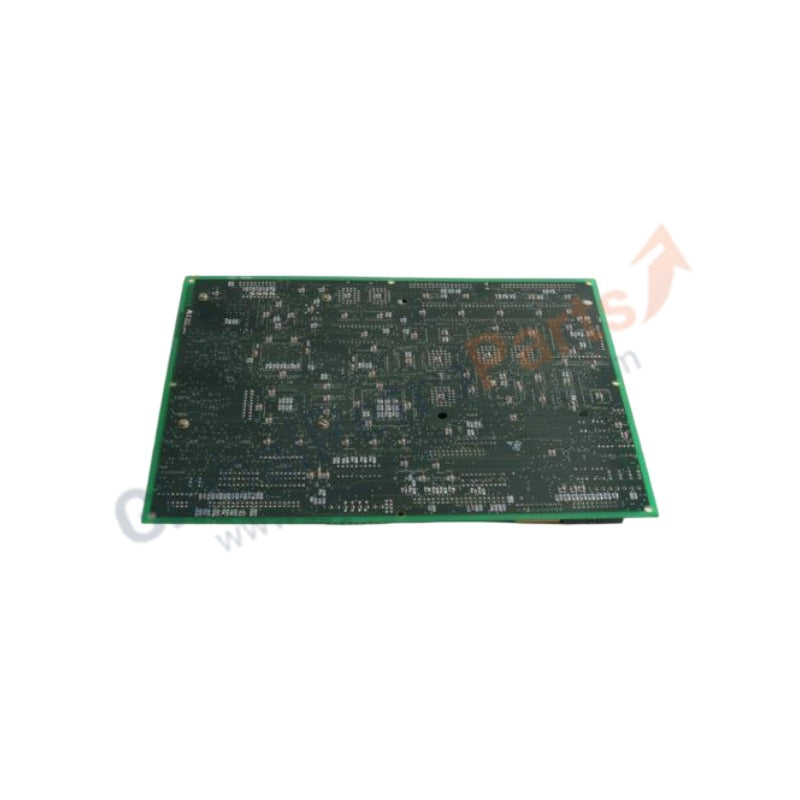

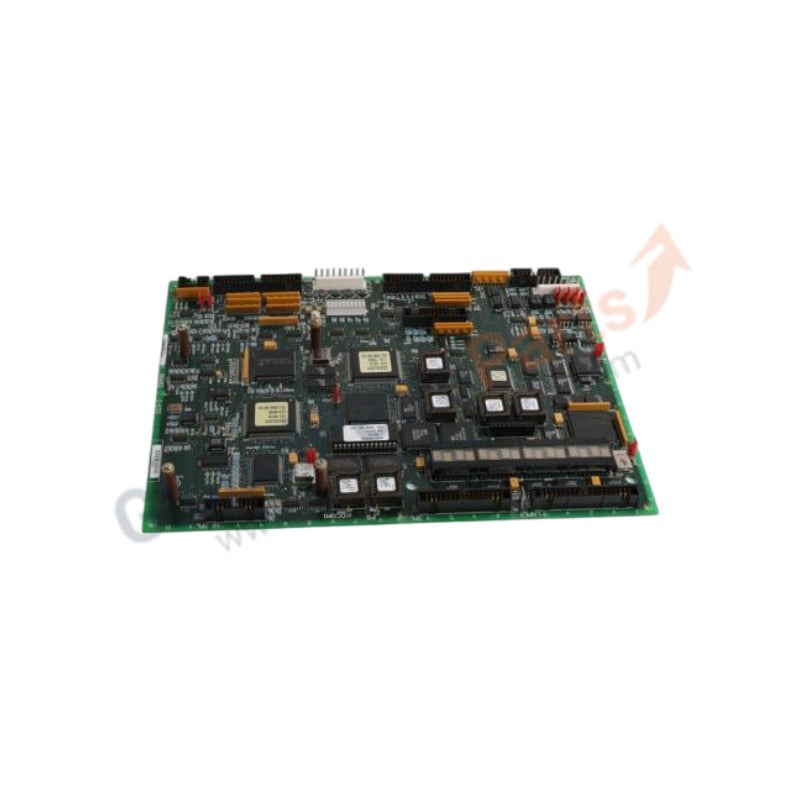

Mark V Drive Control and LAN Communications Board GE DS200LDCCH1ALA

Product Overview

The GE DS200LDCCH1ALA (DS200LDCCH1A) serves as the primary gateway for communications and high-level control within the GE Mark V Drive and Turbine system. This board functions as the central node that interfaces the drive with the Local Area Network (LAN), enabling seamless data exchange between the drive's internal processors and external control systems. We supply this component as 100% Brand New and Original, ensuring your industrial operations maintain peak uptime with genuine GE hardware. It integrates the core drive control functions, operator interface communications, and diagnostic reporting into a single, high-performance PCB.

Technical Specifications

Engineering Advantages

The DS200LDCCH1ALA addresses critical bottlenecks in large-scale industrial automation environments through several key engineering features:

• Integrated Multi-Processor Control: The board utilizes dedicated microprocessors to handle LAN communications and drive control logic simultaneously. This separation prevents network traffic spikes from interrupting critical motor or turbine control loops.

• Hardware Revision "ALA": This version incorporates the latest component updates, providing superior thermal stability and reduced electrical noise sensitivity compared to original "A" or "AL" revisions. It functions as a direct drop-in replacement for all previous DS200LDCCH1 iterations.

• On-Board Diagnostics: The integrated LED display provides real-time fault codes and system status. Engineers can identify communication errors or hardware failures directly at the board level without requiring external software during the initial troubleshooting phase.

• EMI/RFI Resilience: The PCB layout features advanced shielding and filtering circuits designed to withstand the harsh electromagnetic environments typical of high-horsepower motor drives and power generation cabinets.

Installation & Handling Guidelines

To protect the integrity of the 100% Brand New hardware, follow these professional protocols:

1. EEPROM Management: The DS200LDCCH1ALA features socketed EEPROM chips that store site-specific configuration data and firmware. You must move the socketed chips from your failing board to the new unit to ensure the control logic matches your specific turbine or drive parameters.

2. Electrostatic Discharge (ESD): Always wear a grounded wrist strap. The LDCCH board contains high-density CMOS circuits that sustain damage from even minor static discharge.

3. Cable Seating: The board uses multiple high-density ribbon cables. Ensure all connectors lock firmly into place; partial seating often causes intermittent ARCNET communication losses.

FAQs

• Can the DS200LDCCH1ALA replace an older DS200LDCCH1A?

  Yes. The "ALA" suffix indicates the most recent hardware revision. It maintains full backward compatibility with all DS200LDCCH1A series boards while offering improved component reliability.

• Does this board require software programming?

  The board hardware itself is ready for use, but it relies on your specific site firmware stored in the socketed EEPROM chips. Replacing the board usually involves transferring these chips from your original unit.

• What is the purpose of the LED display on the board?

  The alphanumeric display shows the board's internal initialization status and active fault codes. If a LAN communication error occurs, the display will show a specific hexadecimal code to help isolate the network failure.
