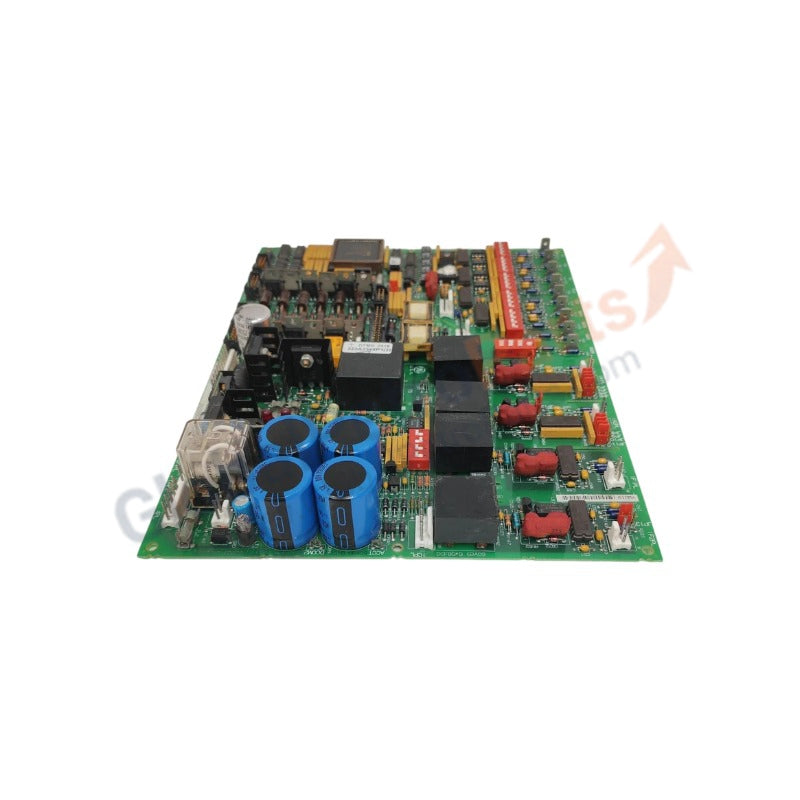

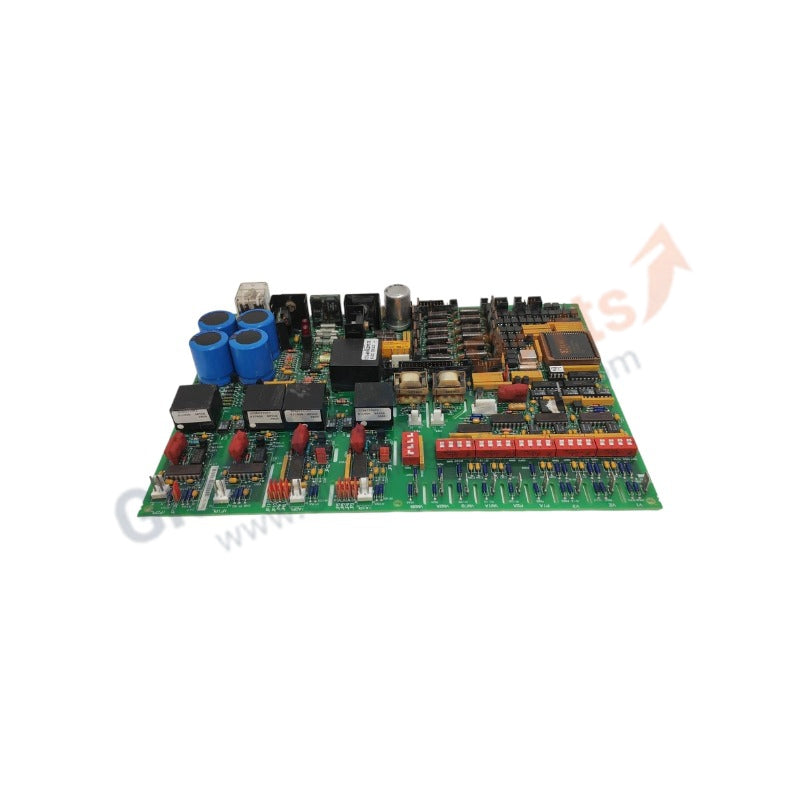

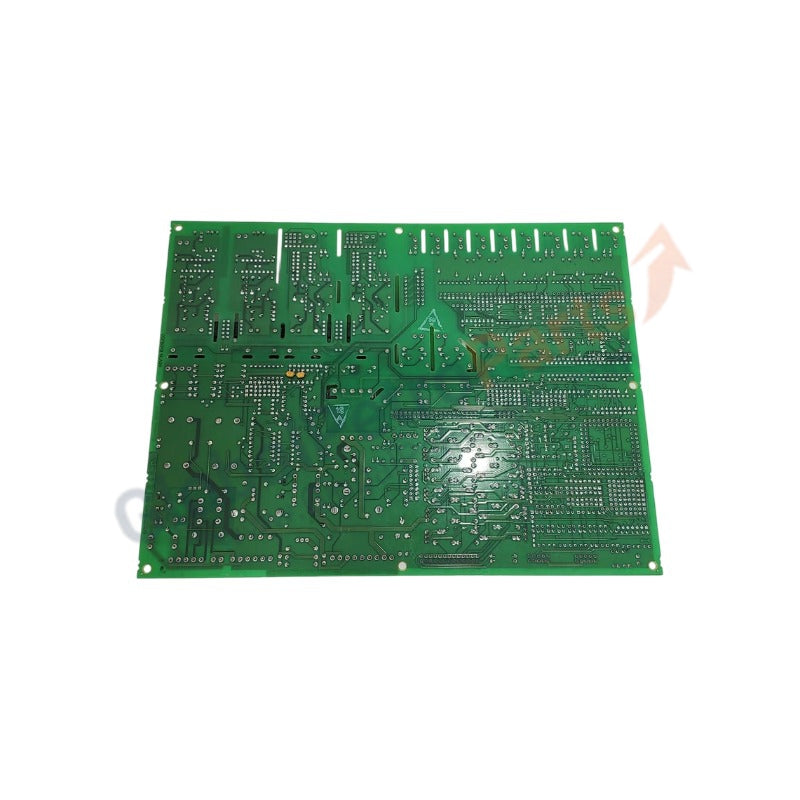

Mark V Drive Power Connection Board DS200DCFBG2BNC GE

Product Overview

The GE DS200DCFBG2BNC (DS200DCFBG2B) serves as the primary Power Connection and DC Feedback interface for GE Mark V and Innovation Series drive systems. This board functions as the critical link between the high-voltage power bridge and the low-voltage control electronics. It monitors DC bus voltage, detects ground faults, and facilitates the distribution of control power throughout the drive cabinet. We provide this unit as 100% Brand New and Original, ensuring your power conversion system maintains accurate feedback and robust circuit protection in the most demanding industrial environments.

Technical Specifications

Engineering Advantages

The DS200DCFBG2BNC provides several technical solutions for power bridge management and system protection:

• Precision Voltage Attenuation: The board utilizes high-impedance resistor networks to scale down high-voltage DC bus levels into low-voltage signals that the control processors can safely monitor. This ensures the drive maintains precise regulation of the DC link without risking damage to the control rack.

• Integrated Ground Fault Detection: Specialized circuitry on the DCFB board continuously monitors the leakage current to the ground. It identifies insulation breakdowns early, triggering a system alarm or trip to prevent catastrophic equipment damage or personnel injury.

• Control Power Distribution: It acts as a hub for internal 115 VAC and 24 VDC distribution. The board features integrated fuses and MOV (Metal Oxide Varistor) protection to neutralize voltage surges before they reach sensitive downstream modules.

• Revision "G2BNC" Enhancements: The "BNC" designation indicates a hardware revision optimized for noise immunity and ruggedized for higher vibration environments. It replaces older "G1" versions with superior component tolerances and improved thermal dissipation.

Installation & Power Safety Protocols

To maintain the 100% Brand New warranty and ensure operational safety, adhere to these engineering standards:

1. DC Bus Discharge: Verify that the DC bus voltage has dropped to 0V using a certified voltmeter before installation. The DCFB board connects directly to high-energy circuits capable of holding a lethal charge long after power is disconnected.

2. Fuse Verification: Before powering up, check the continuity of the on-board high-speed fuses. Blown fuses on this board typically indicate an underlying issue in the power bridge or cabling.

3. Connector Security: The DCFB board uses several high-pin-count ribbon cables and high-voltage screw terminals. Ensure all power leads are torqued to factory specifications to prevent localized heating and arcing.

FAQs

• Can the DS200DCFBG2BNC replace a DS200DCFBG1B?

  Yes. The "G2" revision is backward compatible with the "G1" series. It offers the same mounting footprint and connector layout while providing updated component technology and better signal filtering.

• Does this board require firmware programming?

  No. The DCFB is a hardware-centric power interface board. It does not contain microprocessors or software. However, you must verify that the jumper settings for voltage scaling match your specific drive's DC bus rating.

• What are the signs of a failing DCFB board?

  Typical symptoms include "DC Bus Overvoltage" or "Underload" nuisance trips, intermittent ground fault alarms, or a loss of control power to the gate amplifier boards. Physical inspection may reveal discolored resistors or blown fuses.
