Mark V Excitation Power Supply Board DS200EXPSG1ABB GE

Product Overview

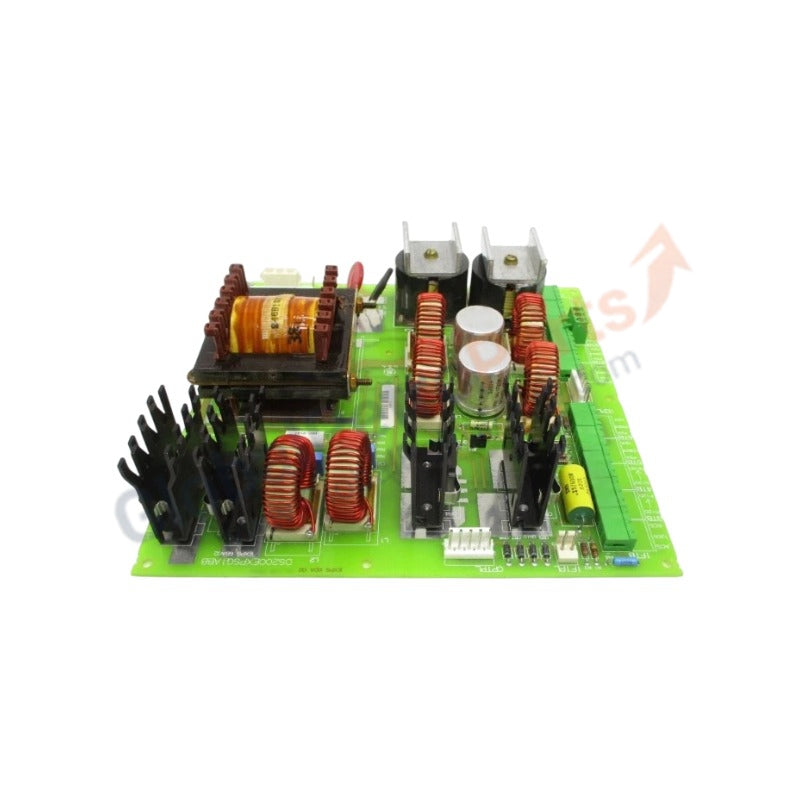

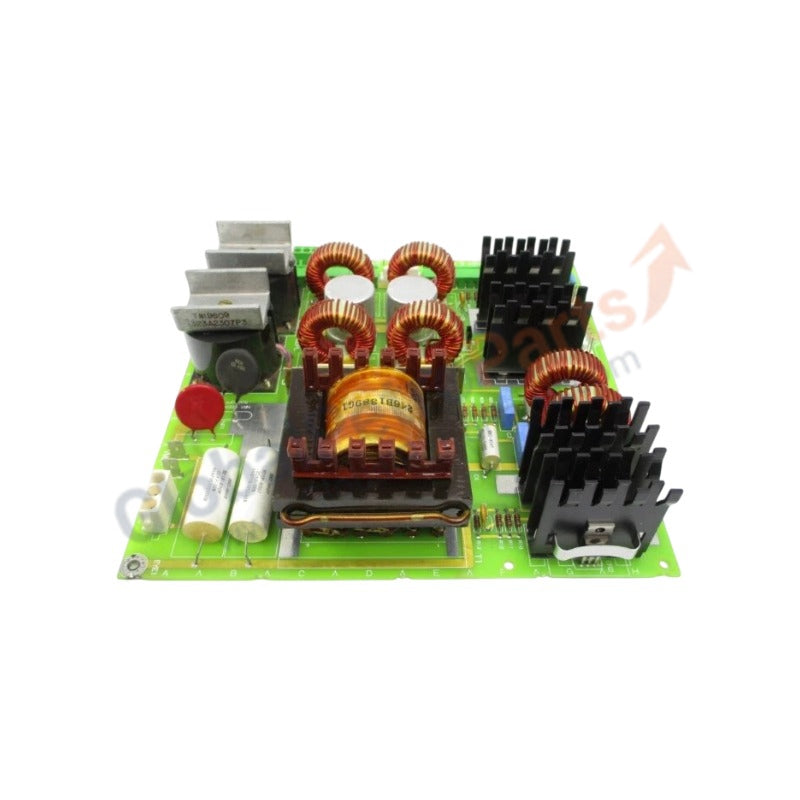

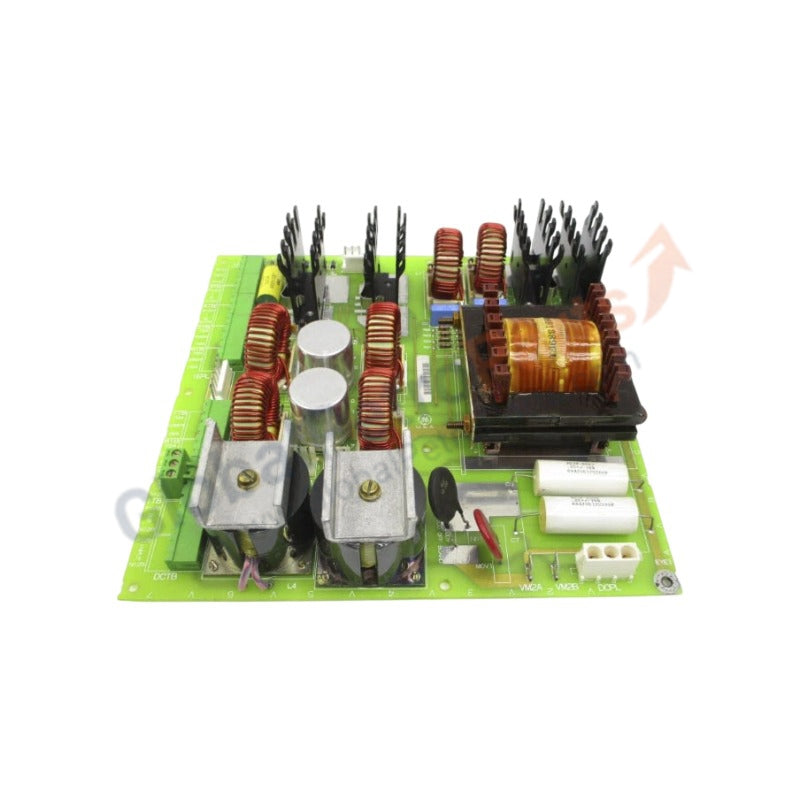

The GE DS200EXPSG1ABB (DS200EXPSG1A) functions as the primary Excitation Power Supply (EXPS) module within the GE Mark V Speedtronic turbine control system. This board provides the essential voltage regulation and distribution required for excitation control racks, converting incoming power into stabilized DC rails for firing boards and control logic. We supply this unit as 100% Brand New and Original, ensuring your generator excitation system maintains precise field control and eliminates nuisance trips caused by power fluctuations. The EXPS board acts as the foundational power layer, protecting sensitive downstream processors from electrical transients.

Technical Specifications

Engineering Advantages

The DS200EXPSG1ABB addresses specific technical requirements for excitation and power generation environments:

• High-Fidelity Power Conversion: The board utilizes high-grade linear and switching regulators to produce extremely stable DC outputs. This precision is vital for the excitation firing boards, where even minor voltage ripples can cause timing errors in the SCR gate pulses.

• Revision "G1ABB" Thermal Design: This revision incorporates upgraded heat-syncing for the power transistors and high-tolerance capacitors. These improvements prevent the "thermal drift" often seen in older G1 series boards when operated in poorly ventilated or high-ambient excitation cabinets.

• Transient Voltage Mitigation: Integrated surge suppression components neutralize high-energy spikes originating from the primary power source. This protective barrier ensures that a fault in the power distribution does not migrate to the Main Control Processor (IMCP) or IONET communication boards.

• Diagnostic Test Points: GE engineers included accessible test points on the board face. This allows field technicians to verify each voltage rail (+5, +15, -15, +24) during live operation without disconnecting cables, significantly accelerating troubleshooting during a forced outage.

Installation & Commissioning Protocols

To maintain the 100% Brand New warranty and ensure system stability, adhere to these engineering standards:

1. Jumper and Fuse Matching: Before applying power, verify that the hardware jumpers for input voltage selection match your site's source (AC vs. DC). Check that all on-board fuses are seated properly and match the specified amperage for your application.

2. Standoff Mounting: Secure the board using all factory-provided mounting holes. The board requires a solid mechanical connection to the rack to ensure proper grounding and to prevent vibration-induced solder fractures.

3. Connector Security: Ensure the high-pin-count ribbon cables are fully locked into the J-ports. Intermittent power to the control rack often stems from poorly seated cables that vibrate loose over time.

FAQs

• Can the DS200EXPSG1ABB replace a DS200EXPSG1A or G1AAA?

  Yes. The "G1ABB" is a fully backward-compatible successor. It utilizes the same physical footprint and connector layout while offering modernized components that are more resistant to heat and electrical noise than earlier versions.

• Does this board require firmware downloads?

  No. The EXPS is a hardware-based power module. It does not contain microprocessors or software. Your only configuration task is setting the physical jumpers to match your site's input voltage.

• What are common indicators of a failing EXPS board?

  Signs include "Control Power Loss" alarms, fluctuating excitation current, or a failure of the diagnostic LEDs to light up. Physical inspection may reveal discolored transformer windings or "leaking" electrolytic capacitors.
