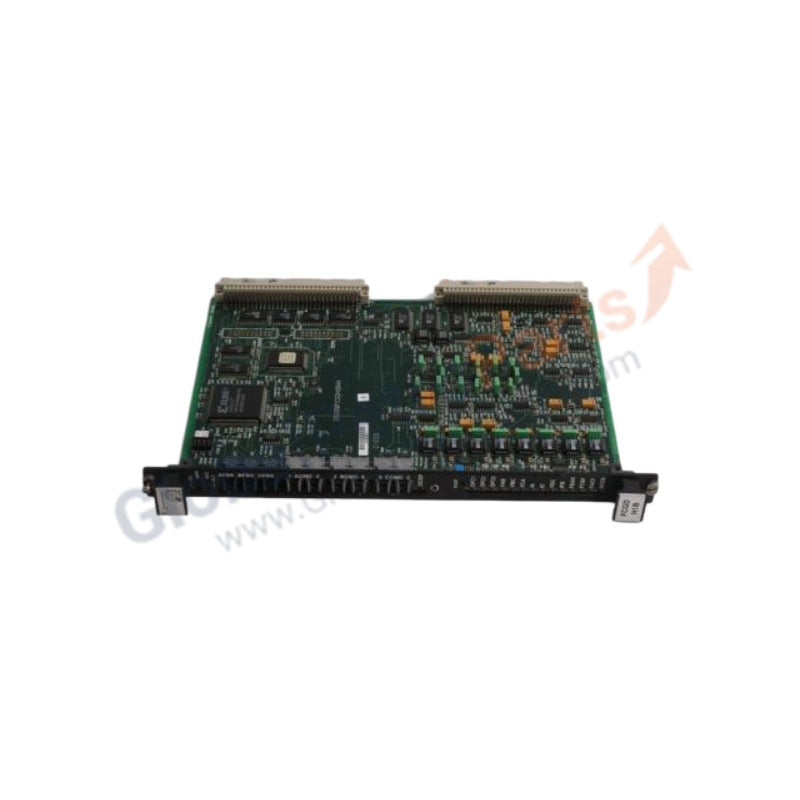

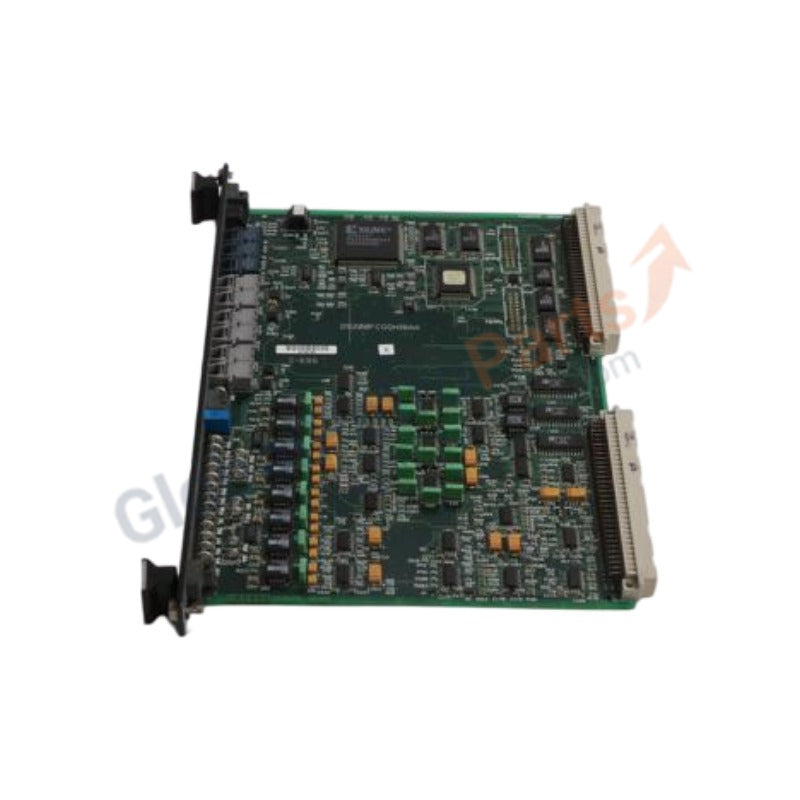

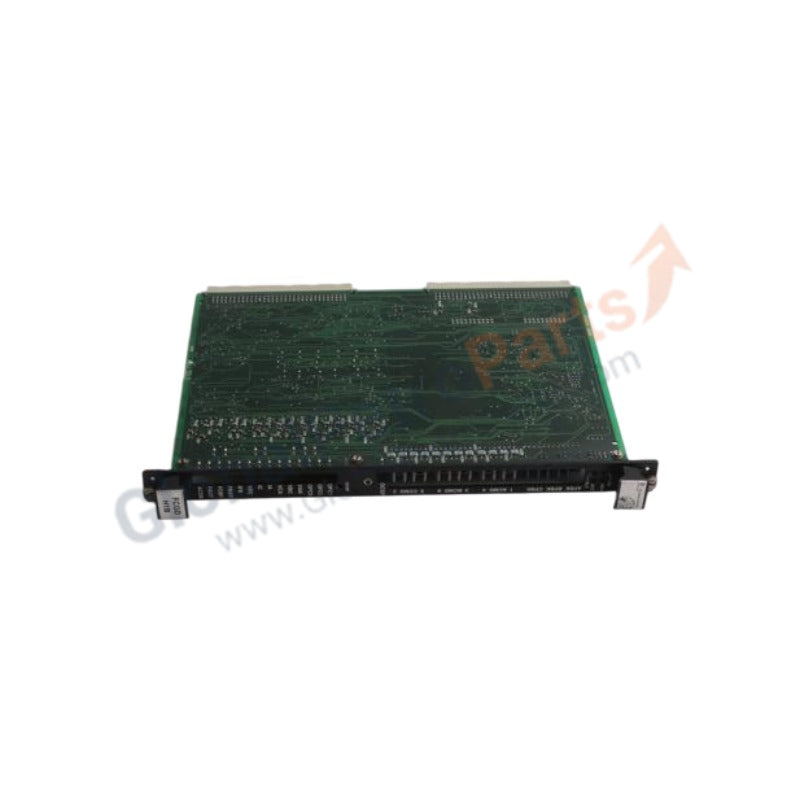

Mark V Fanuc Control Board GE DS200FCGDH1B

Product Overview

The GE DS200FCGDH1B (DS200FCGDH1B) functions as a high-performance interface and processing board within the Mark V Speedtronic and Fanuc-integrated drive control systems. This board manages the complex computational logic required for synchronized motor control and real-time data exchange between the turbine control cores and peripheral drive components. We supply this module as 100% Brand New original equipment. The DS200FCGDH1B facilitates high-speed signal processing for pulse width modulation (PWM) and gate drive signals, ensuring precise torque and speed regulation. Its integration within the Mark V architecture allows for seamless communication across the LAN (ARCNET) and backplane, making it a critical component for power generation and heavy industrial drive applications.

Technical Specifications

The DS200FCGDH1B utilizes a multi-processor hardware architecture to maintain deterministic control cycles in high-demand environments.

Engineering Advantages

The DS200FCGDH1B addresses specific industrial technical challenges through advanced board engineering:

• Synchronized Multi-Axis Control: The board manages high-speed calculation of commutation cycles for large-scale drives. This prevents mechanical vibration and torque ripples, extending the lifespan of the motor shaft and connected turbine gearboxes.

• Enhanced Electromagnetic Compatibility (EMC): GE engineers incorporated specialized ground planes and shielding on the DS200FCGDH1B. This design neutralizes high-frequency noise generated by switching power electronics, ensuring the digital logic remains stable in high-EMI drive cabinets.

• Modular Firmware Architecture: The use of socketed EPROMs allows engineers to swap site-specific firmware without replacing the entire hardware assembly. This facilitates rapid recovery during system updates or hardware failures by preserving calibrated parameters.

• Integrated Diagnostic Logic: The board features real-time monitoring of internal voltage rails and processor health. Dedicated onboard LEDs provide immediate visual confirmation of the LAN link status and hardware readiness, significantly reducing troubleshooting hours for maintenance crews.

FAQs

• How does the "H1B" revision differ from the "H1A" variant?

  The H1B revision incorporates updated integrated circuits for improved thermal management and higher processing efficiency. It serves as a backward-compatible replacement for the H1A; however, always verify that your existing system EPROMs are compatible with the updated hardware revision before commissioning.

• What precautions are necessary for the ribbon cable connections?

  Ensure all multi-pin ribbon cables are fully seated and that the locking ears on the headers are engaged. Intermittent communication faults in the Mark V system often stem from improperly seated cables subjected to industrial vibration.

• Does this board require software configuration after installation?

  The DS200FCGDH1B relies on the firmware stored in its socketed EPROMs. If you are replacing an existing board, you must transfer the EPROMs from the old unit to the new board to ensure the drive retains its original operating parameters and configuration.

• What is the recommended method for ESD protection during handling?

  Technicians must handle the DS200FCGDH1B only by its edges or the plastic pull tabs. Always wear a grounded ESD wrist strap during the installation process to prevent electrostatic discharge from damaging the high-density CMOS components.
