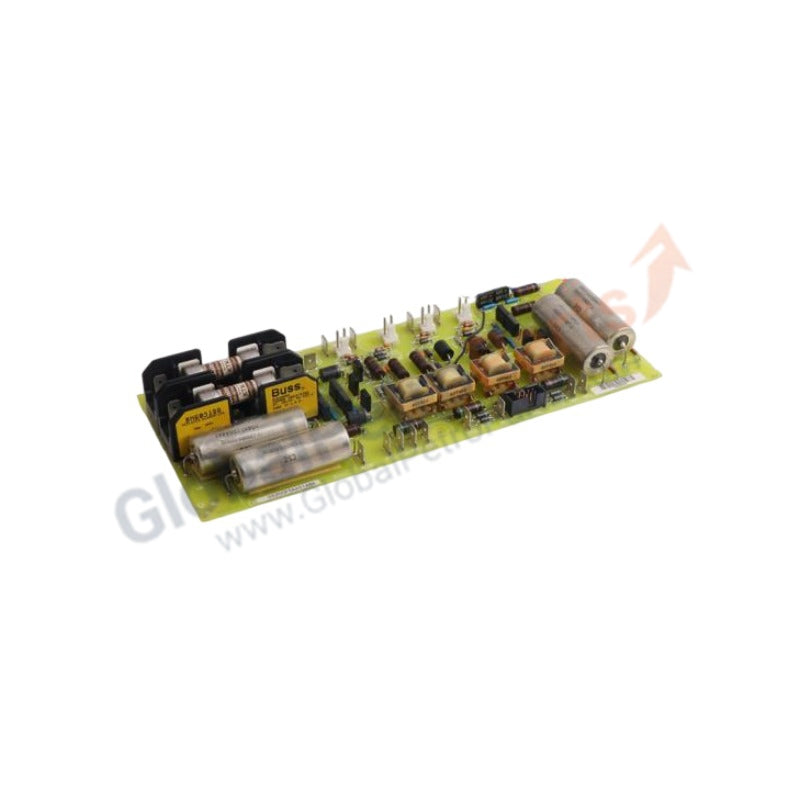

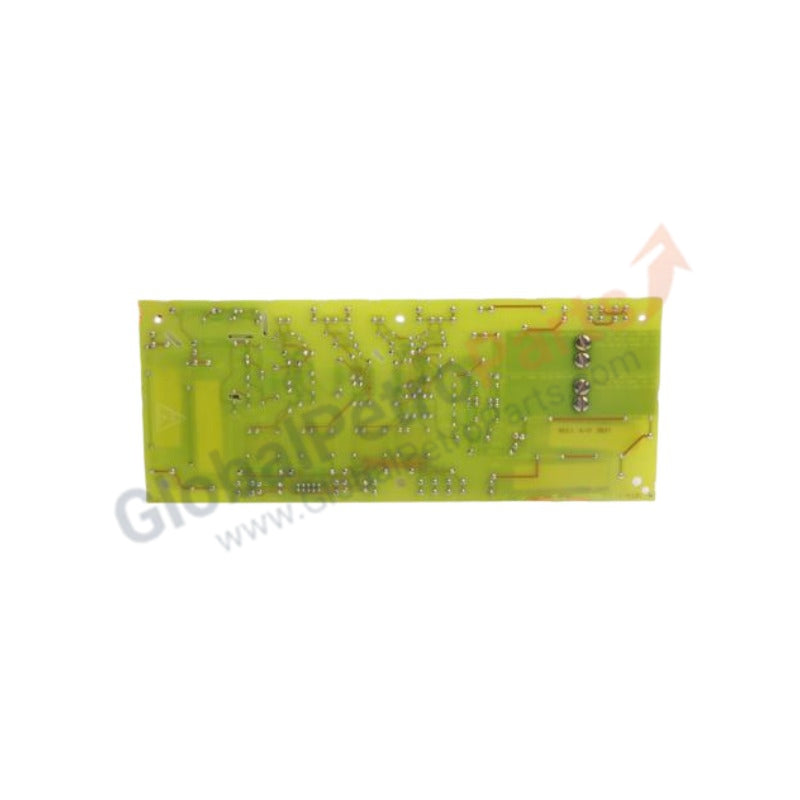

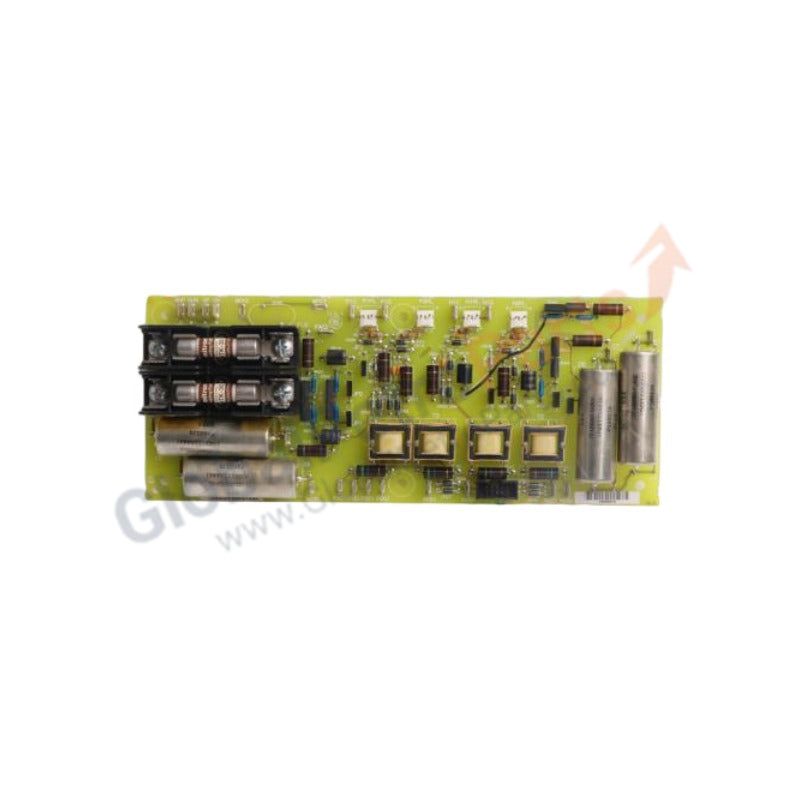

Mark V Field Supply Gate Amplifier Board DS200FSAAG1ABA GE

Product Overview

The GE DS200FSAAG1ABA (DS200FSAAG1A) functions as the dedicated power interface for the field excitation circuits in GE Mark V Drive systems. This Field Supply Gate Amplifier board amplifies low-level timing signals from the control processors into high-current pulses capable of triggering Silicon Controlled Rectifiers (SCRs). We provide this unit as 100% Brand New and Original, ensuring your excitation system maintains the precise firing angles required for stable motor field control. By isolating control logic from high-voltage power components, the DS200FSAAG1ABA ensures both operational safety and high-fidelity signal transmission in demanding industrial power environments.

Technical Specifications

Engineering Advantages

The DS200FSAAG1ABA delivers critical performance upgrades for field excitation and power regulation:

• Robust Signal Isolation: The board utilizes integrated pulse transformers to create a galvanic barrier between the control electronics and the field power bridge. This hardware separation protects the central processor from high-voltage transients and prevents bridge failures from cascading into the control rack.

• Precision Firing Synchronization: High-speed switching transistors on the FSAA board ensure that gate pulses reach the SCRs with microsecond accuracy. This precision eliminates torque ripples and maintains a steady magnetic field in large industrial motors.

• EMI/RFI Suppression: The PCB architecture incorporates advanced filtering capacitors and grounded planes to neutralize electromagnetic interference. This ensures clean trigger pulses even when installed in close proximity to high-frequency switching noise.

• Hardware Revision "G1ABA": This specific revision features ruggedized surface-mount components designed to withstand the vibration and thermal expansion typical of power generation enclosures and heavy-duty drive cabinets.

Installation & Field Safety Protocols

To maintain the 100% Brand New warranty and protect your personnel, adhere to these engineering standards:

1. De-energization Requirement: Completely discharge the DC bus and disconnect all field power sources before attempting installation. The FSAA board handles high-current pulses that can cause severe injury if mishandled.

2. Ribbon Cable Alignment: Carefully seat the ribbon cables into the J-ports. A loose or misaligned connection can lead to unbalanced firing pulses, which may cause the field bridge to overheat or trip on "Loss of Field" faults.

3. Grounding Verification: Secure the board using all factory standoffs to ensure a low-impedance path to the system ground. Failure to ground the board properly often results in "ghost" firing pulses caused by induced electrical noise.

FAQs

• Can the DS200FSAAG1ABA replace an older DS200FSAAG1A?

  Yes. The "ABA" version represents the most recent stable revision. It serves as a direct drop-in replacement, providing identical mounting footprints and electrical pinouts while utilizing more reliable modern components.

• Does this board require firmware programming?

  No. The DS200FSAAG1ABA is a hardware amplifier. It does not contain microprocessors or EEPROMs. However, you must ensure your control board settings match the firing requirements of your specific field bridge.

• What are the common symptoms of a failing FSAA board?

  Signs include erratic field current readings, "Phase Loss" alarms within the field exciter, or visible discoloration on the pulse transformers. If the motor fails to maintain stable torque under load, the gate amplifier is a primary troubleshooting point.
