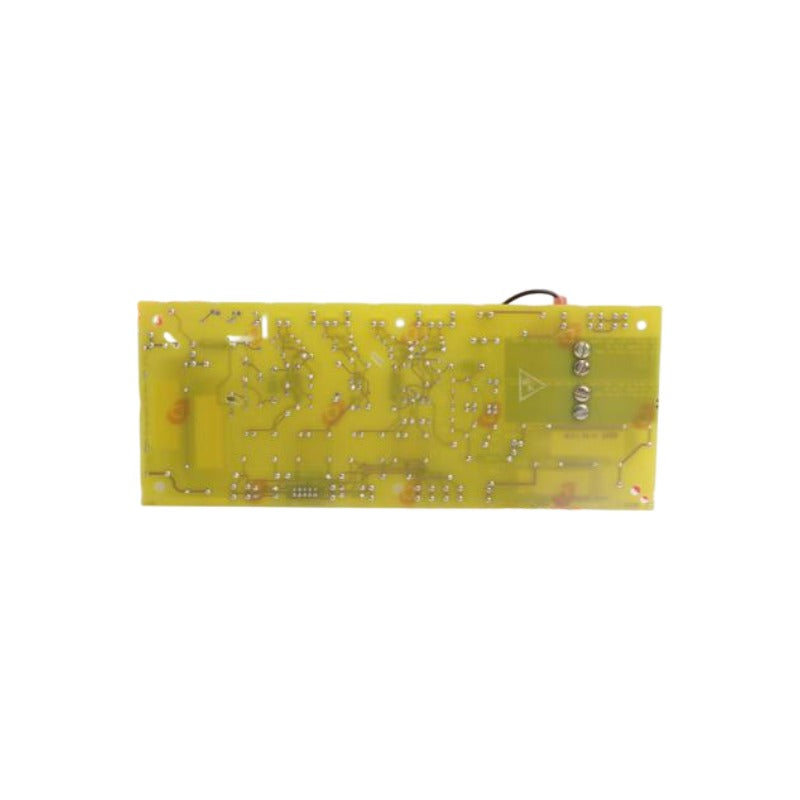

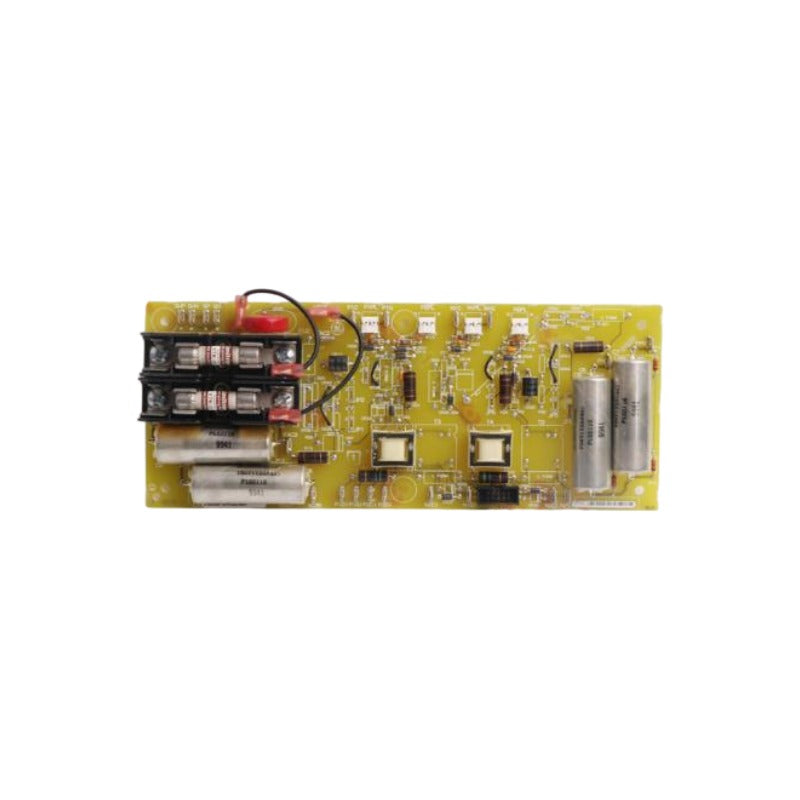

Mark V Gate Amplifier Board GE DS200FSAAG2ABA

Product Overview

The GE DS200FSAAG2ABA (DS200FSAAG2A) functions as a critical power interface module within the GE Mark V Drive system. This Gate Amplifier Board bridges the gap between low-level control logic and high-power switching components, specifically amplifying trigger signals to drive Silicon Controlled Rectifiers (SCRs) or thyristors in a power bridge. We provide this component as 100% Brand New and Original, ensuring your power conversion system maintains precise timing and robust switching performance. The DS200FSAAG2ABA is essential for managing the firing pulses that regulate motor speed, torque, and voltage output in heavy-duty industrial applications.

Technical Specifications

Engineering Advantages

The DS200FSAAG2ABA provides specific technical solutions for high-power switching environments:

• Precision Pulse Isolation: The board utilizes high-performance pulse transformers to isolate the sensitive Mark V control electronics from the high-voltage power bridge. This prevents catastrophic "blow-back" failures and ensures signal integrity across the switching interface.

• High-Speed Signal Amplification: It converts low-current logic signals from the Signal Processor board into the high-current pulses required to reliably "fire" large industrial thyristors. This ensures the SCRs turn on fully and simultaneously, reducing heat loss and harmonic distortion.

• Revision "G2ABA" Stability: As a later hardware revision, this board incorporates improved capacitor technology and ruggedized trace paths. These upgrades offer better resistance to the high-frequency vibrations and thermal cycling common in power generation and large motor drive cabinets.

• Integrated Diagnostics: The board layout includes test points that allow field engineers to use an oscilloscope to verify firing pulse symmetry and amplitude without disconnecting the power bridge, facilitating faster commissioning.

Installation & System Safety Guidelines

To maintain the 100% Brand New condition and ensure safe operation, adhere to these engineering standards:

1. High-Voltage Safety: Ensure the drive is completely de-energized and all DC bus capacitors are fully discharged before installation. The FSAA board interfaces directly with high-power switching circuits.

2. Fiber Optic and Ribbon Handling: Carefully inspect the ribbon cable connectors for debris. Even a slight misalignment in the firing command signal can cause unbalanced bridge operation and lead to SCR failure.

3. Mounting and Grounding: Secure the board using all provided standoffs to ensure proper grounding. Poor grounding on the gate amplifier can introduce electrical noise into the firing pulses, causing "misfires" or "ghost triggers."

FAQs

• Can the DS200FSAAG2ABA replace a DS200FSAAG1A?

  Yes, the "G2ABA" is a functional successor to the "G1A" series. It offers improved hardware components while maintaining the same physical mounting footprint and electrical connector pinouts.

• Does this board require software configuration?

  No. Unlike control or communication boards, the Gate Amplifier is a hardware-driven power interface. It does not contain EEPROMs or require software programming; however, you must ensure it is compatible with your specific power bridge voltage rating.

• What are the signs of a failing FSAA board?

  Typical symptoms include unbalanced phase currents, "Gate Drive Fault" alarms on the Mark V interface, or physical signs of overheating on the pulse transformers. If one phase is drawing significantly more current than others, the gate amplifier is often the primary suspect.
