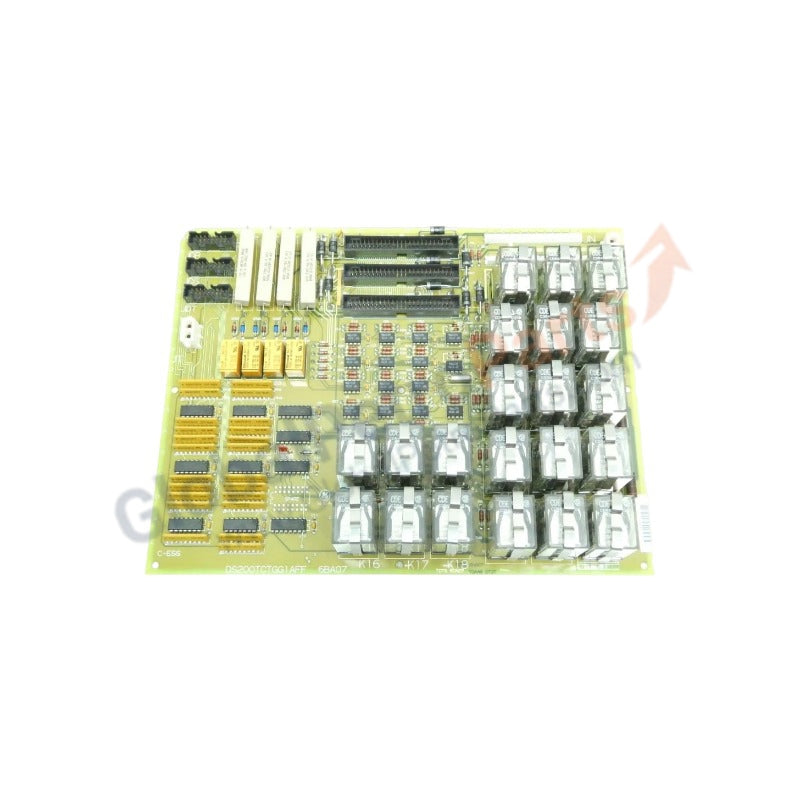

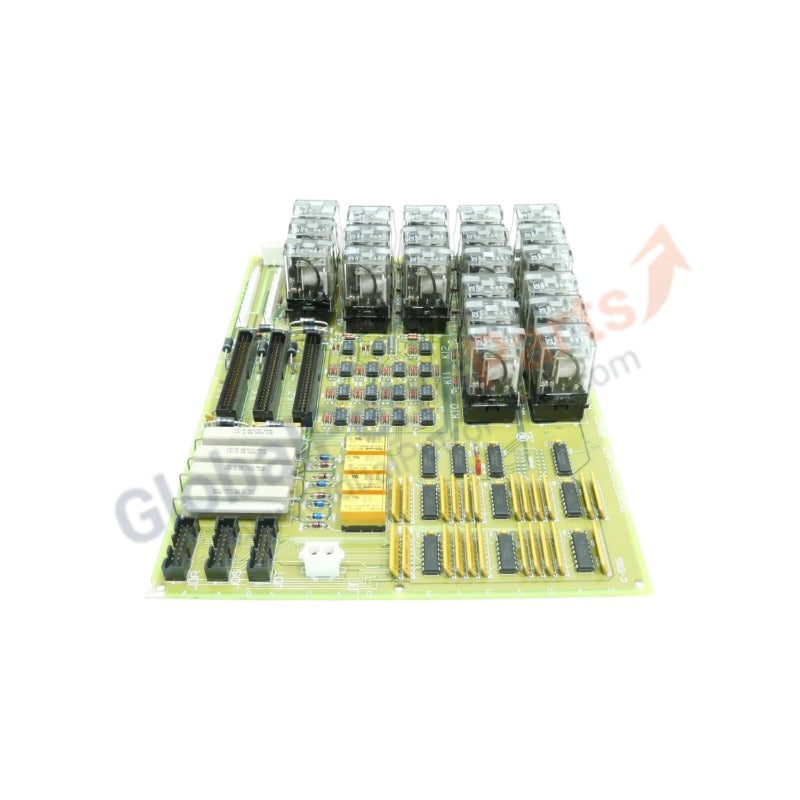

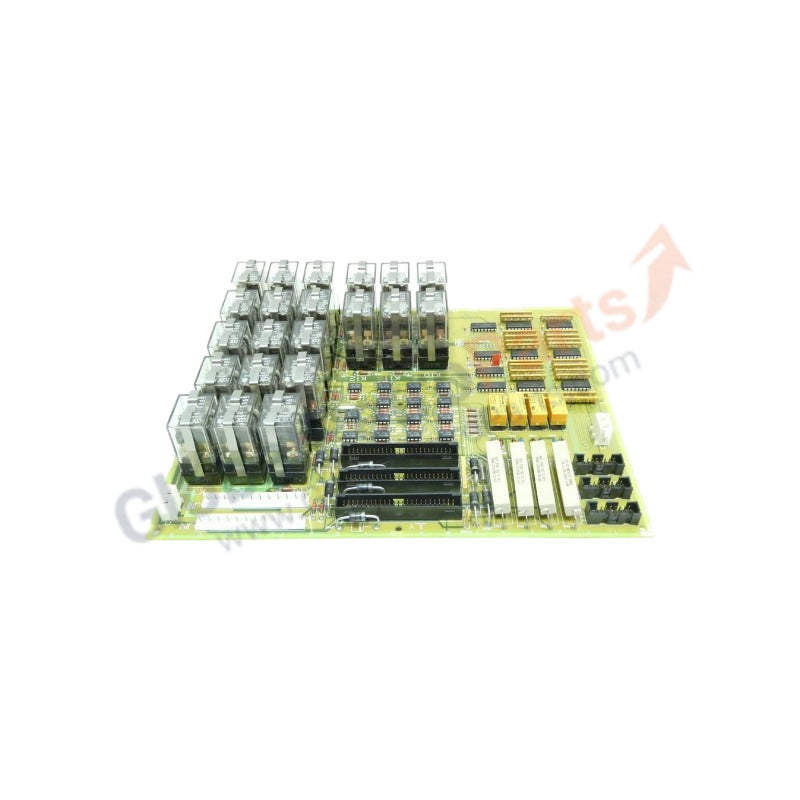

Mark V Simplex Trip Board GE DS200TCTGG1AFF

Product Overview

The GE DS200TCTGG1AFF (DS200TCTGG1AFF) functions as the primary Simplex Trip Board within the Speedtronic Mark V control framework. It provides the critical hardware interface for turbine emergency trip strings and protective logic execution. Unlike TMR (Triple Modular Redundant) variations, this board specializes in Simplex configurations, routing essential protective signals such as overspeed detection, flame loss, and vibration trips to the control processor. We supply this component as 100% Brand New and Original, ensuring the high-speed switching and circuit integrity required to safeguard multi-million dollar turbine assets during critical failure modes.

Technical Specifications

Engineering Advantages

• High-Integrity Trip Execution: The board utilizes low-impedance copper traces and heavy-duty relays to ensure virtually zero-latency trip signal propagation. This architecture guarantees that the turbine moves to a "safe state" within milliseconds of a fault detection.

• Integrated Noise Suppression: Advanced onboard filtering components eliminate transient voltage spikes and electromagnetic interference (EMI) often present in turbine auxiliary compartments. This prevents nuisance trips caused by electrical noise from adjacent high-power switchgear.

• Maintenance-Friendly Layout: The DS200TCTGG1AFF features organized terminal blocks with distinct labeling for field wiring. This design allows maintenance engineers to perform rapid loop checks and verify trip bus continuity without disturbing existing wiring harnesses.

• Environmental Hardening: GE applies industrial-grade conformal coating to the PCB, protecting sensitive surface-mount components from the humidity, oil mist, and fine particulates typically found in power plant environments.

FAQs

• Can I use the DS200TCTGG1AFF in a TMR (Triple Modular Redundant) system?

  No. This board specifically targets Simplex configurations. TMR systems require the TCTG G1A or G1B variants designed for three-processor voting logic. Always verify your cabinet architecture before installation.

• What is the significance of the "AFF" suffix?

  The "AFF" suffix indicates a specific functional revision level that includes optimized relay response times and improved heat dissipation. This version is fully backward compatible with earlier "A" or "AF" revisions within the TCTG G1 series.

• Are there any specific requirements for field wiring?

  Yes. We recommend using shielded twisted-pair cabling for all protective input loops connected to the TCTG board. Ensure that the shields ground at the cabinet entry point to maintain the integrity of the integrated noise suppression circuitry.

• How do I verify if the board is active?

  The board includes status LEDs that monitor the health of the trip bus and power supply. A visual inspection of these indicators during the startup sequence confirms that the protective circuits are armed and ready for operation.
