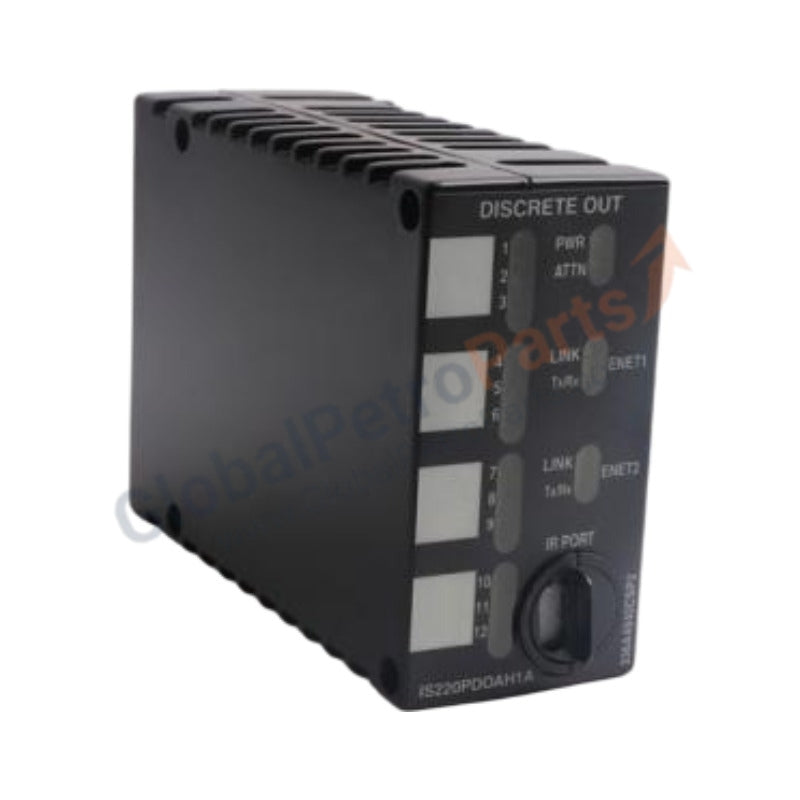

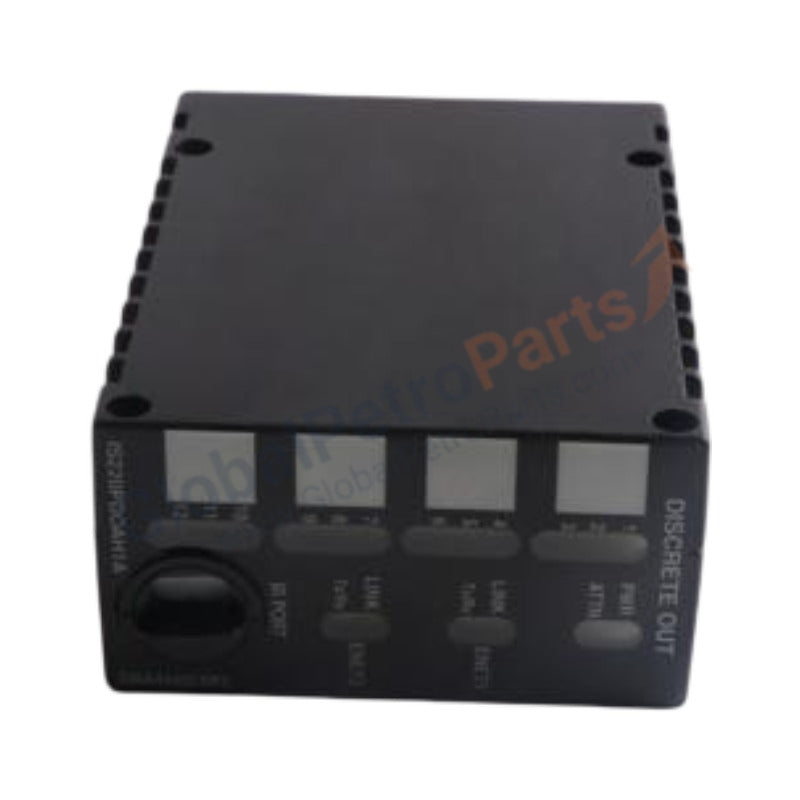

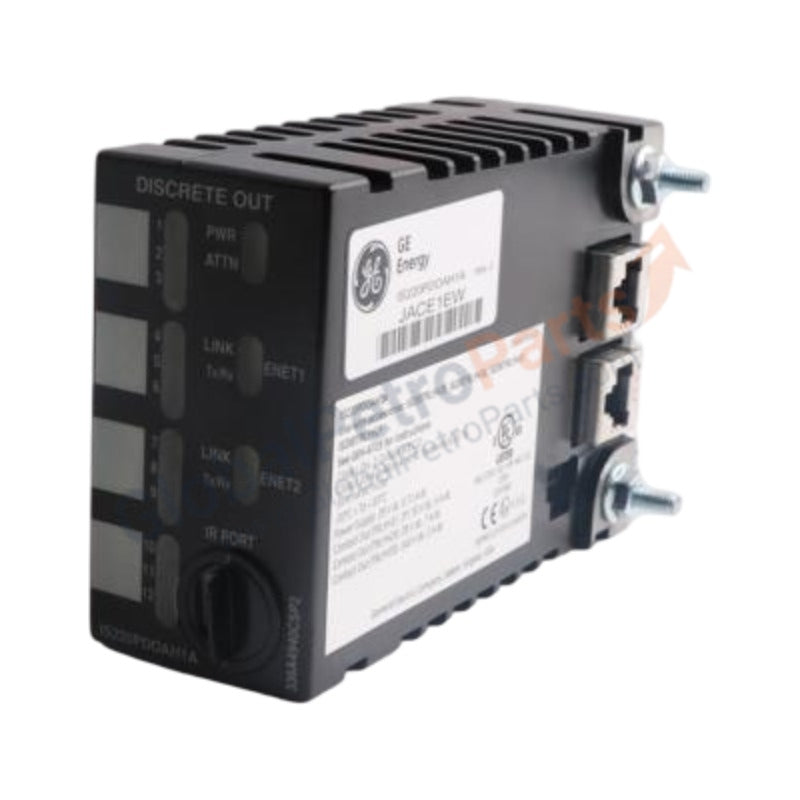

Mark VIe Discrete Output I/O Pack IS220PDOAH1A GE

Product Overview

The GE IS220PDOAH1A (PDOA) functions as a high-density Discrete Output I/O Pack within the Mark VIe Distributed Control System (DCS). This module provides the essential interface between the turbine controller and field-side end elements, controlling up to 12 or 24 discrete outputs depending on the associated terminal board. It receives digital commands via the dual-redundant IONet and actuates solenoid valves, motor starters, and pilot lights with millisecond precision. We supply this unit as a 100% Brand New and Original component. By integrating advanced voting logic and hardware-level diagnostics, the PDOAH1A ensures that critical control actions occur reliably, preventing false trips and minimizing unplanned downtime in utility-scale power plants.

Technical Specifications

Engineering Advantages

• TMR Control and Voting Logic: The IS220PDOAH1A supports Triple Modular Redundancy (TMR) architectures. In a TMR configuration, three independent PDOA packs receive data from the R, S, and T controllers and perform hardware-level voting on the terminal board. This "two-out-of-three" logic ensures that a single module failure never triggers an accidental turbine shutdown.

• Advanced Load Integrity Monitoring: This pack does not merely "fire and forget." It continuously monitors the health of each output circuit by measuring the voltage and current at the load. It detects open circuits, short circuits, and stuck relay conditions immediately, reporting these faults back to the ToolboxST™ software for predictive maintenance.

• Hardware-Synchronized Execution: The PDOA utilizes a high-speed RISC processor to synchronize its output states with the controller heartbeat. This eliminates "chatter" and ensures that complex sequencing—such as turbine startup or emergency load shedding—occurs with strict temporal deterministic accuracy.

• Aggressive Environmental Hardening: GE engineers designed the H1A revision to thrive in the harsh electromagnetic and thermal conditions of a turbine enclosure. The module features integrated transient voltage suppression (TVS) and operates within a broad temperature range of -30 to 65 Celsius without requiring external cooling fans.

FAQs

• Which terminal boards are compatible with the IS220PDOAH1A?

  The PDOA pack typically mates with the TDOA (Discrete Output) and TRLY (Relay Output) terminal boards. The specific board selection determines whether the pack drives external 24 VDC loads directly or interfaces with dry-contact relays.

• How do the diagnostic LEDs indicate status?

  The front panel includes a multi-color LED array. A flashing green light indicates a synchronized IONet connection. A solid amber or red light signifies a "Fault" or "Status" error, such as a blown fuse on the terminal board or an internal hardware mismatch.

• Is this module a direct replacement for earlier PDOA revisions?

  Yes. The IS220PDOAH1A is backward compatible with systems using older Mark VIe hardware. However, always verify that your system’s firmware and ToolboxST™ version support the H1A revision to ensure all diagnostic features function correctly.

• Does the module require field calibration?

  No. As a discrete (on/off) device, the IS220PDOAH1A does not require analog calibration. It performs self-diagnostics upon power-up to verify internal logic integrity and relay driver health.
