Mark VIe Turbine Specific I/O Pack IS220PTURH1B GE

Product Overview

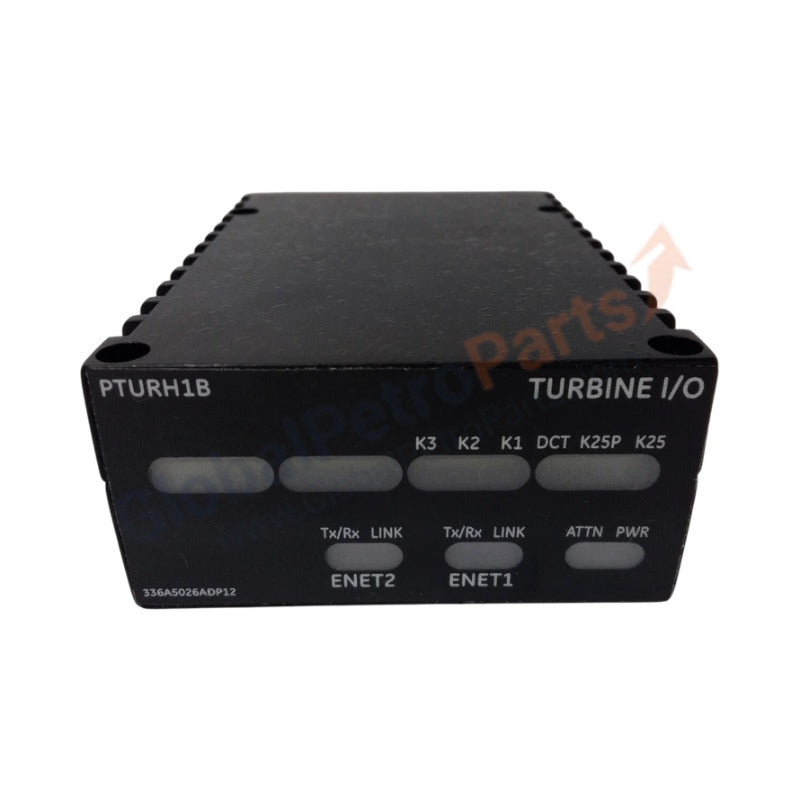

The GE IS220PTURH1B operates as a high-reliability, turbine-specific I/O pack within the General Electric Mark VIe Speedtronic control platform. This primary module interfaces directly with critical turbine machinery components, processing input signals from magnetic pickups, automatic synchronizing sub-systems, and shaft voltage monitors. It translates specialized sensor frequencies and structural telemetry into digitized data packet networks across the plant control layer. The local microprocessor core evaluates speed acceleration profiles in real time, serving as a foundational pillar for safety actuation and automated startup sequences in utility-scale gas and steam turbines.

We supply this crucial component exclusively as 100% brand new, original factory-sealed inventory to guarantee complete component lifespan and zero operational defects within your governor control systems.

Technical Specifications

The IS220PTURH1B incorporates complex speed-tracking hardware and signal isolation filters inside a compact, panel-mountable housing. The following table highlights the definitive electronic, networking, and physical specifications:

Engineering Advantages

• High-Frequency Pulse Processing: The onboard hardware counters capture high-frequency pulses from magnetic pickup sensors on the turbine shaft. This direct tracking allows the module to calculate rotational speed variations down to fractions of an RPM, enabling instant reactions to sudden load rejection events.

• Redundant IONet Network Pathing: The dual RJ-45 Ethernet connection ports link independently into the internal IONet fabric. This configuration maintains uninterrupted speed telemetry streaming to the main controller even if a physical network cable breaks or suffers a terminal breakdown.

• Integrated Generator Synchronization: The circuit design handles voltage and phase matching directly at the I/O pack layer. By merging automatic synchronization monitoring with speed control, the module eliminates external matching components and shortens breaker closure windows.

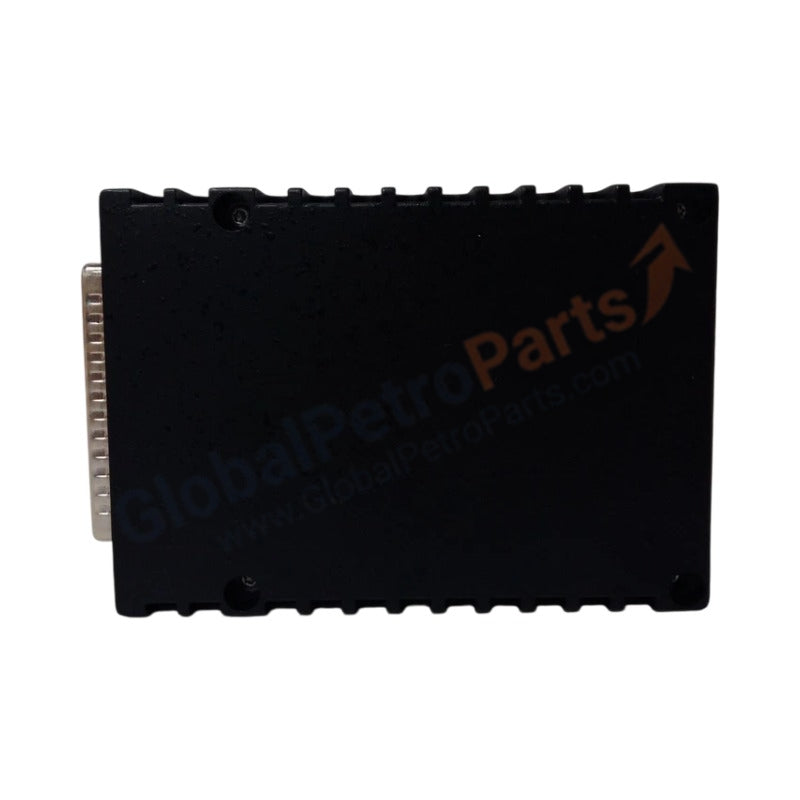

• Fanless Convection Heat Dissipation: The rigid metal housing relies entirely on a passive external heat sink matrix for thermal regulation. Eliminating moving cooling fans prevents dust collection across internal circuit traces, maximizing operational uptime in hot turbine control rooms.

FAQs

• What technical updates does the 'H1B' suffix introduce over the older 'H1A' pack?

  The "H1B" hardware revision replaces obsolete internal chips with updated silicon baselines, which lowers heat dissipation and improves component long-term stability. The "H1B" maintains complete backward compatibility and drops directly onto the identical terminal board configurations used by the "H1A".

• Which terminal board variants accept the IS220PTURH1B module?

  The high-density d-sub plug interface on the backplate of the IS220PTURH1B mates natively with standard GE turbine terminal boards, including the TTURH1A, TTURH1B, and TTURH1C functional safety board models.

• Can this specific module manage proportional servo valve positioning loops?

  No. The IS220PTURH1B focuses strictly on speed tracking, shaft voltage detection, and system synchronization tasks. To drive hydraulic actuator servo valves, you must pair this module with a dedicated valve positioning pack, such as the GE IS220PSVOH1A.

• Does this pack support hot-swapping under live control room scenarios?

  Yes. In dual or Triple Modular Redundant (TMR) turbine protection panels, you can hot-swap a faulted IS220PTURH1B module without interrupting active operations or cutting power to adjacent running processors.
