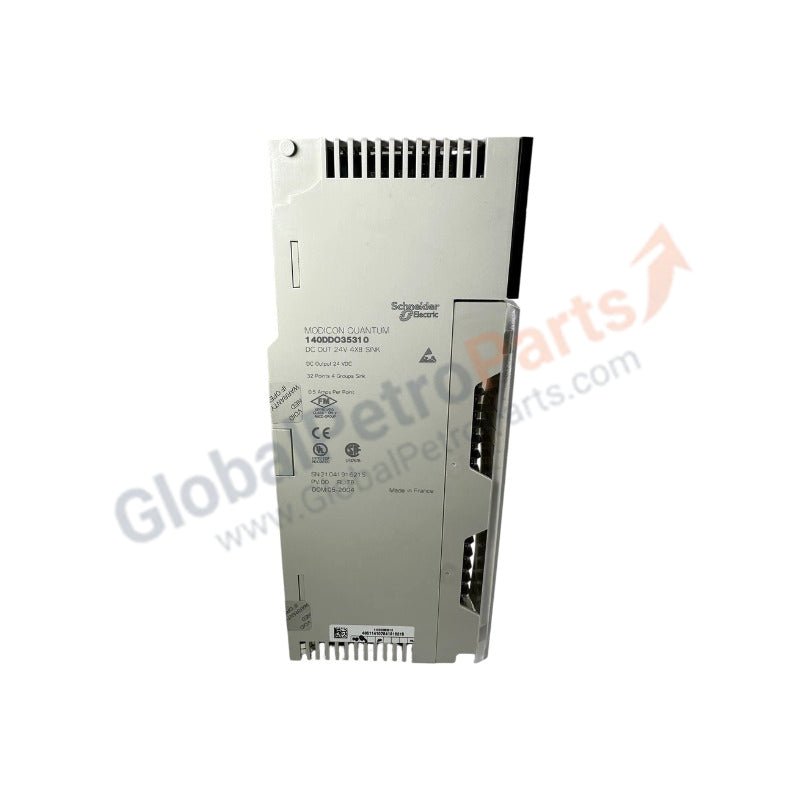

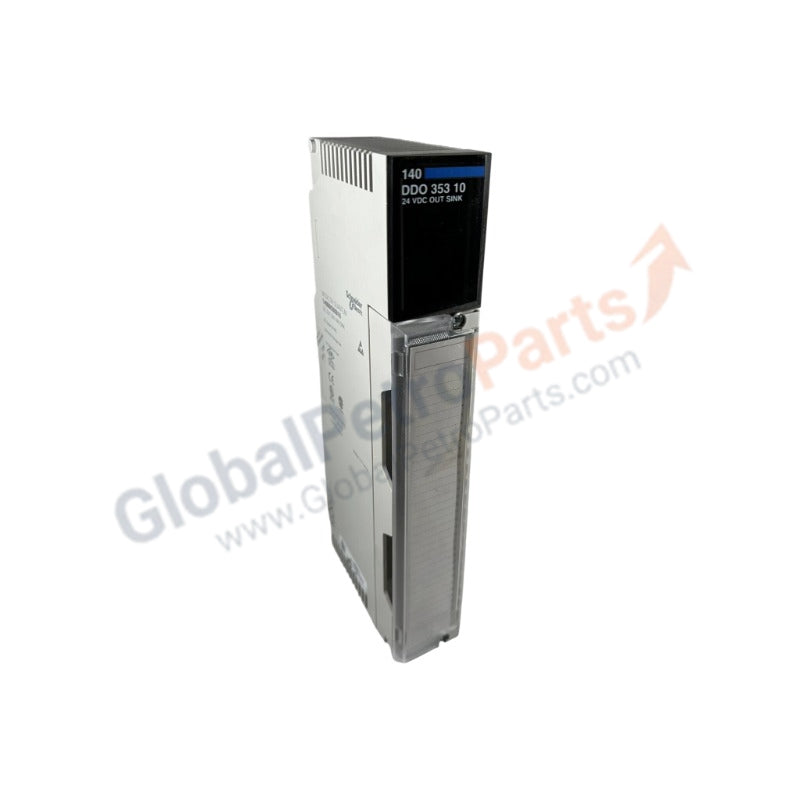

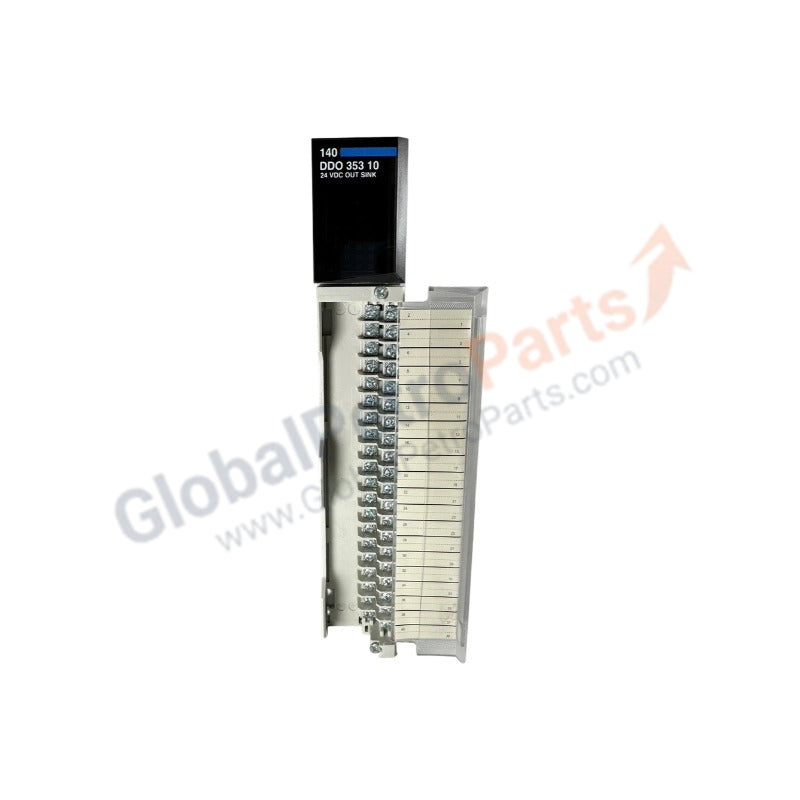

Modicon Quantum Schneider 140DDO35310 Discrete Output Module

Product Overview

The Schneider Electric 140DDO35310 functions as a high-density digital interface for the Modicon Quantum automation platform. It provides 32 discrete outputs configured in four groups of eight, specifically designed for Negative Logic (Sink) switching. This module manages 24V DC loads with high efficiency, supporting up to 16A total module current. We supply this unit as 100% Brand New and Original, ensuring full compatibility with your existing Quantum backplane and mission-critical control architectures.

Technical Specifications

The 140DDO35310 offers rapid response times and robust isolation for industrial environments.

Engineering Advantages

• Optimized High-Density Control: Managing 32 points within a single standard Quantum slot maximizes rack utilization. This density allows engineers to scale complex I/O systems without expanding the physical footprint of the control cabinet.

• Rapid Signal Switching: The module achieves response times under 1ms. This ultra-fast switching speed eliminates lag in high-speed sorting, packaging, and synchronized motion control applications.

• Fault Diagnostics & Protection: Integrated LEDs immediately signal "Loss of Field Power" or "Blown Fuse" conditions. Each group features a 5A internal fuse, preventing localized electrical faults from cascading and damaging the entire I/O rack.

• Environmental Resilience: With an operating altitude rating of up to 5000m and high resistance to electrostatic discharge (8kV air), this module sustains performance in extreme geographical locations and electrically noisy environments.

FAQs

• Q: What does "Negative Logic (Sink)" mean for my wiring?

• A: In a sink configuration, the 140DDO35310 connects the load to the negative rail (0V) when the output is active. You must connect the other side of your load to the positive 24V DC supply.

• Q: How does the module handle inductive loads like solenoids?

• A: The module manages inductive energy effectively. Follow the formula $Inductance(H) = 0.5 / ((current(A))^2 \times (switching frequency(Hz)))$ to ensure your load remains within the safe operating area of the internal circuitry.

• Q: Can I replace a 140DDO35310 while the system is under power?

• A: While Modicon Quantum supports Hot Swapping of certain modules, always verify your specific backplane and CPU configuration. Ensure you have cleared field power from the output terminal block before removal to prevent arcing.

• Q: What is the significance of the 1780 Vrms isolation?

• A: This high isolation barrier protects the sensitive Quantum backplane bus and CPU from high-voltage transients occurring on the field side, significantly reducing the risk of total system failure during external electrical faults.
