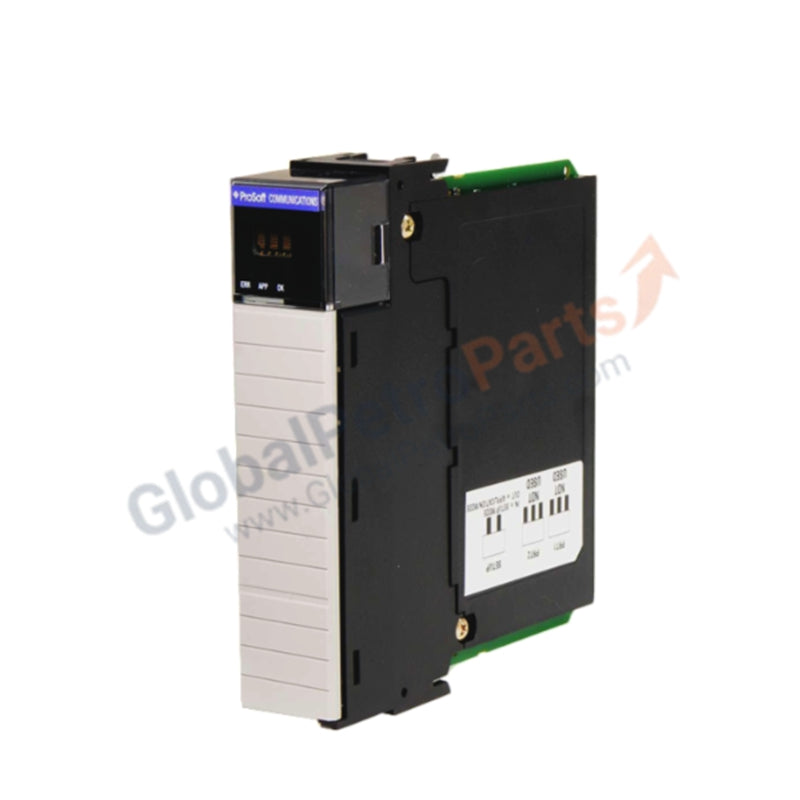

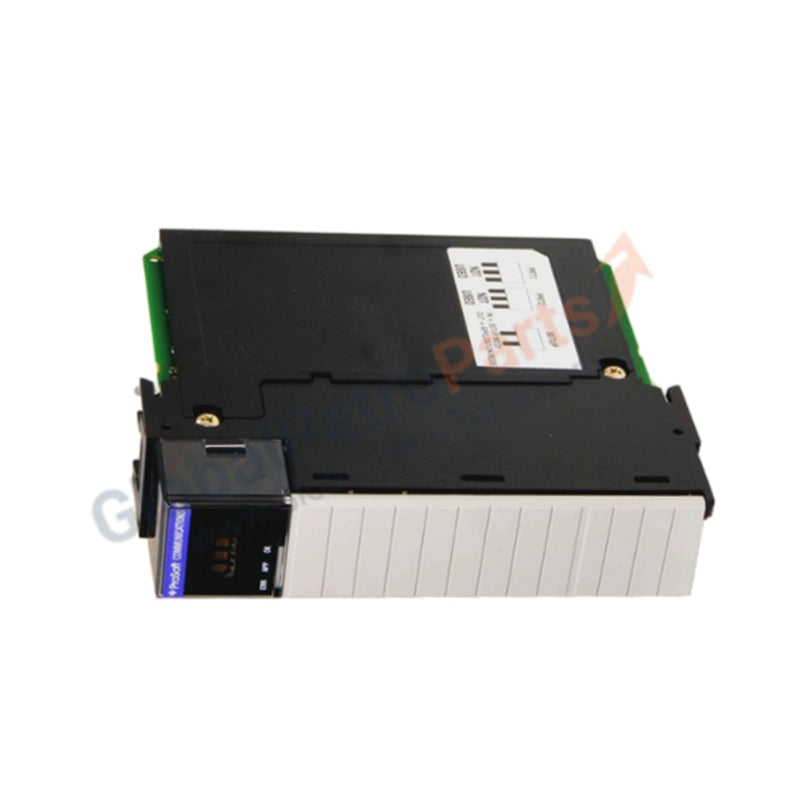

MVI56E-MNETC | ProSoft | Modbus TCP/IP Enhanced Client/Server Communication Module

Product Description

The MVI56E-MNETC Enhanced Communication Module from ProSoft is designed to provide seamless Modbus TCP/IP connectivity for PLC systems. Operating as both client and server, this module ensures reliable communication between controllers and distributed devices. With robust environmental tolerance and conformal coating available in the MVI56E-MNETCXT variant, it is suitable for standard and harsh industrial conditions.

Technical Specifications

• Model Number: MVI56E-MNETC

• Manufacturer: ProSoft Technology

• Product Type: Modbus TCP/IP Enhanced Communication Module (Client/Server)

• Backplane Current Load:

• 800 mA @ 5 VDC

• 3 mA @ 24 VDC

• Operating Temperature:

• Standard: 0°C to 60°C (32°F to 140°F)

• Extended (MVI56E-MNETCXT): -25°C to 70°C (-13°F to 158°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Relative Humidity: 5% to 95% (non-condensing)

• Extreme Environment Protection: Conformal coating (MVI56E-MNETCXT)

• LED Indicators: Application Status (APP), Module Status (OK), ERR (not used)

• Shipping Weight: 2 kg

Key Features

• Supports Modbus TCP/IP client and server communication

• Enhanced environmental tolerance with conformal coating option

• Compact design for rack-mounted PLC integration

• Clear LED indicators for module and application status

Application Scenarios

• Integration of Modbus TCP/IP devices into PLC-based automation systems

• Industrial environments requiring reliable client/server communication

• Harsh operating conditions supported by conformal-coated variant

FAQ

Q: What is the difference between MVI56E-MNETC and MVI56E-MNETCXT?  A: The XT version includes conformal coating for extreme or harsh environments.

Q: What voltage does the module require?  A: It consumes 800 mA at 5 VDC and 3 mA at 24 VDC.

Q: What communication role does the module support?  A: It functions as both Modbus TCP/IP client and server.
