MVI69-DFNT | Prosoft EtherNet/IP Client/Server Comm Module

Product Overview

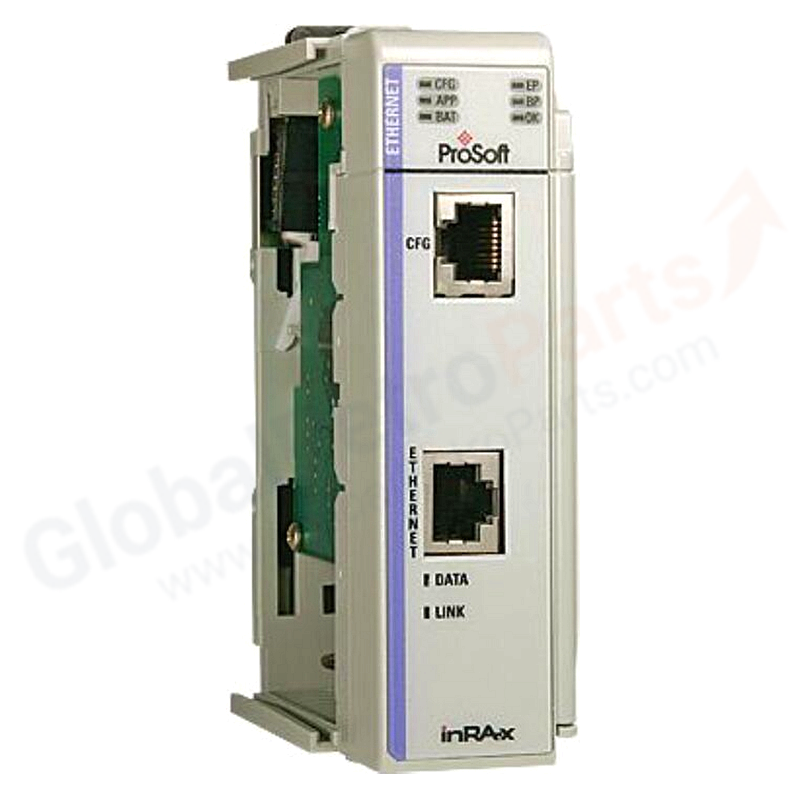

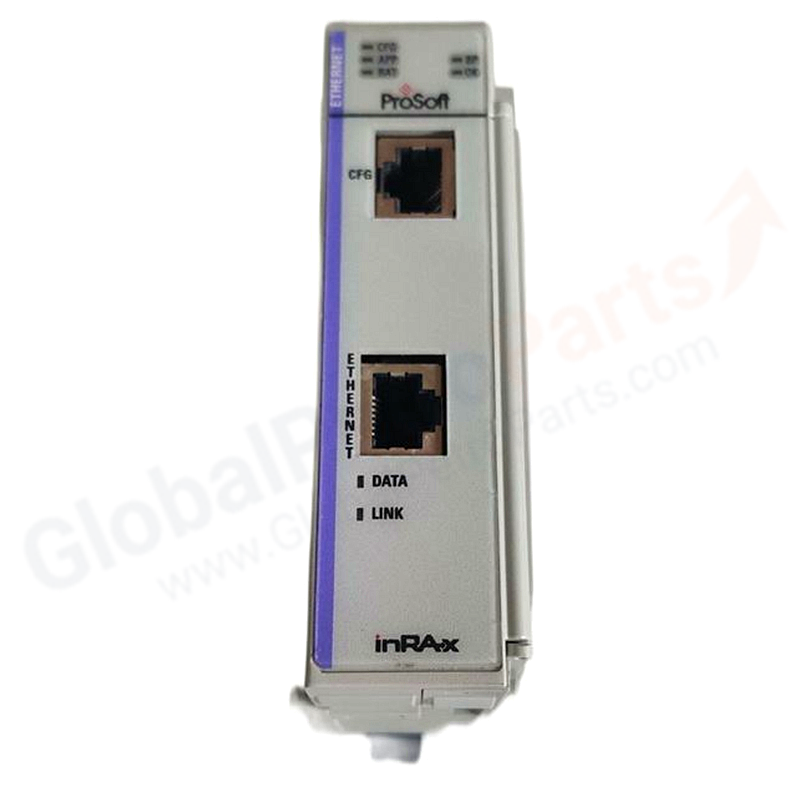

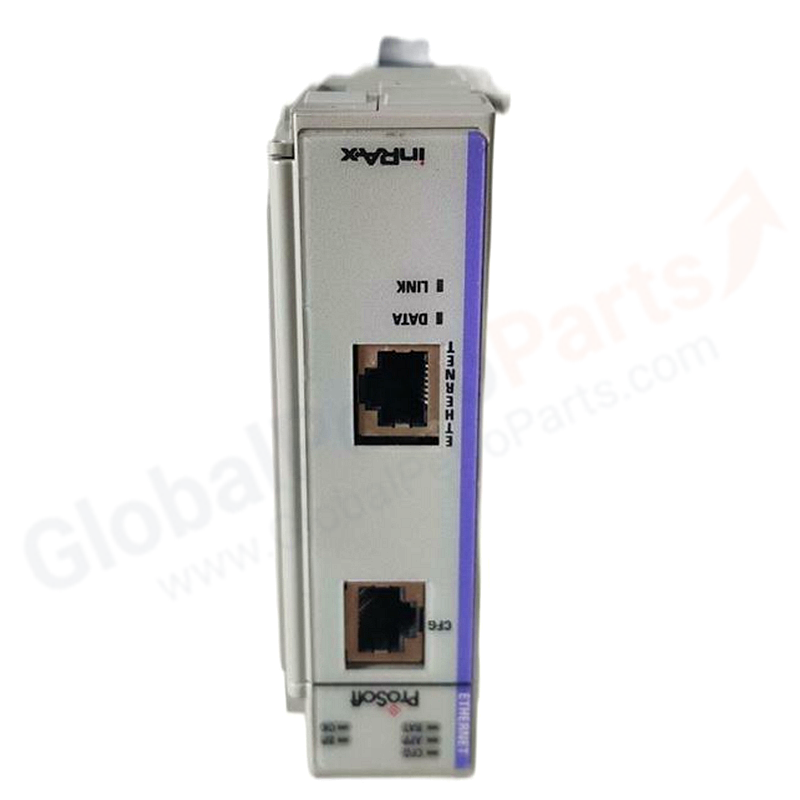

The ProSoft MVI69-DFNT is an EtherNet/IP Client/Server Communication Module designed for the Allen-Bradley SLC 500 processor platform. It enables SLC 500 processors to interface seamlessly with other EtherNet/IP compatible devices, providing a bridge between legacy SLC systems and modern Ethernet-based control networks. The MVI69-DFNT features one RJ45 serial configuration port and one RJ45 Ethernet port for EtherNet/IP communication.

Key Technical Specifications

• Product Type: EtherNet/IP Client/Server Communication Module
• Series: ProSoft MVI69
• Platform: Allen-Bradley SLC 500
• Configuration Port: 1 × RJ45 Serial (P1)
• Ethernet Port: 1 × RJ45 (EtherNet/IP)
• Protocol Support: EtherNet/IP Client/Server
• Function: Allows SLC processors to interface with EtherNet/IP devices
• UPC/GTIN: 00886739894192
• Status: Current Product
• Origin: USA

Key Features

• EtherNet/IP Integration: Connects SLC 500 to modern Ethernet networks
• Client/Server Capability: Both initiate and respond to EtherNet/IP connections
• Serial Configuration: Dedicated RJ45 port for module setup
• Legacy System Upgrade: Extends SLC 500 life by adding Ethernet capability

Applications

• SLC 500 to EtherNet/IP device communication
• Legacy SLC system modernization
• Integration with modern HMI/SCADA systems
• Plant-wide Ethernet network connectivity

Installation Guide

1. Install in SLC 500 rack
2. Connect EtherNet/IP cable to RJ45 Ethernet port
3. Connect configuration cable to P1 serial port
4. Configure IP address and EtherNet/IP parameters
5. Set up client/server connections in PCB

FAQ

Q: Is MVI69-DFNT compatible with SLC 5/05?
A: Yes, it works with SLC 500 processors including SLC 5/05.

Q: Can it communicate with ControlLogix via EtherNet/IP?
A: Yes, it can communicate with any EtherNet/IP compatible device including ControlLogix.

Model Selection Tips

• MVI69-DFNT = EtherNet/IP for SLC 500
• For SLC 500 Modbus, use MVI69E-MBS
• For SLC 500 Modbus TCP/IP, use MVI69E-MBTCP
• Verify SLC 500 processor slot availability
