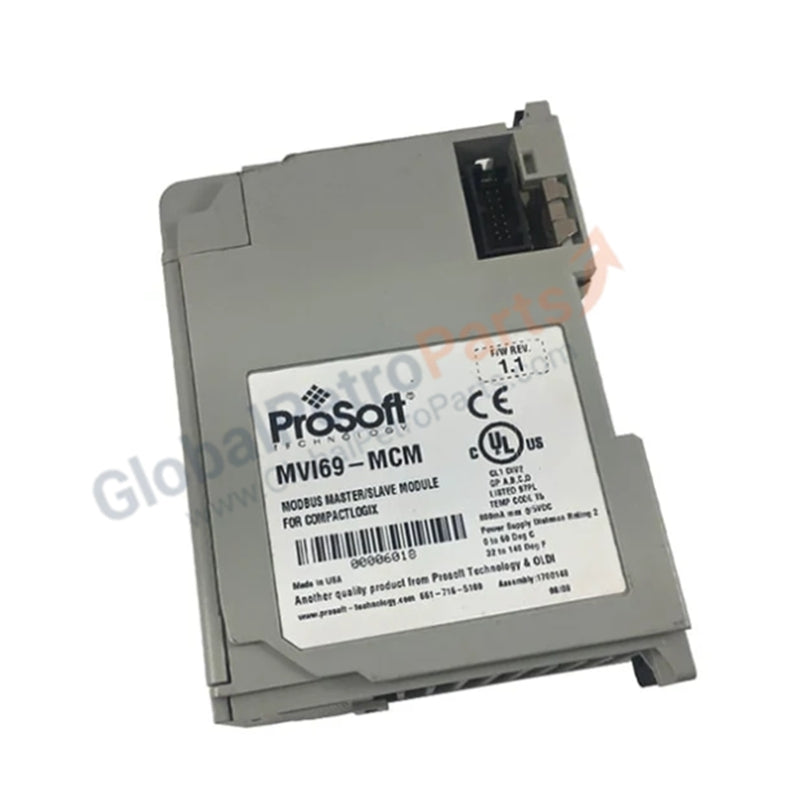

MVI69-MCM | ProSoft Modbus Master/Slave Network Interface Module

Product Description

The MVI69-MCM Modbus Master/Slave Network Interface Module is a versatile communication solution developed by ProSoft Technology for Rockwell Automation’s CompactLogix and MicroLogix controllers. This module enables seamless integration with Modbus-compatible devices, including Modicon PLCs and third-party equipment. Supporting both master and slave configurations, the MVI69-MCM allows controllers to manage multiple devices on the same network, ensuring reliable data exchange and flexible system integration.

Technical Specifications

• Model Number: MVI69-MCM

• Manufacturer: ProSoft Technology (Rockwell Automation / Allen-Bradley brand)

• Product Type: Modbus Master/Slave Network Interface Module

• Compatibility: CompactLogix and MicroLogix controllers

• Slot Type: Single-slot (1769 standard module)

• Programming Support: Ladder Logic

• Baud Rate Range: 110 to 115K baud

• Node Address Range: 1–247

• Current Load: Max 800 mA at 5 VDC

• Dimensions: Standard 1769 single-slot module size

• Net Weight: 0.68 lbs (approx. 0.31 kg)

Key Features

• Supports both Modbus master and slave configurations

• Enables communication with Modicon PLCs and third-party Modbus devices

• Compact single-slot design for easy installation

• Reliable performance with wide baud rate support

• Flexible addressing for up to 247 nodes

Application Scenarios

• Integration of CompactLogix/MicroLogix controllers with Modbus field devices

• Industrial automation systems requiring Modbus protocol communication

• Legacy system upgrades where Modbus compatibility is essential

FAQ

Q: Can the MVI69-MCM act as both a master and a slave?  A: Yes, it supports both configurations for flexible communication.

Q: What controllers are compatible with the MVI69-MCM?  A: It works with Rockwell Automation’s CompactLogix and MicroLogix controllers.

Q: What is the maximum baud rate supported?  A: The module supports baud rates up to 115K.
