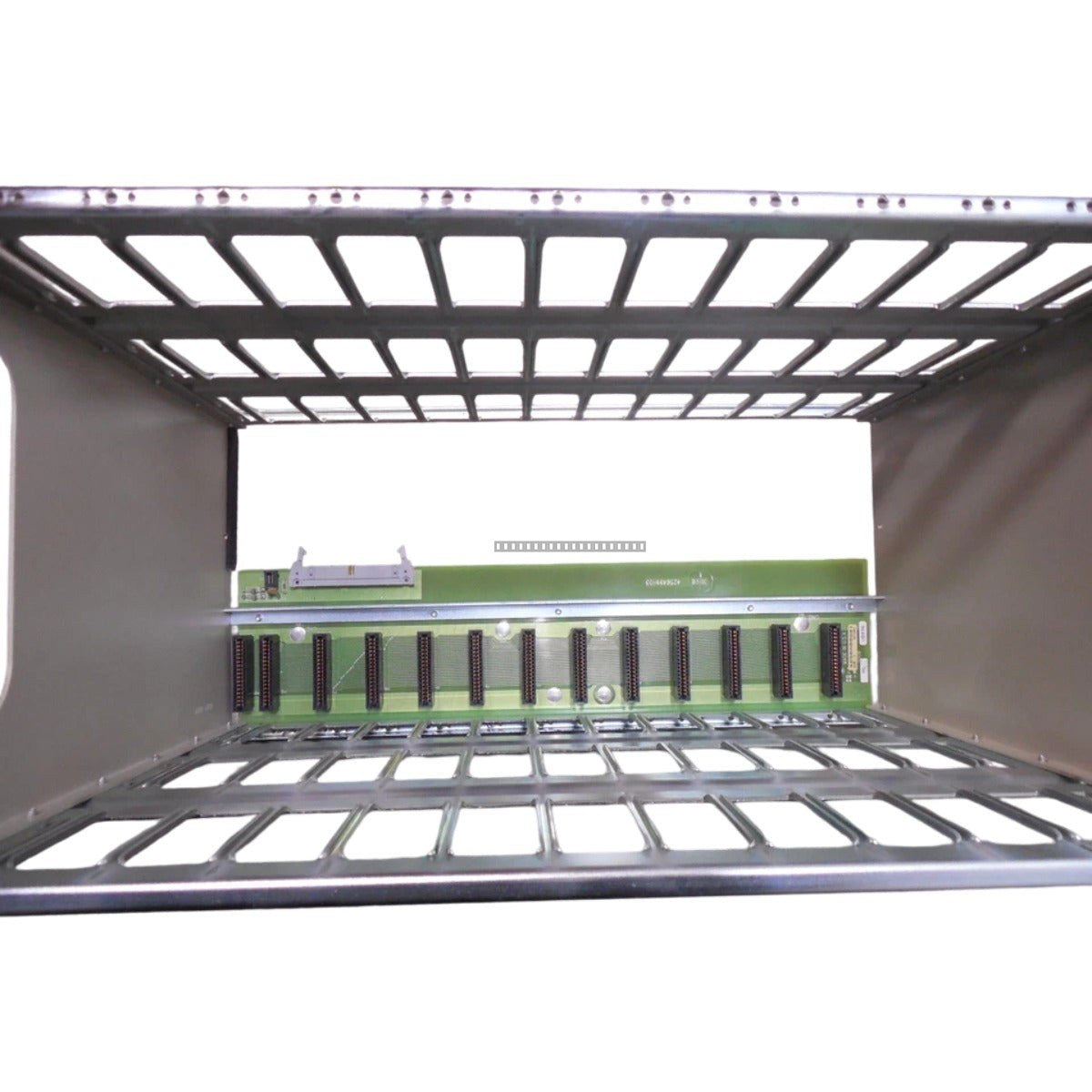

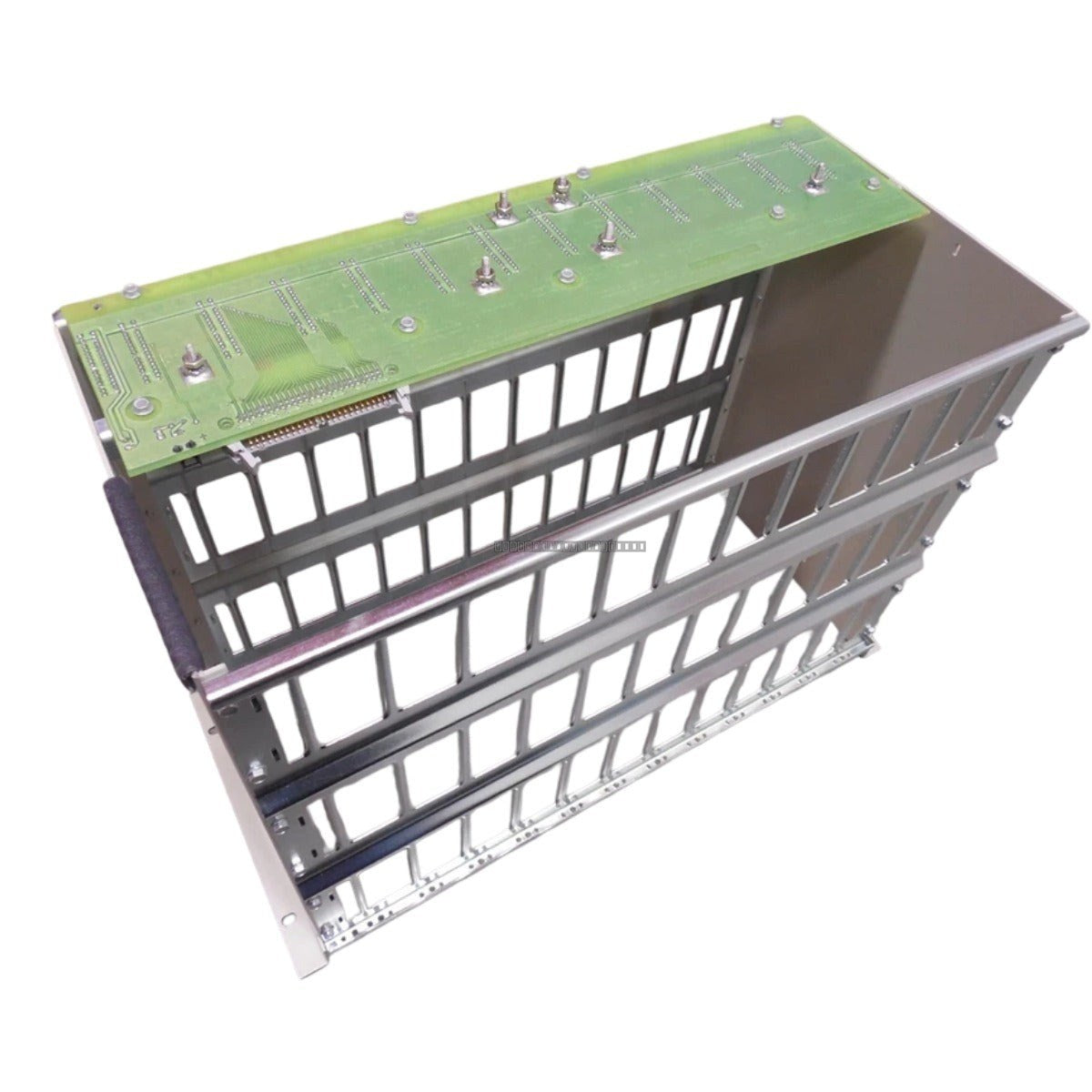

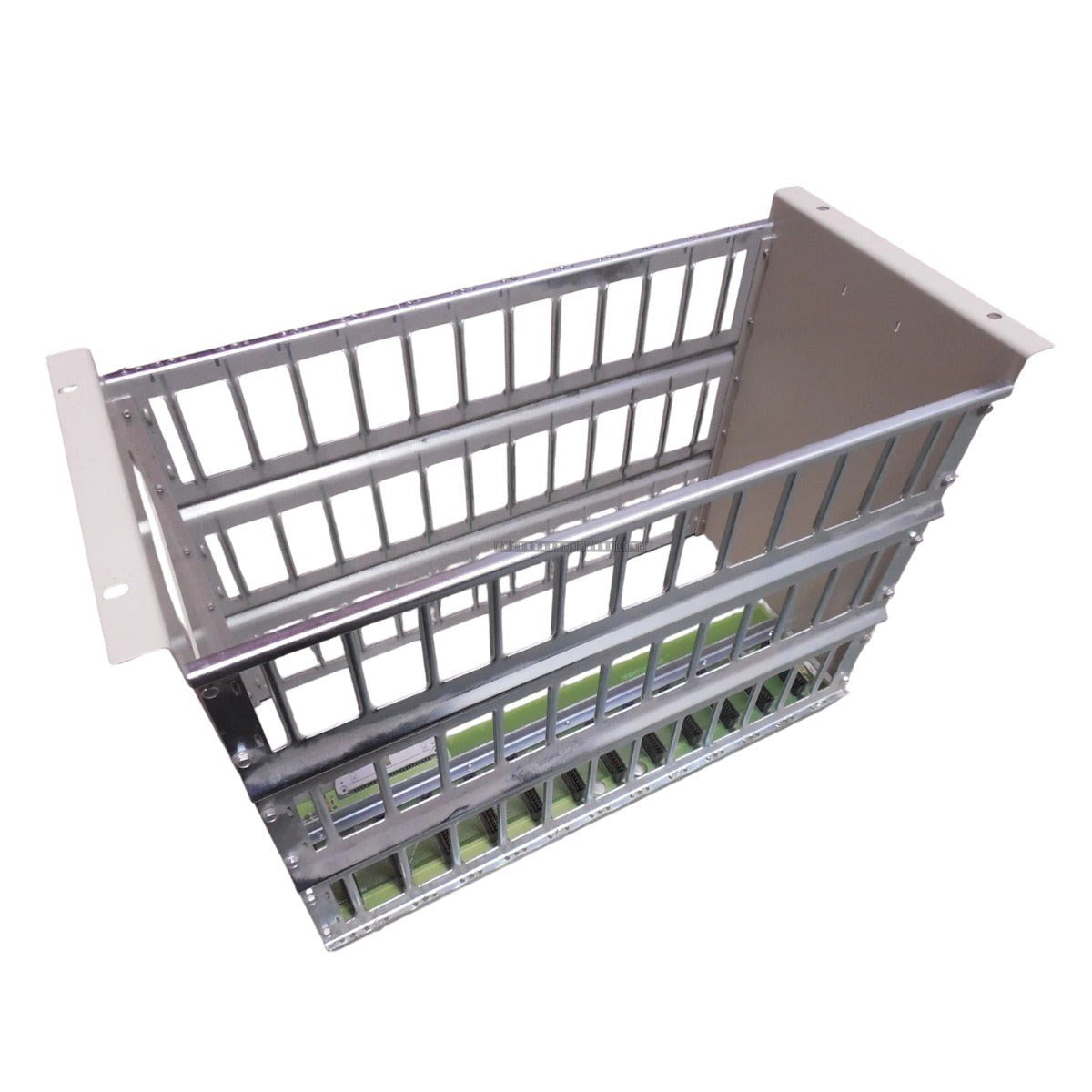

Emerson Ovation 1D54557G07 Q-Crate Slot Rack Chassis

Description

The Emerson Ovation 1D54557G07 is a foundational Q-Crate assembly, functioning as the primary slot rack chassis for Ovation distributed control system (DCS) components. Engineered for robust industrial deployment, this chassis provides the mechanical and electrical backbone for high-density I/O configurations in power generation, chemical processing, and large-scale manufacturing facilities. By offering a standardized modular interface, the 1D54557G07 simplifies the deployment and replacement of control modules, effectively minimizing downtime during system maintenance or hardware upgrades. The rigid backplane design ensures consistent signal integrity and secure physical mounting for all inserted modules, contributing to the overall stability of mission-critical control loops.

Features

• Modular architecture supporting high-speed backplane communication protocols within the Ovation ecosystem.
• Integrated slots with advanced locking mechanisms to prevent mechanical stress on electrical contacts.
• Internal circuitry designed for efficient power distribution and reliable data bus connectivity.
• Supports redundant configurations to enhance overall system reliability.
• Provides electromagnetic interference (EMI) protection and thermal dissipation management for installed modules.
• Standard 19-inch rack-mount form factor for simplified integration into existing control cabinets.

Applications

This chassis is designed for use in mission-critical industrial environments, including power generation plants, chemical processing facilities, and large-scale manufacturing automation systems where high-density I/O and reliable backplane communication are required.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted in a clean, dry, and vibration-dampened environment.
• Verify that the 19-inch rack rails are properly grounded to the cabinet frame to maintain EMI shielding integrity.
• Always power down the system before inserting or removing any I/O modules from the chassis to prevent electrical arcing or damage to the backplane connectors.
• Ensure adequate clearance above and below the chassis to allow for proper thermal dissipation and airflow.
• Use ESD-safe handling procedures when installing or servicing modules within the rack.

FAQ

Is this chassis compatible with all Ovation I/O modules?
The 1D54557G07 is designed for standard Ovation Q-Crate configurations. Please verify your specific module series compatibility with your system documentation.

Does this unit include the power supply?
This listing is for the rack chassis only. Power supplies and I/O modules are typically ordered separately as part of the system configuration.
